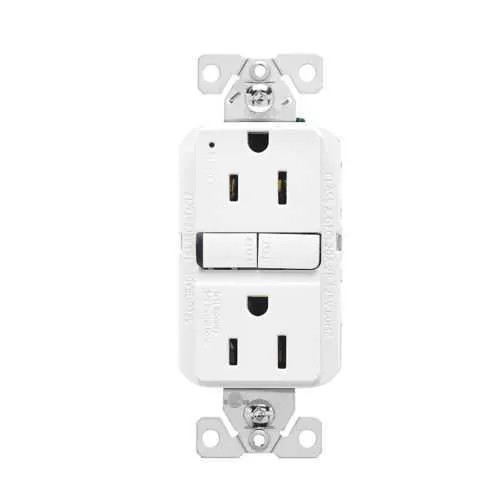

Eaton GF15W GFCI Receptacle - Self-test
Part Number: GF15W
Quick Summary
Eaton slim GFCI receptacle provides ground fault protection for 15A, 125V circuits in commercial and industrial enclosures. Installers often encounter panel crowding and retrofit challenges when using bulky devices that don’t fit slim spaces. cULus Listed and NOM certified, this unit also features a self-test function and a slim profile to ease compliance and routine checks. With back and side wiring, and standard NEMA 5-15R configuration, the GF15W supports quick, reliable installations in constrained panels. This combination reduces field wiring time and maintenance costs while delivering dependable GFCI protection for everyday power applications.
Product Information
Extended Description
GF15W Eaton: Eaton self-test GFCI, 15A, 125V, White, Slim design
Product Name
Eaton slim GFCI receptacle
Catalog Number
GF15W
UPC
032664545306
Product Length/Depth
1.03 in
Product Height
4.19 in
Product Width
1.69 in
Product Weight
3.8 lb
Warranty
Refer to warranty document.
Certifications
cULus Listed NOM
Special features
Slim design
Type
Self-test
Amperage Rating
15A
Voltage rating
125V
Circuit interrupter type
GFCI
Packaging type
ED Box
Wiring method
Back and side wire
Allowable wire size
#14-10 AWG
NEMA configuration
5-15R
Torque rating
16 lbf-in
Color
White
GFCI Cross Reference
GFCI Cross Reference
GFCI Cross Reference
GFCI Cross Reference
GFCI Cross Reference
GFCI Cross Reference
Feature: Slim design enables a compact footprint in tight panel spaces → Business Impact: Freeing up enclosure real estate and simplifying retrofits in existing electrical cabinets → Application: Control panels and wall enclosures where depth is at a premium. Feature: Self-test functionality improves safety compliance → Business Impact: Reduces manual verification tasks and strengthens regulatory readiness → Application: Routine maintenance cycles in facilities with strict safety programs. Feature: 15A, 125V GFCI protection → Business Impact: Consistent protection for general-purpose outlets, minimizing nuisance trips while meeting code requirements → Application: Commercial office, manufacturing floor, and utility rooms. Feature: Back and side wire termination for #14-10 AWG conductors → Business Impact: Flexible installation options that shorten wiring time and improve termination reliability → Application: New installations and panel upgrades in mixed wiring environments. Feature: NEMA 5-15R, White, ED Box packaging → Business Impact: Familiar receptacle configuration with straightforward mounting and packaging suited for standard electrical assemblies → Application: New builds and service upgrades where common receptacles are preferred. Feature: 16 lbf-in torque rating and robust certification → Business Impact: Ensures a secure connection and dependable performance under vibration and thermal cycling → Application: Industrial control panels and high-traffic electrical closets with demanding operating conditions.
Get a Quick Quote for a Eaton GF15W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton GF15W?
Enquire Now
FAQs
GF15W supports back and side wiring for #14-10 AWG conductors with a torque rating of 16 lbf-in. This flexible termination enables secure, code-compliant connections in tight panels and retrofit projects, reducing wire strain and installation time while preserving enclosure integrity in commercial and industrial settings.
GF15W is a 15A, 125V GFCI receptacle with self-test capability. It is cULus Listed and NOM certified, uses a NEMA 5-15R configuration, and ships in an ED Box packaging. It is designed for back or side wiring and supports #14-10 AWG conductors, making it compatible with typical control panels and outlets in industrial environments.
Yes. The GF15W carries cULus Listed NOM certification, is a 15A 125V GFCI receptacle with a self-test feature, and uses a standard NEMA 5-15R configuration. Its slim design and reliable termination methods help facilities meet NEC requirements for branch-circuit protection in commercial enclosures and retrofit projects.
The slim design reduces panel depth and frees up space for other components, improving airflow and reducing heat buildup. This translates to easier installation, faster wiring, and simplified future upgrades in compact control panels and electrical rooms commonly found in manufacturing and process environments.
GF15W includes self-test functionality to verify operation automatically, reducing manual testing needs. Refer to the warranty documentation for scope and coverage, and schedule periodic checks as part of your facilities’ safety program to ensure ongoing ground fault protection in 125V circuits.
