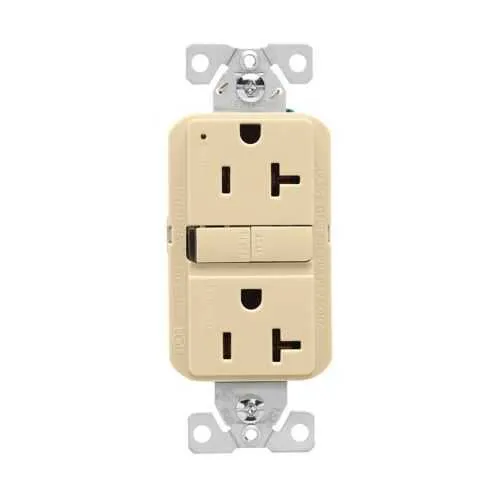

Eaton GF20V-BX-L GFCI - cULus
Part Number: GF20V-BX-L
Quick Summary
The Eaton GF20V-BX-L GFCI provides self-test protection for 125V outlets in commercial and residential wiring. In tight install spaces, a slim form factor minimizes footprint without compromising safety. It carries cULus Listed and NOM certifications to meet North American regulatory requirements. The self-test feature reduces manual verification and helps prevent undetected faults, lowering maintenance costs. Designed for 20A circuits with back-and-side wiring and NEMA 5-20R configurations, it supports quick, code-compliant installations in retail, office, and service environments while delivering reliable, long-term protection.
Product Information
Extended Description
GF20V-BX-L Eaton: Eaton self-test GFCI, 20A, 125V, Ivory, Slim design, Retail box
Product Name
Eaton slim GFCI receptacle
Catalog Number
GF20V-BX-L
UPC
032664007903
Product Length/Depth
1.03 in
Product Height
4.19 in
Product Width
1.69 in
Product Weight
3.8 lb
Warranty
Refer to warranty document.
Certifications
cULus Listed NOM
Special features
Slim design
Type
Self-test
Amperage Rating
20A
Voltage rating
125V
Circuit interrupter type
GFCI
Packaging type
Retail Box
Features
FedSpec Certified
Wiring method
Back and side wire
Allowable wire size
#14-10 AWG
NEMA configuration
5-20R
Torque rating
16 lbf-in
Color
Ivory
Tamper resistant slim GFCI receptacles spec sheet
Tamper resistant slim GFCI receptacles spec sheet
Tamper resistant slim GFCI receptacles spec sheet
Tamper resistant slim GFCI receptacles spec sheet
Tamper resistant slim GFCI receptacles spec sheet
Tamper resistant slim GFCI receptacles spec sheet
Slim design enables installation in shallow boxes and narrow enclosures, delivering a smaller footprint with no compromise on protection. This supports higher installation density, faster wiring in multi-gang boxes, and easier retrofits in offices and labs. The self-test GFCI continuously verifies protection without requiring manual checks, reducing service calls and improving safety compliance across facilities. With a 20A, 125V rating and NEMA 5-20R configuration, it delivers reliable circuit protection for everyday outlets in commercial spaces and light industrial environments, helping projects meet code requirements on time. Back- and side-wire termination accepts #14-10 AWG conductors, offering installation flexibility and compatibility with common wiring practices while ensuring a secure, consistent connection. FedSpec Certified and ivory color options align with procurement standards and on-site aesthetics, and a 16 lbf-in torque specification guarantees proper terminations, minimizing field rework. The Retail Box packaging supports retail sales channels and simplifies stocking in distributors and end-user facilities, further reducing procurement cycles and inventory complexity.
Get a Quick Quote for a Eaton GF20V-BX-L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton GF20V-BX-L?
Enquire Now
FAQs
The GF20V-BX-L supports back- and side-wire termination for conductors sized #14-10 AWG, allowing flexible in-wall or box-mounted installations. Termination torque is specified at 16 lbf-in, ensuring a secure, code-compliant connection with minimal risk of loose terminations. For best results, torque to the manufacturer’s specification during final wiring checks.
Yes. The GF20V-BX-L is a self-test GFCI receptacle designed for NEMA 5-20R configurations, making it suitable for 20A, 125V circuits common in commercial and residential spaces. This compatibility supports straightforward replacements in standard outlets and enables consistent performance across office, retail, and light industrial environments.
The device is cULus Listed and NOM certified, indicating compliance with North American safety and electrical standards. This dual certification helps meet regulatory requirements for construction, retrofit projects, and facility maintenance, reducing risk during inspections and supporting qualification for code-compliant installations across diverse property types.
The self-test function continuously verifies ground-fault protection without manual intervention, reducing the likelihood of undetected faults that could lead to shock hazards. This proactive safety check translates to fewer unexpected nuisance trips, improved uptime for critical outlets, and lower maintenance labor costs for facilities teams.
Dimensions are 1.03 in depth (length), 4.19 in height, and 1.69 in width, with a unit weight of approximately 3.8 lb. It ships in a Retail Box packaging, facilitating display and stocking for retail channels and simplifying procurement for contractors and installers planning quick-turn projects.
