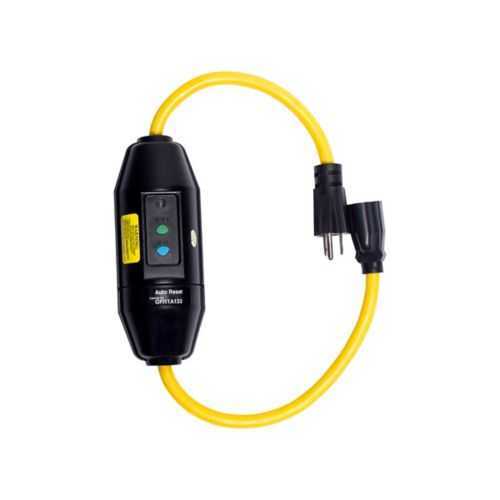

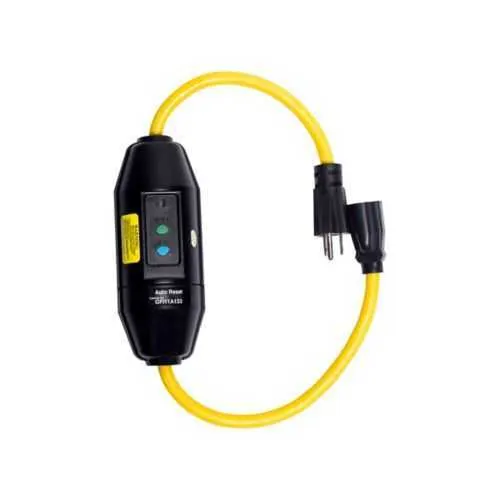

Eaton GFI11A155 Portable GFCI - Watertight NEC Compliant
Part Number: GFI11A155
Quick Summary
The Eaton GFI11A155 portable GFCI protects personnel and equipment by quickly interrupting power in damp or outdoor work areas. On projects with water exposure, nuisance trips or noncompliant outlets can stall timelines; this GFCI reduces such downtime. It carries NEC compliance, a NEMA 4X watertight enclosure, and automatic reset. For engineers and procurement teams, the durable construction and quick reset translate to fewer field calls and safer, compliant power on site. This model offers a 12 AWG cord and 2 ft length, enabling flexible deployment, while the polycarbonate housing provides impact resistance and lightweight handling for handheld use. These features support rapid commissioning and ongoing reliability in challenging environments.
Product Information
Extended Description
GFI11A155 Eaton: Eaton portable GFCI, Watertight, 15A, #12 AWG, 2' (0.61m) cord length, Polycarbonate, 5-15, Straight blade plug type, Automatic reset, 120V, 4X 669200
Product Name
Eaton portable GFCI
Catalog Number
GFI11A155
UPC
032664669200
Product Length/Depth
3 ft
Product Height
2.73 in
Product Width
1.74 in
Product Weight
0.38 lb
Compliances
NEC Compliant
Special features
Watertight
Amperage Rating
15A
Circuit interrupter type
GFCI
Cord gauge
#12 AWG
Cord length
2' (0.61m)
Material
Polycarbonate
NEMA configuration
5-15
Plug type
Straight blade
Voltage rating
120 V
Reset type
Automatic
NEMA Rating
4X
Feature → Business Impact → Application: Portable protection with a 15A, 120V rating ensures reliable safety across job sites, reducing risk of electrical shock and downtime. This translates to improved worker safety, easier regulatory compliance, and fewer incident-driven delays on outdoor construction and maintenance projects. Feature: Watertight polycarbonate enclosure. Benefit: Enhances durability against rain, washdowns, and rough handling, lowering replacement costs and enabling continuous operation on outdoor sites. Application: Outdoor events, maintenance yards, and field service. Feature: Automatic reset. Impact: Quick re-energization after a fault speeds project progress and minimizes manual resets. Application: Temporary power distribution for tools and lighting in wet environments. Feature: NEMA 4X, NEC Compliant. Impact: Provides robust protection against dust and water ingress while meeting safety standards. Application: Industrial and construction settings requiring compliant, rugged portable outlets.
Get a Quick Quote for a Eaton GFI11A155
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton GFI11A155?
Enquire Now
FAQs
To install, connect the 2 ft cord with #12 AWG conductors to a 120 V source using a standard NEMA 5-15 receptacle. Ensure the unit is mounted in a protected, accessible location, keep away from direct immersion, and verify the automatic reset function after a fault. Always test with a known-good load to confirm operation.
Verify the 15A amperage rating, 120 V voltage, and 2 ft cord length with #12 AWG wiring. Ensure the NEMA 5-15 straight-blade plug is compatible with your outlet, and confirm automatic reset and NEC compliance. The unit is rated for outdoor/wet environments with a 4X NEMA enclosure.
Yes. The GFI11A155 is designed for outdoor and wet-area applications, featuring a watertight polycarbonate housing and a NEMA 4X enclosure. It is NEC compliant, providing reliable protection against ground faults in rain, splashes, or washdown conditions on construction sites and outdoor events.
The unit is NEC compliant and housed in a NEMA 4X enclosure, offering robust protection against environmental ingress. These certifications mean safer operation, easier regulatory alignment, and reduced risk of equipment damage or electrical shock in challenging environments typical of job sites and industrial settings.
Routinely inspect the cord and plug for wear, verify the automatic reset function after faults, and test with a known load to confirm protection remains active. The durable polycarbonate housing and watertight design reduce replacement costs, while fast fault re-energization minimizes downtime and supports a lower total cost of ownership.
