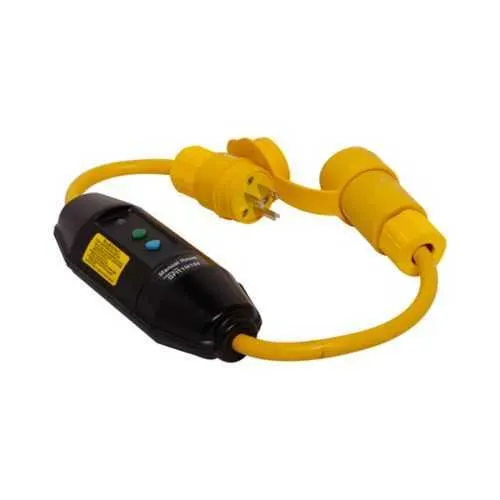

Eaton GFI11M255 GFCI Portable Watertight
Part Number: GFI11M255
Quick Summary
GFCI protection is built into the Eaton GFI11M255 portable unit to safeguard personnel and equipment in wet work sites. On temporary outdoor projects, moisture intrusion and nuisance trips can slow progress and drive up costs. Designed for rugged field use, it offers NEC compliance, a NEMA 4X watertight enclosure, and a durable polycarbonate body. With 15A, 120V performance and a straight-blade 5-15 plug, it integrates quickly with standard power tools and extension cords. This combination delivers safer temporary power, reduces rework, and supports outdoor electrical protection for maintenance crews and construction teams.
Product Information
Extended Description
GFI11M255 Eaton: Eaton portable GFCI, Watertight, 15A, #12 AWG, 6' (1.83m) cord length, Polycarbonate, 5-15, Straight blade plug type, Manual reset, 120V, 4X 669361
Product Name
Eaton portable GFCI
Catalog Number
GFI11M255
UPC
032664669361
Product Length/Depth
7 ft
Product Height
1.9 in
Product Width
1.72 in
Product Weight
0.38 lb
Compliances
NEC Compliant
Special features
Watertight
Amperage Rating
15A
Circuit interrupter type
GFCI
Cord gauge
#12 AWG
Cord length
6' (1.83m)
Material
Polycarbonate
NEMA configuration
5-15
Plug type
Straight blade
Voltage rating
120 V
Reset type
Manual
NEMA Rating
4X
Feature: GFCI protection at 15A and 120V provides reliable ground-fault protection. Business Impact: reduces electrical shock risk for workers handling wet equipment and cords. Application: ideal for construction sites, maintenance, and outdoor events where temporary power is required. The unit’s compact form enables quick deployment without complex setup. Feature: Watertight NEMA 4X polycarbonate enclosure guards internal components against moisture and corrosion. Business Impact: minimizes service interruptions and extends life in washdown environments. Application: suitable for wet job sites, outdoor installations, and industrial maintenance. Feature: Cord gauge #12 AWG with a 6' (1.83m) cord length and a 5-15 straight blade plug. Business Impact: ensures compatibility with standard outlets and reduces the need for adapters, improving site readiness. Application: portable GFCI outlets for power tools and temporary circuits. Feature: NEC compliance and rugged construction provide regulatory alignment and dependable performance. Business Impact: simplifies inspections and lowers risk of non-compliance. Application: job-site power distribution in construction and industrial settings. Feature: Manual reset offers controlled re-energization after a fault. Business Impact: prevents repeated trips and speeds safe restart. Application: critical in high-traffic work zones and maintenance tasks requiring immediate resume of power.
Get a Quick Quote for a Eaton GFI11M255
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton GFI11M255?
Enquire Now
FAQs
Install begins with ensuring the power source is de-energized. Connect the 6' cord (#12 AWG) to a standard 120V supply via the 5-15 straight blade plug, then plug the receiver into the tool or outlet. After installation, press the reset button to energize and test the outlet under load. Always verify NEC compliance for outdoor use with wet conditions.
Yes. The unit uses a standard 5-15R straight blade receptacle and #12 AWG cord, designed for common extension cords and portable tools. Its 6' cord length provides flexibility on cluttered job sites, while the 120V, 15A rating covers a wide range of power tools and temporary circuits without adapters.
Its watertight polycarbonate enclosure provides a durable, corrosion-resistant barrier against moisture and washdown exposure. The device carries NEC compliance and a NEMA 4X rating, translating to reliable protection in outdoor or damp settings and reduced risk of electrical shock during rainfall or spray-down cleaning.
The GFI11M255 is NEC compliant, making it suitable for construction sites, maintenance yards, and outdoor event setups where portable electrical protection is mandated. Its GFCI interlock and manual reset ensure safe re-energization after an earth-fault, aligning with typical regulatory requirements for temporary power distribution.
Maintenance is minimal: regularly inspect the enclosure for cracks, ensure the reset function operates, and test the protection during start-up. The ROI comes from reduced downtime, safer work conditions, and faster restart after trips, which translates to fewer delays and safer, more compliant temporary power on site.
