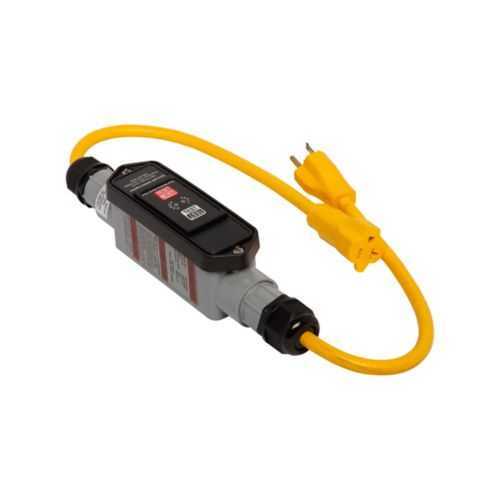

Eaton GFI12A155 Portable GFCI - NEMA 4X Watertight
Part Number: GFI12A155
Quick Summary
Eaton portable GFCI protects personnel and tools by delivering reliable ground-fault protection on outdoor job sites. But water, dust, and rough handling can trigger nuisance trips and downtime, complicating maintenance schedules. This unit is NEC compliant and features a NEMA 4X watertight enclosure with automatic reset, enabling quick re-energization after a fault. For facilities teams and field contractors, it delivers safer power distribution without sacrificing uptime or safety. The combination of rugged housing, compact cord length, and standard 5-20 configuration supports scalable outdoor power solutions while reducing tool downtime and compliance risk.
Product Information
Extended Description
GFI12A155 Eaton: Eaton portable GFCI, Watertight, 20A, #12 AWG, 2' (0.61m) cord length, Polycarbonate, 5-20, Straight blade plug type, Automatic reset, 120V, 4X 669460
Product Name
Eaton portable GFCI
Catalog Number
GFI12A155
UPC
032664669460
Product Length/Depth
4 ft
Product Height
2.5 in
Product Width
2.5 in
Product Weight
0.38 lb
Compliances
NEC Compliant
Special features
Watertight
Amperage Rating
20A
Circuit interrupter type
GFCI
Cord gauge
#12 AWG
Cord length
2' (0.61m)
Material
Polycarbonate
NEMA configuration
5-20
NEMA type
NEMA 4X
Plug type
Straight blade
Voltage rating
120 V
Reset type
Automatic
NEMA Rating
4X
Watertight polycarbonate enclosure provides dependable protection in wet environments, reducing corrosion and water intrusion while safeguarding operators and equipment. This directly improves uptime and extends the life of portable power equipment used on construction, maintenance, and industrial sites. The GFCI feature with automatic reset minimizes manual intervention after a fault, cutting downtime and enabling rapid re-energization for continuous workflow. Compatibility with a 120 V, 20 A circuit and a 5-20NEMA configuration allows easy integration with common job-site outlets and extension cords, streamlining temporary power distribution without compromising safety. The 2' #12 AWG cord offers flexible reach and reliable current handling, reducing trip hazards and organizational clutter. Built to NEC standards and rated NEMA 4X, the unit withstands moisture, dust, and wash-downs typical of outdoor service operations. The polycarbonate housing combines impact resistance with light weight, supporting tool fleets, rental inventories, and safety programs.
Get a Quick Quote for a Eaton GFI12A155
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton GFI12A155?
Enquire Now
FAQs
The GFI12A155 is designed for 120 V, 20 A circuits and uses a 5-20 configuration with a straight blade plug. It includes a 2 ft cord of #12 AWG and a NEMA 5-20R receptacle. Install on a suitable outdoor-rated outlet, ensure proper strain relief, and verify NEC compliance to maintain safe operation in job-site and maintenance environments.
The unit is a ground-fault circuit interrupter with automatic reset. It trips when a fault current is detected and automatically re-energizes once the fault condition clears, reducing operator intervention and downtime on active work sites while maintaining continuous protection for personnel and equipment.
Yes. It features a NEMA 4X watertight enclosure and rugged polycarbonate housing, designed to withstand moisture and wash-downs common on outdoor construction, maintenance yards, and industrial sites, ensuring reliable protection for tools and operators in challenging conditions.
The GFI12A155 is NEC compliant and rated for NEMA 4X protection, providing dependable performance in wet or dusty outdoor environments. Its 5-20 configuration and straight blade plug support compatibility with standard industrial outlets, aligning with common regulatory and safety expectations on job sites.
Durable polycarbonate housing resists impact and exposure, reducing replacement costs. The automatic reset feature minimizes manual corrective actions after faults, enhancing uptime. Compact cord length and standard wiring simplify fleet logistics, spare-part planning, and routine inspections, delivering long-term safety, regulatory compliance, and lower total cost of ownership for rental fleets and safety programs.
