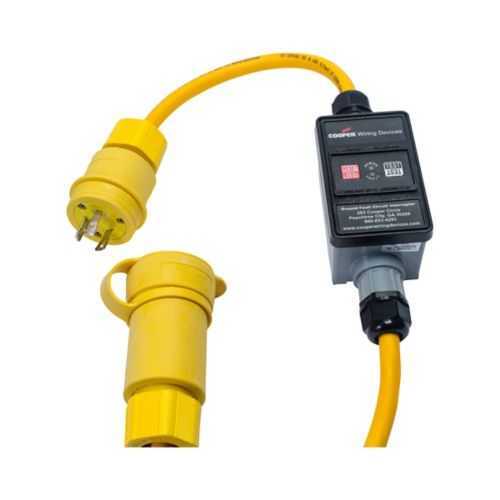

Eaton GFI13A466 Portable GFCI - NEMA 4X Watertight
Part Number: GFI13A466
Quick Summary
Eaton GFI13A466 portable GFCI provides reliable ground-fault protection for on-site power in construction, outdoor events, and remote job sites. This product addresses the common pain point of water, dust, and cord wear threatening electric safety and uptime. With NEC compliance, a NEMA 4X watertight rating, and an automatic reset, it reduces the risk of electrical shocks and nuisance trips in harsh environments. The 25 ft cord with #12 AWG conductors supports flexible layouts, while the locking L5-30 plug ensures a secure connection in busy work zones. For procurement teams, this unit combines safety, ease of deployment, and predictable maintenance costs, supporting faster job starts and improved uptime.
Product Information
Extended Description
GFI13A466 Eaton: Eaton portable GFCI, Watertight, 30A, #12 AWG, 25' (7.62m) cord length, Polycarbonate, L5-30, Locking plug type, Automatic reset, 120V, 4X 669774
Product Name
Eaton portable GFCI
Catalog Number
GFI13A466
UPC
032664669774
Product Length/Depth
26 ft
Product Height
2.8 in
Product Width
2.8 in
Product Weight
0.38 lb
Compliances
NEC Compliant
Special features
Watertight
Amperage Rating
30A
Circuit interrupter type
GFCI
Cord gauge
#12 AWG
Cord length
25' (7.62m)
Material
Polycarbonate
NEMA configuration
L5-30
NEMA type
NEMA 4X
Plug type
Locking
Voltage rating
120 V
Reset type
Automatic
NEMA Rating
4X
Feature: 30A, 120V portable GFCI with a 25 ft #12 AWG cord and L5-30 locking plug. Business Impact: simplifies setup and ensures a secure, code-compliant connection, minimizing weather-related outages. Application: ideal for outdoor construction zones, temporary power at outdoor events, and remote maintenance sites. Feature: NEMA 4X watertight polycarbonate housing with automatic reset. Business Impact: protects against rain, dust, and splashes, reducing nuisance trips and extending product life. Application: wet or dusty environments where reliable protection is critical, such as outdoor sites and service yards. Feature: NEC compliance and rugged construction. Business Impact: aligns with safety programs and procurement specifications, lowering risk and audit findings. Application: industrial and commercial projects requiring verifiable safety standards. Feature: 25 ft cord with #12 AWG conductors and a locking plug for secure, flexible layouts. Business Impact: supports longer cable runs without voltage drop concerns and reduces accidental unplugging. Application: portable power distribution on job sites with limited receptacle availability. Feature: Compact footprint and light weight. Business Impact: easy transport and minimal space impact in crowded tool cribs or service vans. Application: field service, maintenance rounds, and event setups where space is at a premium.
Get a Quick Quote for a Eaton GFI13A466
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton GFI13A466?
Enquire Now
FAQs
Install is quick and tool-free: simply plug the GFI13A466 into a compatible L5-30 receptacle using the locking cord, then position the unit in a clean, dry area. The 25' cord and #12 AWG conductors support flexible layouts, and the NEMA 4X watertight housing protects against rain and dust. Always verify NEC compliance and test the unit after setup.
Key specs include a 30A amperage rating, 120V operating voltage, a 25 ft cord with #12 AWG conductors, an L5-30 locking plug, and a NEMA 4X watertight polycarbonate enclosure. It features automatic reset and NEC compliance, with a compact footprint (2.8 in wide, 2.8 in high) and light weight (0.38 lb) for easy transport.
Yes. The unit is designed for harsh environments with a NEMA 4X watertight housing and polycarbonate construction, providing protection against water, dust, and other contaminants. Its automatic reset feature helps minimize downtime after a fault, making it well-suited for outdoor construction, maintenance yards, and event venues.
The GFI13A466 is NEC compliant and is rated as NEMA 4X, providing a robust, weather-resistant protection level. The combination of a locking L5-30 plug, 120V operation, and watertight enclosure aligns with common utility and contractor safety requirements for portable power sources in outdoor or demanding environments.
Maintenance is minimal: inspect the cord, plug, and enclosure for wear, ensure seals remain intact, and test the GFCI functionality regularly. ROI comes from reduced downtime, safer temporary power deployments, and fewer trips due to nuisance faults. Its lightweight, portable design accelerates setup, improving job site productivity and compliance adherence.
