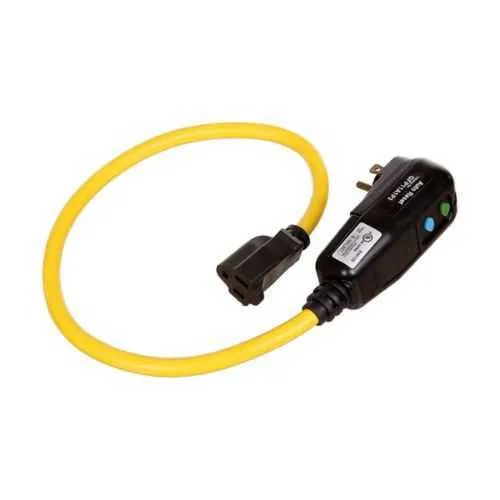

Eaton GFP11A4P3 Portable GFCI - Watertight
Part Number: GFP11A4P3
Quick Summary
Eaton GFP11A4P3 portable GFCI delivers reliable ground-fault protection for job-site power outlets. On busy sites with moisture and hard-to-reach outlets, nuisance trips can derail work and create safety gaps. UL Listed certification supports safety, while the watertight 3R enclosure protects against rain, dust, and corrosion for outdoor environments. Designed for temporary power solutions, this unit combines simple plug-in deployment with robust protection, reducing downtime and improving reporting. As a portable outlet protection option, it supports construction, maintenance, and events by delivering dependable, compliant power quickly and safely.
Product Information
Extended Description
GFP11A4P3 Eaton: Eaton portable GFCI, Watertight, 15A, #12 AWG, 25' (7.62m) cord length, Polycarbonate, 5-15, 3R, Single tap plug type, Automatic reset, 120V 670367
Product Name
Eaton portable GFCI
Catalog Number
GFP11A4P3
UPC
032664670367
Product Length/Depth
7 ft
Product Height
2.73 in
Product Width
1.74 in
Product Weight
0.38 lb
Certifications
UL Listed
Special features
Watertight
Amperage Rating
15A
Circuit interrupter type
GFCI
Cord gauge
#12 AWG
Cord length
25' (7.62m)
Material
Polycarbonate
NEMA configuration
5-15
NEMA type
3R
Plug type
Single tap
Voltage rating
120 V
Reset type
Automatic
Feature: 15A, 120V GFCI interrupter. Business Impact: Provides immediate protection against ground faults, enhancing worker safety and helping meet electrical codes on site. Application: Construction, maintenance, and outdoor events requiring reliable 120V power. The GFP11A4P3 reduces nuisance trips and unplanned outages, enabling crews to stay productive with compliant, site-ready protection. Feature: 25' (7.62 m) cord with #12 AWG conductors. Business Impact: Extends reach without additional adapters, cutting setup time and trip hazards. Application: Temporary power runs across uneven ground or between equipment clusters, improving efficiency and reducing cable clutter. Feature: Polycarbonate enclosure, NEMA 3R configuration, Single tap plug type. Business Impact: Weather-resistant housing that resists impact and corrosion, minimizing maintenance and replacement costs. Application: Outdoor or damp environments where weatherproof protection is essential. Feature: NEMA configuration 5-15 and 3R enclosure. Business Impact: Broad compatibility with standard outlets and rugged outdoor protection, supporting quick integration into existing site power plans. Application: Portable outlets on job sites, service calls, and field installations. Feature: Automatic reset and UL Listed certification. Business Impact: Faster resume of power after fault, with validated safety standards to support procurement and compliance. Application: Routine site power restoration after tripping events, reducing downtime and speeding project progress.
Get a Quick Quote for a Eaton GFP11A4P3
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton GFP11A4P3?
Enquire Now
FAQs
Begin with a power-off condition and inspect the cord and enclosure for damage. Plug the GFP11A4P3 into a standard 5-15R outlet, then connect the load to the single-tap receptacle. After wiring, test the unit by pressing the reset and simulating a ground-fault to confirm the GFCI trips and resets correctly. Ensure the area remains dry during testing.
GFP11A4P3 provides 15A current rating, 120V voltage, a 25' cord length with #12 AWG conductors, and a 5-15 receptacle. The enclosure is NEMA 3R rated and watertight, constructed from polycarbonate, and features automatic reset. The unit is UL Listed, with a 3R enclosure suitable for outdoor use.
Yes. The GFP11A4P3 uses a 5-15 receptacle configuration and a 3R weather-resistant enclosure, making it suitable for outdoor and damp environments. Its UL Listed safety certification further supports outdoor deployments, while the 25' cord provides flexible reach for temporary power layouts on construction sites and service projects.
The GFP11A4P3 is UL Listed, ensuring that the device meets recognized safety standards for electrical protection equipment. Its 3R NEMA enclosure provides reliable outdoor protection against rain and dust, while the 5-15/NEMA configuration supports compatibility with common portable power outlets used on job sites.
The automatic reset feature minimizes downtime by quickly restoring power after a fault, reducing manual intervention. The watertight, durable polycarbonate enclosure lowers replacement costs in harsh environments, and UL Listed certification supports smoother procurement and compliance, delivering safer, faster site power with less maintenance over the project life cycle.
