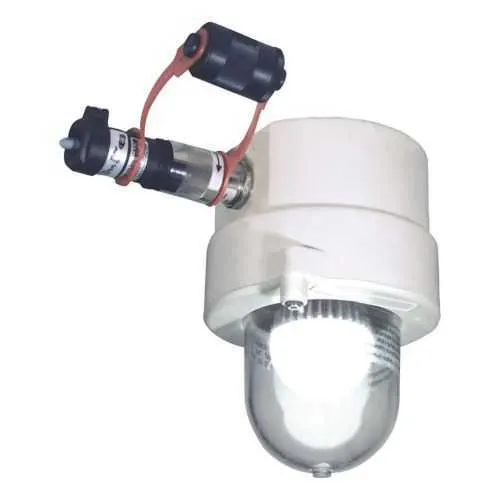

Eaton GHG8712001R0001 LED Emergency Light - IP66/IECEx ATEX
Part Number: GHG8712001R0001
Quick Summary
Eaton's GHG8712001R0001 LED emergency light provides reliable emergency illumination for hazardous industrial spaces. In demanding environments, traditional lighting often fails during outages or cannot withstand chemical exposure and vibration. Certified for IECEx/ATEX and IP66 protection, it offers Zone 1/2 and Zone 21/22 ratings, ensuring safe operation in explosive atmospheres. This LED fixture minimizes maintenance costs while maximizing uptime. Designed for retrofit and new installations, it supports 220-240 Vac and 195-240 Vdc supplies and includes a monitoring module and a rugged GRP housing. With a compact footprint and a 600-lumen output, it delivers consistent visibility across escape routes and work areas, supporting compliance and safer production floors.
Product Information
Extended Description
GHG8712001R0001 Eaton: Eaton Crouse-Hinds series CEAG dKLK 23 LED emergency light fixture, 76 mA, 50-60 Hz, Clear, 600 lumens, GRP, Monitoring module, polycarb cover, 1 x eXlink coupler 2-pole + PE for cable diameter 7.5-11 mm, 220-240 Vac, 195-240 Vdc
Product Name
Eaton's Crouse-Hinds series CEAG dKLK 23 LED emergency light fixture
Catalog Number
GHG8712001R0001
EAN
4250217404511
Product Length/Depth
164.5 mm
Product Height
189 mm
Product Width
128 mm
Product Weight
1.7 kg
Area classification
Hazardous/Classified Locations
Standards type
IEC IECEx/ATEX
IECEx/ATEX hazardous rating
Zone 2 Zone 1 Zone 21 Zone 22
Ingress protection (IP) ratings
IP66
Lamp type
LED
Voltage rating
220-240 Vac, 195-240 Vdc
Frequency rating
50-60 Hz
Amperage Rating
76 mA
Lumens
600
Material
Glass-fibre reinforced polyester
Letter color
Clear
Special features
Monitoring module, polycarbonate cover
Type
1 x eXlink coupler 2-pole + PE for cable diameter 7.5-11 mm
Crouse-Hinds series CEAG dKLK LED Emergency Light Fixtures catalog page
EC Type Examination Certificate - dKLK LED
EC Type Examination Certificate - dKLK LED
EC Type Examination Certificate - dKLK LED
Operating Instructions - dKLK LED Emergency Light Fixtures
dKLK LED Emergency Light Fixtures photometric files
The GHG8712001R0001 LED emergency light combines high-visibility performance with rugged, industrial-ready construction. Feature → Business Impact → Application: LED technology delivers 600 lumens at a modest 76 mA current draw, reducing energy costs while maintaining bright exit-path illumination in long corridors and workstations. This translates to lower operating expenses and fewer outages during critical moments. The IP66 rating and IECEx/ATEX certifications enable use in hazardous and classified locations, reducing the need for alternative equipment and simplifying procurement for oil, gas, mining, and chemical plants. A monitoring module enhances fault detection and maintenance planning, while the GRP housing and polycarbonate cover resist impact and chemical exposure, extending service life in harsh environments. The 1 x eXlink coupler for 7.5–11 mm cables simplifies installation and future upgrades, supporting both retrofit projects and new builds. Compatibility with 220-240 Vac and 195-240 Vdc supplies provides global deployment flexibility and minimizes regional variant stocking.
Get a Quick Quote for a Eaton GHG8712001R0001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton GHG8712001R0001?
Enquire Now
FAQs
Installation begins with selecting a suitable surface for the GRP housing. The unit uses a 1 x eXlink coupler for 7.5-11 mm cables, simplifying wiring and enabling quick, secure connections. Verify IP66 ingress protection and IECEx/ATEX compliance before energizing. Ensure compatibility with 220-240 Vac or 195-240 Vdc inputs and follow local glanding and termination practices for hazardous environments.
The fixture operates at 220-240 Vac or 195-240 Vdc, with a frequency rating of 50-60 Hz and a current draw of 76 mA. It provides 600 lumens of LED output, ensuring ample visibility for exit routes and work areas. The product is designed for reliable operation under these conditions, minimizing energy use while meeting safety illumination requirements in harsh settings.
Yes. The unit carries IECEx/ATEX certification and Zone 1/2 and Zone 21/22 ratings, alongside IP66 protection. This combination supports use in explosive atmospheres, chemical plants, mining operations, and other hazardous locations where robust, code-compliant emergency lighting is mandatory.
Documentation includes IECEx/ATEX certification PDFs, operating instructions, and the CEAG dKLK catalog page. These materials validate hazardous-location suitability, maintenance guidance, and installation practices. Access to EC Type Examination certificates and photometric data supports project approvals and commissioning in regulated facilities.
The built-in monitoring module enables proactive fault detection and status reporting, reducing unscheduled outages. LED technology offers long life and low maintenance, while the polycarbonate cover and GRP housing resist impacts and chemical exposure. Together, these features improve uptime, simplify service planning, and lower total cost of ownership in demanding industrial environments.
