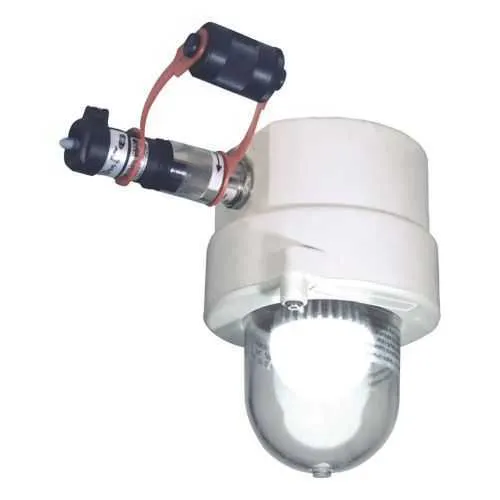

Eaton GHG8714021R0001 LED Emergency Light - IP66
Part Number: GHG8714021R0001
Quick Summary
Eaton's GHG8714021R0001 LED emergency light fixture provides reliable evacuation lighting for hazardous locations. In harsh environments, downtime and non-compliance with hazardous-area standards drive costly outages. It carries IECEx/ATEX certifications and Zone 21/22 ratings with IP66 protection, enabling safe, compliant operation. Designed for easy installation and long life, it integrates with the CEAG dKLK series and 230 V systems, simplifying wiring and maintenance. The combination of a 200 lumen LED source, glass-fibre reinforced polyester housing, and a polycarbonate cover supports resilient performance in demanding facilities while reducing total cost of ownership through fewer replacements and extended service intervals.
Product Information
Extended Description
GHG8714021R0001 Eaton: Eaton Crouse-Hinds series CEAG dKLK 23 LED emergency light fixture, 37 mA, 50-60 Hz, Clear, 200 lumens, Glass-fibre reinforced polyester, Polycarbonate cover, 1 x eXlink coupler 2-pole + PE for cable diameter 7.5-11 mm, 230 Vac
Product Name
Eaton's Crouse-Hinds series CEAG dKLK 23 LED emergency light fixture
Catalog Number
GHG8714021R0001
EAN
4251510794132
Product Length/Depth
164.5 mm
Product Height
189 mm
Product Width
128 mm
Product Weight
1.7 kg
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX IEC
IECEx/ATEX hazardous rating
Zone 22 Zone 1 Zone 21 Zone 2
Ingress protection (IP) ratings
IP66
Lamp type
LED
Voltage rating
230 Vac
Frequency rating
50-60 Hz
Amperage Rating
37 mA
Lumens
200
Material
Glass-fibre reinforced polyester
Letter color
Clear
Special features
Polycarbonate cover
Type
1 x eXlink coupler 2-pole + PE for cable diameter 7.5-11 mm
Crouse-Hinds series CEAG dKLK LED Emergency Light Fixtures catalog page
EU Declaration of Conformity - dKLK LED
EU Declaration of Conformity - dKLK LED
EU Declaration of Conformity - dKLK LED
Operating Instructions - dKLK LED Emergency Light Fixtures
dKLK LED Emergency Light Fixtures photometric files
LED performance is a primary feature, delivering 200 lumens at 230 Vac with a 37 mA draw. Business impact: Low energy consumption reduces running costs in multi-shift operations and supports energy-management initiatives. Application: Suitable for hazard-prone facilities where reliable emergency lighting is required during faults or outages. Material & durability: Glass-fibre reinforced polyester housing and a polycarbonate cover provide rugged protection against dust, moisture, and impact. Business impact: Longer service life lowers maintenance frequency and replacement costs in harsh environments. Application: Ideal for mining, chemical processing, offshore platforms, and other extreme industrial locations. Hazardous location certification: IECEx/ATEX certification with Zone 21/22 and Zone 1/2 ratings and IP66 ingress protection. Business impact: Supports regulatory compliance and minimizes risk in classified locations. Application: Critical for emergency illumination in hazardous zones across oil & gas, chemical, and power generation facilities. Installation efficiency: 1 x eXlink coupler 2-pole + PE for cable diameter 7.5-11 mm enables simple wiring and safe daisy-chaining. Business impact: Reduces field labor and commissioning time, improving project ROI. Application: Retrofit or new-build installations using the CEAG dKLK LED family in hazardous areas. Dimensions & compatibility: 164.5 mm L x 189 mm H x 128 mm W, 1.7 kg, compatible with 230 Vac systems. Business impact: Space-efficient design supports flexible layouts and faster installation. Application: Installation in ceiling or wall-mounted enclosures for industrial plants, warehouses, and offshore facilities.
Get a Quick Quote for a Eaton GHG8714021R0001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton GHG8714021R0001?
Enquire Now
FAQs
Yes. It operates at 230 Vac, 50-60 Hz, drawing 37 mA and delivering 200 lumens. The fixture is designed for CEAG dKLK mounting and uses a 1 x eXlink coupler for straightforward wiring and daisy-chaining, simplifying field installation and retrofits in hazardous environments.
The unit carries IECEx/ATEX certifications with Zone 21/22 and Zone 1/2 ratings and IP66 ingress protection. It is approved for Hazardous/Classified Locations, ensuring compliant operation in diverse hazardous environments across oil, gas, chemical, and mining facilities.
The 200 lm LED with a 37 mA draw delivers bright, reliable emergency lighting while consuming minimal power, reducing energy costs over time. Long LED life minimizes replacement cycles, and the robust housing lowers maintenance expenses in harsh locations, contributing to a lower total cost of ownership for hazardous-area installations.
Retrofits and new builds in Zone 21/22, Zone 1/2, and other hazardous locations benefit most. The 1 x eXlink coupler simplifies field wiring for 7.5-11 mm cables, enables safe daisy-chaining, reduces installation time, and improves fault isolation, contributing to faster project delivery in chemical plants, refineries, and mining facilities.
IP66 provides strong dust-tight protection and high resistance to powerful water jets, suitable for many washdown scenarios. For chemical exposure or ultraviolet conditions, verify the specific environmental conditions and consider additional protective measures or enclosure options as recommended in the EU Declaration of Conformity and installation sheets.
