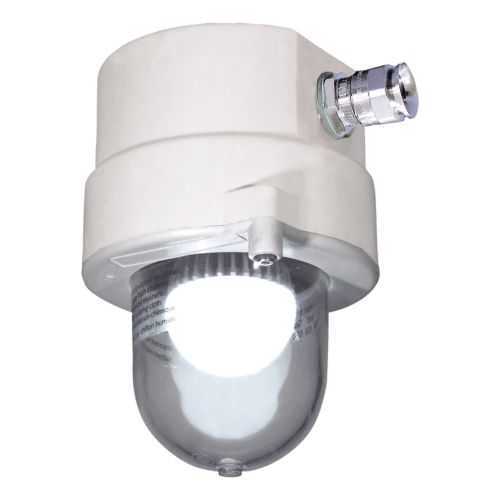

Eaton GHG8714021R0101 LED Emergency Light - IECEx/ATEX
Part Number: GHG8714021R0101
Quick Summary
Eaton GHG8714021R0101 LED emergency light provides reliable illumination for hazardous location facilities, enabling safe egress in industrial plants. Operators often contend with lighting that fails in corrosive or explosive environments, disrupting maintenance windows and safety drills. This fixture carries IECEx/ATEX certification for Zones 1 and 2 as well as 21 and 22, plus IP66 ingress protection, reinforcing compliance and uptime. With 230 VAC operation, 200-lumen output, and a rugged glass-fibre reinforced housing, it delivers dependable performance while reducing lifecycle costs for safety-critical applications. Designed for modular installation with Ex-d cable gland options, it scales across multiple emergency lighting layouts.
Product Information
Extended Description
GHG8714021R0101 Eaton: Eaton Crouse-Hinds series CEAG dKLK 23 LED emergency light fixture, 37 mA, 50-60 Hz, Clear, 200 lumens, Glass-fibre reinforced polyester, Polycarbonate cover, 1 x Ex-d cable gland M20 x 1.5 for diameter 7-12 mm, 230 Vac
Product Name
Eaton's Crouse-Hinds series CEAG dKLK 23 LED emergency light fixture
Catalog Number
GHG8714021R0101
EAN
4250217403439
Product Length/Depth
164.5 mm
Product Height
189 mm
Product Width
128 mm
Product Weight
1.7 kg
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX IEC
IECEx/ATEX hazardous rating
Zone 2 Zone 21 Zone 22 Zone 1
Ingress protection (IP) ratings
IP66
Lamp type
LED
Voltage rating
230 Vac
Frequency rating
50-60 Hz
Amperage Rating
37 mA
Lumens
200
Material
Glass-fibre reinforced polyester
Letter color
Clear
Special features
Polycarbonate cover
Type
1 x Ex-d cable gland M20 x 1.5 for diameter 7-12 mm
Crouse-Hinds series CEAG dKLK LED Emergency Light Fixtures catalog page
EC Type Examination Certificate - dKLK LED
EC Type Examination Certificate - dKLK LED
EC Type Examination Certificate - dKLK LED
Operating Instructions - dKLK LED Emergency Light Fixtures
dKLK LED Emergency Light Fixtures photometric files
LED lamp with 200 lumens and 37 mA at 230 VAC reduces energy consumption while delivering consistent illumination. This translates to lower operating costs and reduced heat in confined hazardous area spaces. It is well-suited for emergency lighting in Zone 1/2 environments. Rugged housing combines glass-fibre reinforced polyester with a polycarbonate cover for impact resistance and chemical tolerance. This design extends service life in wet, dusty, or corrosive settings, reducing replacement cycles and maintenance costs. IECEx/ATEX certification and IP66 protection ensure regulatory compliance and robust protection against dust and water ingress, supporting multi-site installations and risk mitigation in chemical plants, refineries, and wastewater facilities. Ex-d M20 x 1.5 cable gland for 7–12 mm diameter wires enables secure, explosion-protected cabling. Its compact footprint and 164.5 x 189 x 128 mm dimensions support straightforward integration into existing emergency layouts, minimizing retrofit effort and downtime.
Get a Quick Quote for a Eaton GHG8714021R0101
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton GHG8714021R0101?
Enquire Now
FAQs
The GHG8714021R0101 uses a 1 x Ex-d cable gland M20 x 1.5 designed for cable diameters from 7 to 12 mm. When installing in hazardous areas, ensure the gland is properly sealed against dust and moisture and that the cable entries are compatible with your conduit system. Follow standard electrical installation practices for Ex-d equipment and verify proper torque on gland fittings.
Yes. The fixture carries IECEx/ATEX certification and is rated for Zones 1 and 2 as well as Zones 21 and 22, providing safe operation in both gas and dust hazardous locations. For compliance, ensure installation conforms to global and local standards, and use approved cable glands and enclosures to maintain the integrity of the Ex protection.
The light operates at 230 Vac with a frequency range of 50–60 Hz and draws 37 mA, delivering about 200 lumens of LED light. This results in low energy consumption per emergency cycle and cooler operation, contributing to longer luminaire life and lower standby power in hazardous-location installations.
The fixture measures 164.5 mm in length, 189 mm in height, and 128 mm in width, with a weight of 1.7 kg. These compact dimensions support retrofit into existing mounting footprints and simplify layout planning for emergency lighting in constrained hazardous-area spaces.
The GHG8714021R0101 carries IECEx/ATEX certification for hazardous locations and an IP66 ingress protection rating, indicating dust-tight and water jet resistance. These certifications support compliance across multinational sites and enable safe operation in Zones 1, 2, 21, and 22, reducing regulatory risk during audits and safety certifications.
