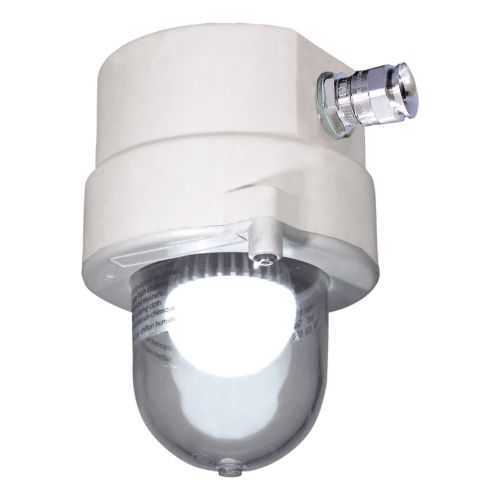

Eaton GHG8714121R0101 LED Emergency Light - IECEx/ATEX
Part Number: GHG8714121R0101
Quick Summary
Eaton GHG8714121R0101 LED emergency light fixture provides reliable illumination for hazardous-location facilities. In environments where a power outage can threaten safety and productivity, peak visibility is non-negotiable. This unit carries IECEx/ATEX certifications and an IP66 rating, ensuring safe operation in Zone 1/2 and Zone 21/22 locations. Its robust GFPR housing and polycarbonate cover withstand harsh plant conditions, while the Ex-d cable gland supports straightforward installation and future upgrades. Designed for industrial safety programs and cross-border projects, this light helps reduce energy use and maintenance costs without compromising compliance or performance.
Product Information
Extended Description
GHG8714121R0101 Eaton: Eaton Crouse-Hinds series CEAG dKLK 23 LED emergency light fixture, 37 mA, 50-60 Hz, Red, 200 lumens, Glass-fibre reinforced polyester, Polycarbonate cover, 1 x Ex-d cable gland M20 x 1.5 for diameter 7-12 mm, 230 Vac
Product Name
Eaton's Crouse-Hinds series CEAG dKLK 23 LED emergency light fixture
Catalog Number
GHG8714121R0101
EAN
4250217403446
Product Length/Depth
164.5 mm
Product Height
189 mm
Product Width
128 mm
Product Weight
1.7 kg
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX IEC
IECEx/ATEX hazardous rating
Zone 1 Zone 2 Zone 22 Zone 21
Ingress protection (IP) ratings
IP66
Lamp type
LED
Voltage rating
230 Vac
Frequency rating
50-60 Hz
Amperage Rating
37 mA
Lumens
200
Material
Glass-fibre reinforced polyester
Letter color
Red
Special features
Polycarbonate cover
Type
1 x Ex-d cable gland M20 x 1.5 for diameter 7-12 mm
Crouse-Hinds series CEAG dKLK LED Emergency Light Fixtures catalog page
EU Declaration of Conformity - dKLK LED
EU Declaration of Conformity - dKLK LED
EU Declaration of Conformity - dKLK LED
Operating Instructions - dKLK LED Emergency Light Fixtures
dKLK LED Emergency Light Fixtures photometric files
The LED light source delivers 200 lumens at only 37 mA, delivering energy efficiency that lowers operating costs and extends fixture life in round-the-clock applications. This translates to fewer replacements and reduced maintenance windows in mission-critical areas. Built for hazardous locations with IP66 protection and IECEx/ATEX certification, it enables compliant emergency illumination across Zone 1/2 and Zone 21/22 environments, minimizing regulatory risk and downtime during audits. The glass-fibre reinforced polyester housing plus a polycarbonate cover provides chemical resistance and impact durability, reducing damage from dust, moisture, and industrial debris. An Ex-d cable gland, M20 x 1.5 for 7–12 mm cables, simplifies field wiring and enclosure ingress protection during retrofit projects. Documentation from Crouse-Hinds supports design confidence, while photometric data ensures precise planning for illumination layouts in chemical plants and offshore facilities. Overall, the CEAG dKLK LED series delivers reliability, ease of installation, and long-term cost savings in harsh environments.
Get a Quick Quote for a Eaton GHG8714121R0101
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton GHG8714121R0101?
Enquire Now
FAQs
This unit uses an Ex-d cable gland M20 x 1.5 rated for 7–12 mm cables, simplifying compliant wiring in Zone 1/2 environments. The housing is glass-fibre reinforced polyester with a polycarbonate cover, providing abrasion and chemical resistance. Follow the provided operating instructions to ensure proper gland seating, cable routing, and enclosure integrity for reliable emergency operation.
Key specs include 200 lumens output at 230 Vac with a current draw of 37 mA, delivering efficient operation and long service life. The IP66 rating protects against dust and water ingress in harsh plants, while IECEx/ATEX certification confirms suitability for Zone 1/2 and Zone 21/22. These figures translate to predictable emergency illumination and lower maintenance in demanding environments.
Yes. The GHG8714121R0101 is designed for Hazardous/Classified Locations with IECEx/ATEX certification and Zone 1/2 and Zone 21/22 ratings, plus IP66 protection. The glass-fibre reinforced polyester housing and polycarbonate cover withstand chemical exposure and impact, making it appropriate for chemical plants, refineries, and offshore installations requiring rugged, code-compliant emergency lighting.
The product ships with EU Declarations of Conformity and installation instructions, plus catalogs and photometric data. These resources help verify regulatory compliance, guide proper mounting and wiring, and support audits. A catalog page and photometric files are available for design verification and accurate illumination planning in hazardous environments.
LED efficiency and long life reduce lamp replacements and maintenance visits, lowering total cost of ownership in high-demand sites. The durable GFPR housing and IP66/IECEx/ATEX certified design minimize downtime due to environmental exposure. Installation efficiency is improved by the Ex-d gland and documented installation guidance, contributing to faster commissioning and longer intervals between service.
