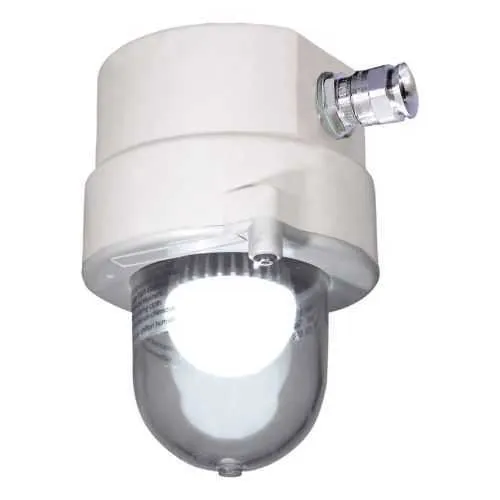

Eaton GHG8714221R0101 LED Emergency Light - IP66/ATEX
Part Number: GHG8714221R0101
Quick Summary
Eaton GHG8714221R0101 LED emergency light is engineered to provide reliable self-contained escape lighting in hazardous locations. Facilities often struggle with regulatory compliance, maintenance downtime, and retrofit challenges for hazardous-area luminaires. This unit carries IECEx/ATEX approvals for Zones 1 and 2 and Zones 21 and 22, along with IP66 ingress protection, ensuring performance in harsh environments. Its rugged glass-fibre-reinforced polyester body and polycarbonate cover resist chemicals and impact, while the Ex-d cable gland simplifies installation in restricted spaces. Compact yet powerful, it supports 230 V operation at 50–60 Hz and 200 lumens of illumination. By combining robust certification with straightforward installation, it delivers reliability and lower lifecycle costs for industrial sites.
Product Information
Extended Description
GHG8714221R0101 Eaton: Eaton Crouse-Hinds series CEAG dKLK 23 LED emergency light fixture, 37 mA, 50-60 Hz, Green, 200 lumens, Glass-fibre reinforced polyester, Polycarbonate cover, 1 x Ex-d cable gland M20 x 1.5 for diameter 7-12 mm, 230 Vac
Product Name
Eaton's Crouse-Hinds series CEAG dKLK 23 LED emergency light fixture
Catalog Number
GHG8714221R0101
EAN
4251510707682
Product Length/Depth
164.5 mm
Product Height
189 mm
Product Width
128 mm
Product Weight
1.7 kg
Area classification
Hazardous/Classified Locations
Standards type
IEC IECEx/ATEX
IECEx/ATEX hazardous rating
Zone 2 Zone 22 Zone 21 Zone 1
Ingress protection (IP) ratings
IP66
Lamp type
LED
Voltage rating
230 Vac
Frequency rating
50-60 Hz
Amperage Rating
37 mA
Lumens
200
Material
Glass-fibre reinforced polyester
Letter color
Green
Special features
Polycarbonate cover
Type
1 x Ex-d cable gland M20 x 1.5 for diameter 7-12 mm
Crouse-Hinds series CEAG dKLK LED Emergency Light Fixtures catalog page
EC Type Examination Certificate - dKLK LED
EC Type Examination Certificate - dKLK LED
EC Type Examination Certificate - dKLK LED
Operating Instructions - dKLK LED Emergency Light Fixtures
dKLK LED Emergency Light Fixtures photometric files
LED technology delivers 200 lumens at 230 VAC with a low 37 mA current draw, reducing energy consumption and wiring costs while maintaining bright, dependable escape lighting in demanding spaces. This translates to measurable efficiency gains and lower total cost of ownership in hazardous locations such as chemical plants and oil facilities. The product carries IECEx/ATEX approvals for Zones 1 and 2 and Zones 21 and 22, plus IP66 protection, ensuring regulatory compliance and long-term reliability in aggressive environments. The rugged housing uses glass-fibre reinforced polyester with a polycarbonate cover, offering chemical resistance, impact protection, and predictable performance over extended service life—key for offshore platforms and harsh industrial sites. Installation is streamlined by a single Ex-d cable gland (M20 x 1.5) for 7–12 mm cables, and the compact footprint (164.5 mm L, 189 mm H, 128 mm W) supports retrofit projects with limited space. All data is supported by Eaton catalogs, photometrics, and installation instructions for precise design and quick commissioning.
Get a Quick Quote for a Eaton GHG8714221R0101
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton GHG8714221R0101?
Enquire Now
FAQs
Prepare the enclosure and ensure the Ex-d M20 x 1.5 gland is suitable for 7–12 mm cables. Mount the unit, route the Ex-d gland cable, and connect to a 230 VAC supply rated for 50–60 Hz. Verify IP66 sealing and confirm Zone classification compliance (Zones 1/2 and 21/22) before energizing the circuit. Use the catalog pages and installation instructions provided by Eaton to confirm torque settings and enclosure integrity.
The unit operates at 230 VAC with a frequency of 50–60 Hz, drawing 37 mA while delivering 200 lumens of LED output. This combination provides bright emergency illumination with minimal load on the power supply, supporting reliable operation during mains loss in hazardous environments.
Yes. It is certified for IECEx/ATEX Zones 1 and 2 and Zones 21 and 22, with IP66 protection, making it appropriate for hazardous locations such as chemical plants, refining facilities, and offshore installations where robust, compliant escape lighting is essential.
The fixture carries IECEx/ATEX certification for Zone 1/2 and Zone 21/22, along with IP66 ingress protection. It employs an Ex-d cable gland and a rugged housing designed to withstand harsh chemical and mechanical environments typical of industrial sites.
LED technology provides longer life and lower maintenance compared to traditional lamps, reducing downtime during replacements. The compact, rugged design and manufacturer-backed data (catalogs, photometrics, and instructions) support faster installations and consistent performance, delivering lower lifecycle costs and improved uptime for critical emergency lighting systems in hazardous locations.
