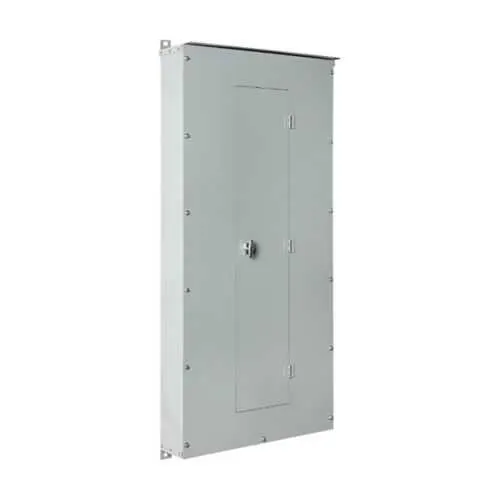

Eaton GWPBQ2090PR Pow-R-Xpress NEMA 3R Enclosure - UL 67
Part Number: GWPBQ2090PR
Quick Summary
Eaton GWPBQ2090PR Pow-R-Xpress NEMA 3R enclosure protects electrical gear in harsh environments. For engineers and technicians, unpredictable weather, dust, and field wiring errors increase commissioning time and risk. UL 67 certification, NEMA ratings, and compliance with industry standards help ensure safe, compliant installations. The enclosure also leverages the Pow-R-Xpress family to streamline panel mounting and wiring, reducing installation costs. Its footprint translates into predictable space for planning, while robust construction supports reliable operation in both controlled facilities and outdoor sites. For project teams, the 20x90 inch footprint aligns with standard enclosure pads, reducing layout revisions and enabling faster deployment across multiple sites.
Product Information
Extended Description
GWPBQ2090PR Eaton: Eaton Pow-R-Xpress NEMA 12/3R ENCLOSURE PRL1A/2A 20x90
Product Name
Eaton Pow-R-Xpress NEMA 3R enclosure
Catalog Number
GWPBQ2090PR
UPC
786687011132
Product Length/Depth
90 in
Product Height
6.5 in
Product Width
20 in
Product Weight
278 lb
Compliances
NEMA Compliant
Certifications
UL 67
Type
N3R ENCLOSURE
Pow-R-Xpress quick selector reference guide
Pow-R-Xpress quick selector reference guide
Pow-R-Xpress quick selector reference guide
Pow-R-Line Xpert family overview
Eaton Specification Sheet - GWPBQ2090PR
Feature: NEMA 3R weatherproof enclosure protects against rain and corrosion. Business Impact: reduces unplanned downtime and maintenance costs by limiting ingress paths and condensation. Application: ideal for outdoor motor control centers, weather-exposed process panels, and perimeter electrical cabinets. Feature: UL 67 certified construction ensures electrical safety compliance. Business Impact: simplifies regulatory audits and risk management for manufacturers and operators. Application: suited for control panels in facilities demanding formal safety certification and traceability. Feature: Generous footprint of 20 in width by 90 in length with a 6.5 in height and 278 lb weight supports clear internal layout and robust mounting. Business Impact: enables efficient component placement, easier wiring management, and straightforward future expansion. Application: fits mid-size industrial control panels and distributed power assemblies where space planning is critical. Feature: NEMA Compliant design provides a standardized protection level aligned with industry expectations. Business Impact: lowers compliance risk and simplifies procurement with a familiar specification framework. Application: suitable for general electrical distribution enclosures in both commercial and industrial settings. Feature: Comprehensive documentation and resources—Pow-R-Xpress quick selector references, program guides, and datasheets. Business Impact: speeds design-in, reduces engineering effort, and improves order accuracy. Application: engineering teams leveraging Eaton resources during spec, procurement, and installation planning.
Get a Quick Quote for a Eaton GWPBQ2090PR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton GWPBQ2090PR?
Enquire Now
FAQs
Yes, the GWPBQ2090PR is designed to integrate with standardPow-R-Xpress components and panel configurations. Start with space planning and site prep, then mount the enclosure on a stable base, run conduits and wiring through approved entries, and follow the Pow-R-Xpress quick selector references to streamline wiring. Recommend reviewing the Eaton specification sheet for exact mounting patterns and accessory options to avoid field modifications.
UL 67 certification confirms that the enclosure meets established electrical safety and construction standards for control cabinets. This reduces regulatory risk and supports audit readiness for facilities handling electrical distribution and automation. The combination with a NEMA 3R rating makes it suitable for outdoor and semi-exposed environments, including process control and perimeter power systems.
Yes. The NEMA 3R-rated design provides weatherproof protection against rain and wind-driven moisture, while the UL 67 certified construction helps ensure safe operation in dusty environments. For dusty or wet locations, ensure proper sealing around entry points, use appropriate gaskets, and follow best practices in cable management to maintain long-term reliability.
Adopting Pow-R-Xpress enclosures typically reduces installation time through standardized dimensions and fast wiring access, lowering field labor costs and commissioning windows. The UL 67 and NEMA 3R certifications reduce risk of non-compliance fines and maintenance surprises. Over multiple lines, standardization also improves spare parts planning and future expansion, delivering measurable lifecycle savings.
The enclosure is 90 inches in length/depth, 20 inches wide, and 6.5 inches tall, with an approximate weight of 278 pounds. These dimensions help with footprint planning, forklift and pallet handling, and transport routing. Always verify packaging on the receiving dock and inspect for any shipping damage before installation.
