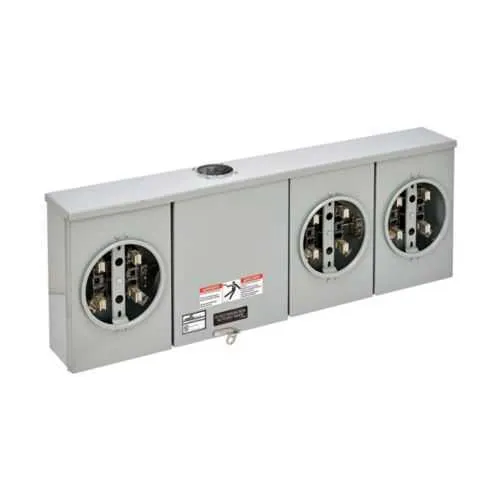

Eaton H014 Meter Pack - UL-Listed 3R, 100 A, Galvanized Steel
Part Number: H014
Quick Summary
Introducing the Eaton H014 Meter Pack, a surface-mount meter enclosure for reliable 100 A distribution in industrial panels. It addresses common field challenges such as extended installation time, wiring complexity, and the need for robust housing in harsh environments. UL-listed with a 3R enclosure rating, galvanized steel construction, and ANSI 61 gray paint, it delivers long life and code-compliant protection. In addition to reliability, its 4-jaw, 3-wire design supports flexible metering configurations for B-Line installations, helping you shorten project timelines and reduce total cost of ownership.
Product Information
Extended Description
H014 Eaton: Eaton B-Line series horizontal meter pack, #6-250 MCM, #14-2/0, 4, Surface mount, 3, 100 A, None, 4, Ring, 3 R, ANSI 61 gray paint, Galvanized steel, Overhead/underground
Product Name
Eaton B-Line series horizontal meter pack
Catalog Number
H014
UPC
782051411140
Product Length/Depth
4.63 in
Product Height
12 in
Product Width
43 in
Product Weight
34 lb
Certifications
UL
Amperage Rating
100 A
Material
Galvanized steel
Finish
ANSI 61 gray paint
Number of jaws
4
Number of wires
3
Bypass
None
Feed type
Overhead/underground
Mounting method
Surface mount
Number of positions
4
Line lug size
#6-250 MCM
Load lug size
#14-2/0
Cover/door type
Ring
Degree of protection
3R
The H014 combines high-capacity line lugs (#6-250 MCM) with smaller load lugs (#14-2/0) in a 4-position, surface-mount enclosure. Feature → Business Impact → Application: Large-lug capability accelerates feeder wiring for industrial mains and subpanels, reducing field labor and handling time while improving reliability in overhead/underground service. Feature → Application compatibility: Galvanized steel with ANSI 61 gray paint delivers durable corrosion resistance in challenging environments, supporting long service life in manufacturing floors and outdoor installations. Feature → Compliance and protection: UL listing and 3R rating ensure compliance with electrical codes and environmental protection, minimizing risk in critical facilities. Feature → Installation efficiency: 4-position design with ring door cover simplifies assembly and maintenance, enabling quicker metering upgrades in B-Line series projects. Feature → Value realization: 100 A rating matches common branch circuits, supporting scalable metering strategies for facilities seeking cost-effective, easy-to-maintain power distribution.
Get a Quick Quote for a Eaton H014
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton H014?
Enquire Now
FAQs
Begin by selecting a compliant mounting surface and verifying load and line lug sizes (#14-2/0 for loads, #6-250 MCM for lines). Attach the enclosure to the surface using appropriate hardware, then route conductors through the 4-position metering block. Connect line and load lugs per the wiring diagram, secure the ring door, and verify UL-listed ratings before energizing. The 3R enclosure value provides additional protection in outdoor or semi-enclosed environments, reducing field rework and corrosion concerns.
Yes. The H014 is designed for overhead/underground feed types, supporting flexible installation in mixed-use facilities. With 100 A amperage rating and four jaws for securing conductors, it accommodates the common feeder configurations found in industrial and commercial power distribution. Its surface-mount design simplifies retrofits and upgrades in existing B-Line series installations without requiring complex enclosures.
Key specifications include a 100 A amperage rating, four jaws, three wires, and line/load lug sizes of #6-250 MCM and #14-2/0, respectively. The enclosure uses a cover/door ring and offers 4 positions for flexible metering arrangements. It is UL-listed and rated 3R, with galvanized steel construction and ANSI 61 gray finish, ensuring durable performance in demanding environments.
The H014 carries UL-listed certification and a 3R enclosure rating, indicating compliance with standard electrical safety requirements and performance in light-to-moderate environmental exposure. The finish is ANSI 61 gray paint on galvanized steel, which provides corrosion resistance. These certifications and finishes help ensure reliable operation in industrial facilities and align with common metering and distribution standards.
The H014 offers rapid installation through a surface-mount design and 4-position configuration, reducing field labor and project timelines. Its durable galvanized steel construction and UL/3R ratings minimize maintenance and liability in harsh environments, while the large line/load lug options support scalable metering for evolving power distribution needs. Overall, it delivers reliability, compliance, and cost efficiency in B-Line series upgrades.
