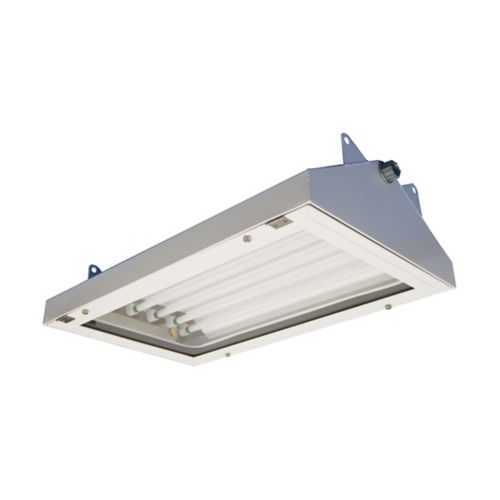

Eaton HBAB22174 Linear Fluorescent Light Fixture - IP66
Part Number: HBAB22174
Quick Summary
HBAB22174 is a hazardous-area linear fluorescent light fixture designed for demanding industrial environments. It provides bright, reliable illumination in locations where ordinary lighting fails under dust, moisture, or chemical exposure. Facilities grappling with maintenance downtime in harsh locations gain a sealed, IP66-rated solution that protects sensitive components and reduces replacement cycles. This model meets NEC/CEC standards, carries NEMA 4 protection, and is intended for Hazardous/Classified Locations, enabling safe operation in Class I, Division 2, and related classifications. The combination of a rugged aluminum housing and an acrylic lens delivers long service life, while 17 W wattage supports energy efficiency. Practical for through-feed installations, it also supports 2-lamp arrangements for higher lumen output without excess heat or glare.
Product Information
Extended Description
HBAB22174 Eaton: Eaton Crouse-Hinds series Pauluhn Apex HBA linear fluorescent light fixture,3/4" (2) NPT hubs,50/60 Hz,2 ft lamp,Fluorescent,Acrylic lens,T8 bi-pin,Aluminum,2-lamp,Through feed,Bolted door,120-277 Vac,17W
Product Name
Eaton Crouse-Hinds series Pauluhn Apex HBA linear fluorescent light fixture
Catalog Number
HBAB22174
UPC
662276437913
Product Length/Depth
26.59 in
Product Height
6.53 in
Product Width
15.72 in
Product Weight
19 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class III
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Type
Bolted door
Material
Aluminum
Lamp length
2 ft
Number of lamps
2-lamp
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Style
Through feed
Entry size
3/4"
Entry type
(2) NPT hubs
Wattage
17W
Lens material
Acrylic
Crouse-Hinds series Pauluhn Apex Hazardous Area Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Apex Hazardous Area Linear Fluorescent catalog page
IF LBL1404 - Pauluhn Apex Linear Fluorescent
Eaton Specification Sheet - HBAB22174
Feature: Hazardous-location rating with IP66/NEMA 4 protection. Business impact: Ensures safe operation, reduces unplanned downtime, and simplifies regulatory compliance in hazardous environments. Application: suitable for oil, gas, chemical processing, and mining facilities where ingress protection is essential. Feature: Through-feed mounting with (2) NPT hubs and bolted door. Business impact: Flexible wiring routes and reliable sealing during service, minimizing maintenance outages. Application: plant floors and switchgear rooms requiring sealed luminaire entries. Feature: 2-lamp, 2 ft lamp length using T8 bi-pin lamps. Business impact: Higher lumen output in a compact form factor with lower energy draw, enabling fewer fixtures to meet lighting requirements. Application: assembly lines and work cells needing uniform, energy-efficient illumination. Feature: 120-277 VAC operation at 50/60 Hz and 17 W wattage. Business impact: Broad electrical compatibility and energy savings over legacy luminaires, simplifying procurement and reducing operating costs. Application: mixed-voltage facilities and retrofit projects in hazardous locations. Feature: Aluminum housing with acrylic lens and 3/4" entry. Business impact: Durable, chemical-resistant enclosure with easy cleaning and service access; enhances overall reliability and lower maintenance costs. Application: outdoor or harsh indoor environments where exposure to dust, moisture, and chemicals is common.
Get a Quick Quote for a Eaton HBAB22174
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HBAB22174?
Enquire Now
FAQs
HBAB22174 offers a through-feed design with a bolted door, 3/4" entry size, and two integrated NPT hubs. This combination enables flexible conduit routing while preserving IP66 integrity and a sealed enclosure. It simplifies service access and wiring in hazardous locations, reducing retrofit challenges and downtime during installation.
HBAB22174 uses a 2-lamp, 2 ft fluorescent configuration with T8 bi-pin lamps. It operates at 120-277 VAC and 50/60 Hz, with a wattage of 17W per fixture. This setup delivers efficient illumination for longer duty cycles and supports consistent performance in mixed-power industrial environments.
Ideal for hazardous or classified locations, HBAB22174 is well-suited to oil and gas facilities, chemical plants, mining operations, and other tough environments. Its IP66 and NEMA 4 ratings, along with through-feed installation, support reliable luminaire performance on production lines, processing areas, and harsh outdoor or indoor spaces.
The HBAB22174 adheres to NEC/CEC standards for hazardous locations and carries NEMA 4 protection with IP66 ingress protection. It is specified for Hazardous/Classified Locations, including Class I, Division 2, providing code-compliant illumination in demanding industrial settings.
With a robust aluminum housing, acrylic lens, and sealed bolted door, HBAB22174 minimizes ingress-related maintenance and corrosion. The 17W energy draw, 2-lamp output, and long service life reduce replacement frequency and energy costs, delivering lower total cost of ownership in facilities with harsh environmental exposure and strict compliance requirements.
