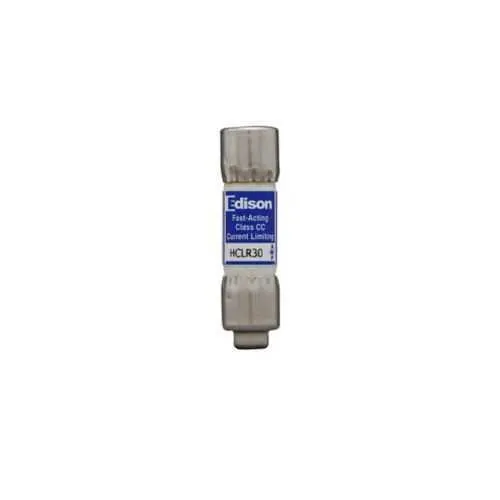

Eaton HCLR30 Edison fuse - 200 kAIC
Part Number: HCLR30
Quick Summary
Eaton HCLR30 Edison fuse provides fast-acting protection for branch circuits in lighting and resistance heating applications. For engineers balancing reliability with downtime costs, selecting the right fuse means fewer nuisance trips and faster maintenance. The device is CE marked and RoHS compliant, aligning with EU and global safety and sustainability standards. Its Class CC design and 600 V rating make it well suited for compact protection in modern control panels while delivering a robust 200 kAIC interrupt capacity. By combining a standard 1-inch body with nickel-plated endcaps and a rejection-style fit, it simplifies installation, reduces spare-part complexity, and supports scalable protection across electrical protection and circuit-control platforms.
Product Information
Extended Description
HCLR30 Eaton: Eaton Edison HCLR fuse, Fast acting branch circuit fuse, Rejection style, Non-inductive loads, Lighting and resistance heating circuits, 30 A, CC, Non-indicating, 200 kAIC, Melamine tube, Nickel-plated brass endcaps, Standard, 10, 600 V
Product Name
Eaton Edison HCLR fuse
Catalog Number
HCLR30
UPC
782634420736
Product Length/Depth
1 in
Product Height
0.406 in
Product Width
0.406 in
Product Weight
0.1 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
30 A
Interrupt rating
200 kAIC
Voltage rating
600 V
Material
Nickel-plated brass endcaps Melamine tube
Packaging type
Standard
Class
Class CC
Fuse indicator
Non-indicating
Quantity
10
Special features
Rejection style
Fast-acting operation and a 200 kAIC interrupt rating reduce fault energy and shorten outage durations. In practical terms, this means fewer nuisance trips during startup surges and inductive loads. Ideal for lighting and resistance-heating circuits in panelboards and control cabinets, it protects sensitive equipment while keeping line downtime to a minimum. Precision fit: a 1 inch long body with 0.406 by 0.406 inch dimensions, nickel-plated brass endcaps, and a melamine tube provide a compact, rugged package. This enables dense panel layouts and quick replacements in demanding environments, improving installation efficiency and serviceability. Rejection style and non-indicating design prevent incorrect placement and simplify commissioning; non-indicating status reduces need for visual checks during maintenance. Compliance and lifecycle: CE marked and RoHS compliant support global deployments, while standard packaging (10 units) streamlines stocking and procurement.
Get a Quick Quote for a Eaton HCLR30
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HCLR30?
Enquire Now
FAQs
The HCLR30 is a 1 inch long fuse with a 0.406 x 0.406 inch footprint and nickel-plated brass endcaps. It uses a Class CC format and is designed for Edison-style fuse blocks in 600 V systems. Packaged standard as 10 fuses per order, it employs a rejection-style, non-indicating design to minimize mis-installation and streamline replacement during routine maintenance and panel upgrades.
The fuse provides 30 A amperage, 600 V voltage rating, and a 200 kAIC interrupt rating. These specs enable rapid fault interruption for non-inductive loads, reducing arc energy and protecting downstream equipment. The 200 kAIC rating ensures robust short-circuit protection in typical industrial lighting and heating circuits, even under high fault currents.
Yes. The product is explicitly designed for lighting and resistance heating applications, where non-inductive loads benefit from fast-acting protection. Its Class CC construction, 600 V rating, and 30 A capacity provide reliable protection while maintaining compact size suitable for panel installation and space-constrained environments.
The HCLR30 is CE Marked and RoHS compliant, supporting regulatory requirements for European and global deployments. This helps ensure environmental safety, reduced hazardous substances burden, and smoother cross-border procurement for industrial facilities and OEM integrations.
With a non-indicating, rejection-style design and standard packaging, the HCLR30 simplifies commissioning and field replacements, reducing labor time and risk of mis-wiring. A 10-pack per package and compact form factor streamline stocking and inventory management, contributing to lower maintenance costs and faster uptime in high-demand electrical protection applications.
