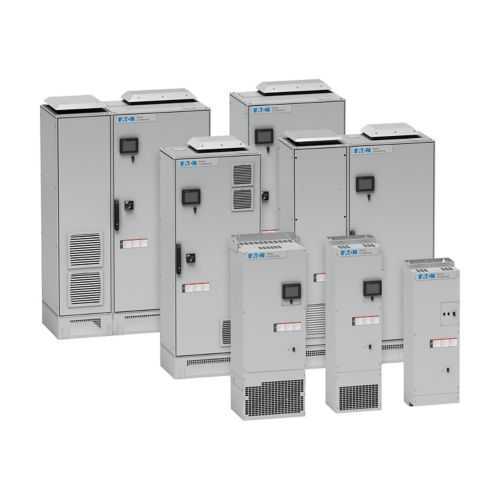

Eaton HCU2060D5IP54 Active Harmonic Correction Unit - IP54
Part Number: HCU2060D5IP54
Quick Summary
Eaton HCU2060D5IP54 active harmonic correction unit reduces harmonic distortion in three-phase 380-480 V industrial power systems. This solution targets common pain points like overheating, equipment wear, and nuisance trips driven by power quality issues. Key certifications such as IEC 61000-3-2, IEC 61000-3-4, and IEEE 519 alongside UL 508C and CSA C22.2 No. 14 provide strong compliance context for industrial environments. By addressing harmonics at the source, it helps facilities improve energy efficiency, extend motor drive life, and lower maintenance costs while ensuring reliable operation across manufacturing floors and data-driven facilities.
Product Information
Extended Description
HCU2060D5IP54 Eaton: Eaton Active Harmonic Correction unit, 60A, 1.3 kW watt loss, 380-480V rating, 50/60 Hz, Three-phase, Floor-mount, IP54 enclosure
Product Name
Eaton HCU2 active harmonic correction unit
Catalog Number
HCU2060D5IP54
UPC
786689640897
Product Length/Depth
57.18 in
Product Height
88.24 in
Product Width
25.69 in
Product Weight
909 lb
Certifications
IEC 61000 3-2 IEC 61000-3-4 IEEE Std. 519 UL 508C CSA Std. C22.2 No. 14
Product Category
Harmonic Correction Units
Amperage Rating
60A
Enclosure
IP54
Frequency rating
50/60 Hz
Mounting
Floor
Phase
Three-phase
Type
Active Harmonic Correction unit
Voltage rating
380-480 V
Watt losses
1.3 kW
Feature → Business Impact → Application: The HCU2060D5IP54 delivers 60A of active harmonic correction with 1.3 kW watt losses, reducing total harmonic distortion and improving overall power quality, which translates to higher system efficiency and longer equipment life in motor-heavy environments. Application: suitable for plants with drive trains and heavy loads operating at 380-480 V, 50/60 Hz, where energy costs and reliability are critical KPIs.Feature → Business Impact → Application: IP54 enclosure and floor-mount design provide robust protection and straightforward installation in harsh factory floors, minimizing enclosure retrofit needs and enabling rapid commissioning. Application: ideal for retrofit projects or new installations where rugged enclosures are required for demanding environments.Feature → Business Impact → Application: Three-phase architecture and precise amperage control ensure stable voltage profiles across loads, reducing trips and improving drive performance. Application: data centers, packaging lines, and machining centers with mixed motor loads benefit from consistent power delivery.Feature → Business Impact → Application: Compliance with IEC/IEEE standards reduces regulatory risk and aids in audits, enabling smoother integration with existing safety and quality programs. Application: facilities targeting ISO 50001 or similar energy management programs.Feature → Business Impact → Application: 50/60 Hz compatibility and 380-480 V range support broad industrial applicability, enabling quicker adoption across multi-site operations. Application: regional manufacturing campuses and global OEM installations seeking a scalable harmonics solution.
Get a Quick Quote for a Eaton HCU2060D5IP54
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HCU2060D5IP54?
Enquire Now
FAQs
The HCU2060D5IP54 is designed for floor-mount installation with an IP54-rated enclosure, suitable for typical factory environments. Ensure adequate clearances for service access, compliant cable routing for 60 A circuits, and proper mounting on a stable surface. Wiring should conform to three-phase 380-480 V, 50/60 Hz specifications, with appropriate protective devices and adherence to local electrical codes.
The unit operates as an active harmonic correction device, dynamically compensating for dominant harmonic orders to lower total harmonic distortion (THD) in the supply. It complies with IEC 61000-3-2 and IEC 61000-3-4 limits, IEEE 519 recommendations, and purchase-specific certifications such as UL 508C and CSA C22.2 No. 14, supporting regulatory alignment for industrial installations.
Yes. It targets three-phase 380-480 V systems common in data centers and manufacturing floors, where motor drives and power-intensive loads create harmonic stress. By reducing harmonic distortion and stabilizing voltage profiles, it helps maintain server uptime, drive efficiency, and overall facility reliability while enabling scalable power quality improvements.
The HCU2060D5IP54 carries IEC 61000-3-2, IEC 61000-3-4, IEEE Std. 519, UL 508C, and CSA Std. C22.2 No. 14. These certifications are critical for risk management, safety audits, and regulatory compliance in global manufacturing, helping ensure safe operations, predictable performance, and smoother vendor approvals during procurement.
Expected ROI stems from reduced energy waste due to improved power factor and lower THD, along with extended equipment life from less electrical stress. The unit’s 1.3 kW watt loss and 60 A capacity support durable performance with minimal maintenance, while the IP54 enclosure simplifies site servicing and improves uptime in challenging industrial environments.
