Eaton HCU2060D5N1 Active Harmonic Correction - IEEE 519
Part Number: HCU2060D5N1
Quick Summary
The Eaton HCU2060D5N1 is an active harmonic correction unit for three-phase industrial power systems. Harmonics can cause overheating, reduced efficiency, and unexpected trips, eroding uptime and increasing maintenance costs. It complies with IEC 61000-3-2/3-4, IEEE Std. 519, UL 508C, and CSA C22.2 No. 14, delivering robust electrical compliance. Designed for 380–480 V networks with a wall-mount NEMA 1 enclosure, it delivers reliable harmonic mitigation while simplifying installation and reducing lifecycle costs.
Product Information
Extended Description

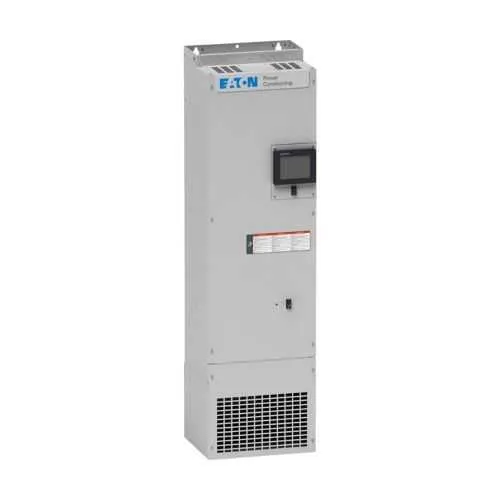

HCU2060D5N1 Eaton: Eaton Active Harmonic Correction unit, 60A, 1.3 kW watt loss, 380 - 480 rating, 50/60 Hz, Three-phase, Wall-mount, NEMA 1 enclosure
Product Name
Eaton HCU2 active harmonic correction unit
Catalog Number
HCU2060D5N1
UPC
786685985855
Product Length/Depth
65.4 in
Product Height
18.7 in
Product Width
21.8 in
Product Weight
420 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
IEC 61000 3-2 IEC 61000-3-4 IEEE Std. 519 UL 508C CSA Std. C22.2 No. 14
Amperage Rating
60A
Cable entry
Bottom
Enclosure
NEMA 1
Frequency rating
50/60 Hz
Mounting
Wall
Phase
Three-phase
Type
Active Harmonic Correction unit
Voltage rating
380-480 V
Watt losses
1.3 kW
Feature: 60 A amperage rating and 380–480 V three-phase operation enable targeted harmonic correction for mid-sized facilities. Business Impact: Maintains motor efficiency, reduces total harmonic distortion, and lowers energy losses. Application: Manufacturing lines, pumps, and drive systems benefit from improved power quality and predictable performance. Feature: Bottom cable entry and wall-mount NEMA 1 enclosure simplify installation in control panels. Business Impact: Accelerated commissioning, neater wiring, and reduced field labor. Application: Retrofit or greenfield industrial facilities. Feature: 1.3 kW watt losses indicate low continuous-energy waste. Business Impact: Lower operating costs and reduced thermal stress on upstream equipment. Application: Continuous-process facilities and critical systems. Feature: Compliance with IEC 61000-3-2/3-4 and IEEE 519. Business Impact: Regulatory alignment and avoidance of utility penalties. Application: Facilities subject to strict harmonic limits. Feature: Three-phase, 50/60 Hz, 380–480 V rating. Business Impact: Seamless integration with common industrial drives and switchgear. Application: Plants with mixed motor loads and variable-speed drives.
Get a Quick Quote for a Eaton HCU2060D5N1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HCU2060D5N1?
Enquire Now
FAQs
The Eaton HCU2060D5N1 is an active harmonic correction unit designed to mitigate harmonic distortion in three-phase electrical systems operating at 380–480 V. It is well-suited for manufacturing lines, pumps, and drive-heavy facilities where power quality directly affects equipment life, energy efficiency, and uptime. This solution helps meet stringent harmonic limits while minimizing voltage distortion in real-world installations.
Active harmonic correction continuously monitors harmonic content and injects counter-distortion to flatten the current waveform. This reduces total harmonic distortion (THD), improves power factor, and lowers strand losses in motors and drives. In practice, facilities see fewer voltage spikes, less equipment heating, and more stable operation of sensitive loads such as CNCs, PLCs, and drives.
Plan for a wall-mounted, bottom-cable-entry enclosure in a clean control room or equipment area. The unit is rated for 380–480 V three-phase systems and uses a NEMA 1 enclosure, so ensure adequate clearance for heat dissipation and service access. align with existing switchgear and drive configurations, and account for proper electrical isolation during maintenance.
The unit complies with IEC 61000-2/3-4, IEEE Std. 519, UL 508C, and CSA Std. C22.2 No. 14. These certifications confirm robust electrical compatibility, safety, and harmonic limits compliance. For manufacturers, this reduces regulatory risk, simplifies vendor qualification, and supports utility rebates or penalties avoidance in harmonically sensitive installations.
With 1.3 kW of inherent watt losses and 60 A capability, the HCU2060D5N1 delivers targeted harmonic correction without excessive idle power draw. Benefits include reduced downtime, lower maintenance costs, and improved equipment efficiency. The unit carries a typical warranty and aligns with long-term reliability expectations for mid-sized manufacturing and processing facilities.
