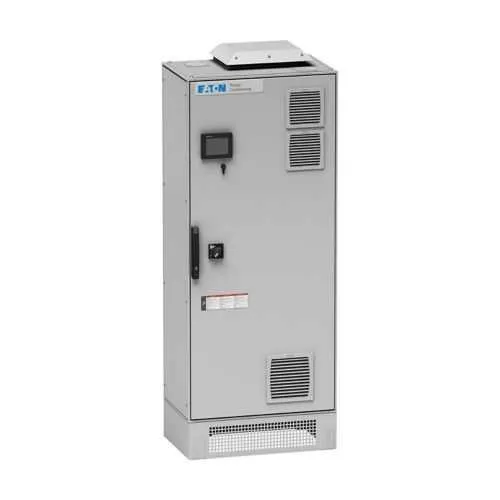

Eaton HCU2060D5N12 Harmonic Correction Unit - NEMA 12
Part Number: HCU2060D5N12
Quick Summary
HCU2060D5N12 active harmonic correction unit improves power quality for industrial three-phase systems. Unmitigated harmonics drive overheating, motor wear, and unexpected trips, elevating maintenance costs and downtime. This Eaton design is certified to IEC 61000-3-2, IEC 61000-3-4, IEEE 519, UL 508C, and CSA C22.2 No. 14, helping you meet common utilities and safety standards. Engineered for 380–480 V networks with 50/60 Hz operation, it mounts floorwise in a NEMA 12 enclosure and offers top or bottom cable entry for flexible installation. In practice, you gain reliable harmonic mitigation, predictable performance, and a clear path to energy efficiency and regulatory compliance.
Product Information
Extended Description
HCU2060D5N12 Eaton: Eaton Active Harmonic Correction unit, 60A, 1.3 kW watt loss, 380-480V rating, 50/60 Hz, Three-phase, Floor-mount, NEMA 12 enclosure
Product Name
Eaton HCU2 active harmonic correction unit
Catalog Number
HCU2060D5N12
UPC
743172081957
Product Length/Depth
26.85 in
Product Height
87.24 in
Product Width
36.5 in
Product Weight
809 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
IEC 61000 3-2 IEC 61000-3-4 IEEE Std. 519 UL 508C CSA Std. C22.2 No. 14
Product Category
Harmonic Correction Units
Special features
Integral disconnect
Amperage Rating
60A
Cable entry
Top or bottom
Enclosure
NEMA 12
Frequency rating
50/60 Hz
Mounting
Floor
Phase
Three-phase
Type
Active Harmonic Correction unit
Voltage rating
380-480 V
Watt losses
1.3 kW
The HCU2060D5N12 delivers 60A active harmonic correction with only 1.3 kW of watt losses, translating to measurable energy efficiency gains and reduced conductor and equipment heating in demanding 380–480 V drives. This is paired with a rugged floor-mount, NEMA 12 enclosure design that supports reliable operation in harsh industrial spaces, delivering improved uptime and protection for critical drives. Cable entry can be top or bottom, providing installation flexibility and faster commissioning in retrofit or new builds. Integral disconnect enhances safety and serviceability, enabling safer maintenance without additional components. Certification coverage— IEC 61000-3-2/3-4, IEEE 519, UL 508C, CSA C22.2 No. 14—reduces regulatory risk and simplifies compliance reporting. With dimensions of 26.85 in depth, 87.24 in height, and 36.5 in width, plus a substantial 809 lb weight, this unit is designed for durable, long-term plant reliability. These specs translate into predictable performance, lower maintenance costs, and a clearer pathway to energy efficiency across your industrial power system.
Get a Quick Quote for a Eaton HCU2060D5N12
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HCU2060D5N12?
Enquire Now
FAQs
Plan for floor placement in a suitable space, ensure 380-480 V three-phase power, and connect via top or bottom cable entry. Install the integral disconnect first for safety, then mount in the NEMA 12 enclosure on a solid floor per the manufacturer’s guidelines. Follow all IEC/IEEE certifications during commissioning for compliant operation.
The unit is rated for 60 A, 380-480 V, 50/60 Hz, with 1.3 kW watt losses. It is a three-phase, floor-mount device in a NEMA 12 enclosure, designed to mitigate harmonics in demanding industrial loads.
Yes. It carries IEC 61000-3-2, IEC 61000-3-4, IEEE Std. 519, UL 508C, and CSA Std. C22.2 No. 14 certifications, supporting regulatory compliance for industrial electrical systems.
Warranty is Eaton Selling Policy 25-000: one year from installation or eighteen months from shipment, whichever occurs first.
Ideal for large three-phase loads in manufacturing plants, data centers, and other facilities with significant harmonic content, especially where 380-480 V systems and floor-mount installations are standard.
