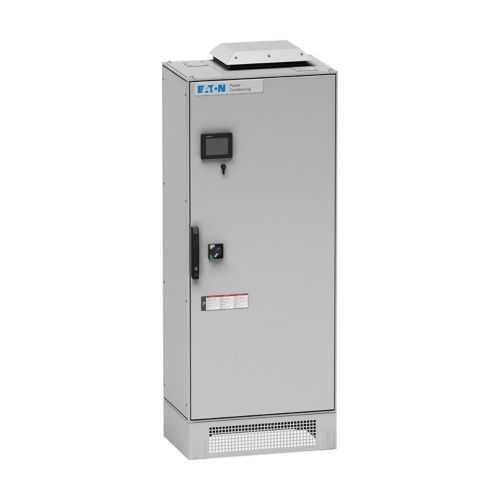

Eaton HCU2060D5N2 Active Harmonic Correction Unit - NEMA 2
Part Number: HCU2060D5N2
Quick Summary
Eaton HCU2060D5N2 active harmonic correction unit reduces harmonic distortion in 3-phase power systems. By addressing waveform distortions early, it helps prevent overheating, equipment wear, and unplanned downtime in manufacturing and process facilities. This solution meets IEC 61000-3-2, IEC 61000-3-4, and IEEE 519 standards, with UL 508C and CSA certifications for electrical enclosures and safety. With a floor-mounted, 60 A rating at 380–480 V and a NEMA 2 enclosure, it integrates seamlessly into existing plant electrical rooms, delivering measurable efficiency gains. Designed to simplify installation and ongoing maintenance, it supports top or bottom cable entry and comes with a clear warranty, backing its value in continuous production environments.
Product Information
Extended Description
HCU2060D5N2 Eaton: Eaton Active Harmonic Correction unit, 60A, 1.3 kW watt loss, 380-480V rating, 50/60 Hz, Three-phase, Floor-mount, NEMA 2 enclosure
Product Name
Eaton HCU2 active harmonic correction unit
Catalog Number
HCU2060D5N2
UPC
743172081926
Product Length/Depth
26.85 in
Product Height
87.24 in
Product Width
36.5 in
Product Weight
809 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
IEC 61000 3-2 IEC 61000-3-4 IEEE Std. 519 UL 508C CSA Std. C22.2 No. 14
Product Category
Harmonic Correction Units
Special features
Integral disconnect
Amperage Rating
60A
Cable entry
Top or bottom
Enclosure
NEMA 2
Frequency rating
50/60 Hz
Mounting
Floor
Phase
Three-phase
Type
Active Harmonic Correction unit
Voltage rating
380-480 V
Watt losses
1.3 kW
Feature: 60 A amperage rating with active harmonic correction. Business Impact: Reduces harmonic currents and improves power factor, which lowers cooling losses and extends equipment life. Application: Suitable for medium-to-large three-phase facilities with mixed loads. The result is measurable energy savings and reduced maintenance costs. Feature: 380–480 V three-phase operation. Business Impact: Aligns with common industrial power systems, minimizing retrofit needs and downtime during integration. Application: Factory floors, process lines, and mix of motors and drives. Feature: Integral disconnect. Business Impact: Enhances safety and eases control integration, reducing lockout/tagout steps and enabling faster startup. Application: Routine maintenance and emergency shutdown scenarios. Feature: NEMA 2 floor enclosure. Business Impact: Provides robust protection against dust and splashes in typical plant environments, lowering enclosure-related failures. Application: Electrical rooms, bays, and OEM installations. Feature: Top or bottom cable entry. Business Impact: Flexible installation reduces field wiring complexity and retrofit time, saving labor costs. Application: Existing systems with limited clearance or retrofits in tight spaces. Feature: 1.3 kW watt losses. Business Impact: Lower line losses compared to higher-loss corrections, contributing to ongoing energy efficiency. Application: Continuous-duty correction on demanding loads. Feature: Integral compatibility with IEC/IEEE standards. Business Impact: Ensures compliance with global harmonic limits, simplifying procurement and regulatory alignment. Application: Utilities, data centers, and manufacturing facilities seeking formal certification and risk reduction.
