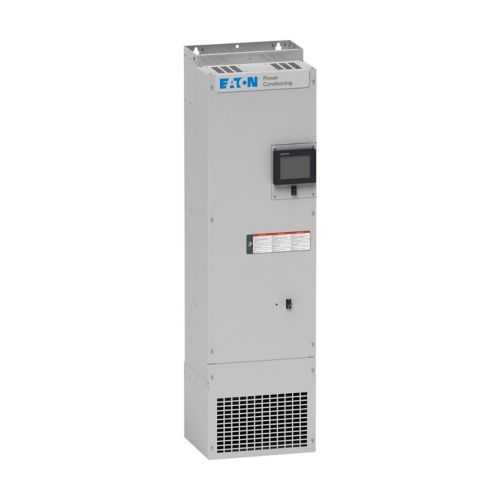

Eaton HCU2120D5N1 Active Harmonic Correction - IEEE 519
Part Number: HCU2120D5N1
Quick Summary
Eaton HCU2120D5N1 Active Harmonic Correction Unit improves power quality for three-phase industrial systems. Many plants struggle with harmonic distortion causing overheating, equipment wear, and unexpected downtime, impacting uptime and energy costs. It meets IEC 61000-3-2, IEC 61000-3-4, and IEEE 519 standards, with UL 508C and CSA C22.2 No. 14 certifications, ensuring electrical safety and regulatory compliance. Designed for wall-mount installation in a NEMA 1 enclosure, it operates at 120A with 380-480 V and 50/60 Hz, delivering consistent control and predictable performance. This translates to measurable reductions in thermal stress, improved motor reliability, and lower utility penalties, while aligning with procurement goals to improve efficiency and compliance.
Product Information
Extended Description
HCU2120D5N1 Eaton: Eaton active harmonic correction unit, 120A, 380-480V rating, 50/60 Hz, Three-phase, 2.8 kW watt loss, Wall-mount, NEMA 1 enclosure
Product Name
Eaton HCU2 active harmonic correction unit
Catalog Number
HCU2120D5N1
UPC
743172081902
Product Length/Depth
29 in
Product Height
46 in
Product Width
69 in
Product Weight
430 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
IEC 61000 3-2 IEC 61000-3-4 IEEE Std. 519 UL 508C CSA Std. C22.2 No. 14
Product Category
Harmonic Correction Units
Amperage Rating
120A
Cable entry
Bottom
Enclosure
NEMA 1
Frequency rating
50/60 Hz
Mounting
Wall
Phase
Three-phase
Type
Active Harmonic Correction unit
Voltage rating
380-480 V
Watt losses
2.8 kW
Feature → Active Harmonic Correction technology continuously monitors current waveforms and injects counter-harmonics to cancel distortions at the source. Business Impact → Lowers total harmonic distortion, reduces heating in transformers and motors, and improves energy efficiency across the line. Application → Optimal for manufacturing cells and facilities with mixed loads on 380-480 V three-phase systems. Feature → 120 A amperage rating handles mid-range loads without oversizing the system. Business Impact → Minimizes watt losses and cooling requirements, lowering operating costs over the device lifetime. Application → Supports medium-sized production lines and equipment clusters in standard industrial environments. Feature → 50/60 Hz compatibility ensures seamless integration with existing mains supplies worldwide. Business Impact → Simplifies commissioning, reduces spare parts needs, and shortens downtime during retrofits. Application → Deployable across global sites with consistent performance. Feature → Wall-mount installation with a NEMA 1 enclosure delivers robust protection and practical installation in control rooms and equipment corridors. Business Impact → Reduces floor footprint, improves safety, and simplifies wiring with bottom cable entry. Application → Suitable for tight spaces in OEM facilities and retrofit projects. Feature → Comprehensive certifications IEC 61000-3-2, IEC 61000-3-4, IEEE 519, UL 508C, CSA C22.2 No. 14 provide regulatory assurance. Business Impact → Minimizes compliance risk, supports vendor qualification, and speeds procurement approvals. Application → Essential for regulated industries such as manufacturing, data centers, and utilities. Feature → Watt losses of 2.8 kW reflect the unit’s own power consumption and influence net efficiency. Business Impact → Lower energy penalties and cooling loads through improved waveform management. Application → Suitable for continuous operation in high-duty environments where power quality is critical.
Get a Quick Quote for a Eaton HCU2120D5N1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HCU2120D5N1?
Enquire Now
FAQs
The HCU2120D5N1 is designed for three-phase 380-480V operation with a bottom cable entry and a wall-mountable NEMA 1 enclosure. Its 120A rating supports mid-range loads, enabling seamless retrofit or new-install projects without oversized cabinet footprints. Integration typically involves standard electrical connections, verified by its IEC and IEEE certifications for compliance and safety.
Expect notable reductions in total harmonic distortion and related heating in transformers and motors due to real-time harmonic cancellation. The device aligns with IEEE 519 and IEC 61000-3-2/3-4 standards, delivering improved power quality, reduced equipment stress, and better motor efficiency across typical industrial loads.
Yes. The unit carries UL 508C and CSA C22.2 No. 14 certifications, in addition to IEC and IEEE standards. This multi-scheme compliance supports safer integrations in regulated facilities and accelerates procurement approvals by addressing common regulatory requirements.
Eaton offers a warranty of one year from the date of installation or eighteen months from shipment, whichever occurs first. Routine maintenance is typically limited to periodic inspection of connections and enclosure integrity, with standard repair or replacement services available under the warranty terms to minimize downtime.
While initial investment covers the 120A harmonic correction unit, benefits include lower energy penalties, reduced cooling loads from better waveform control, and improved equipment reliability from decreased harmonic wear. Over time this translates to faster ROI through energy savings, improved uptime, and simplified compliance across multiple sites.
