Eaton HCU2120D5N2 Active Harmonic Correction - IEEE 519
Part Number: HCU2120D5N2
Quick Summary
Eaton HCU2120D5N2 Active Harmonic Correction unit enables clean power delivery for medium-to-large three-phase systems. Factories face harmonic distortion that increases energy costs, heats motors, and shortens equipment life. It is designed to meet IEEE Std. 519 and IEC 61000-3-2/3-4, plus UL 508C and CSA C22.2 No. 14, translating to reliable regulatory compliance across global plants. This solution supports power-quality initiatives and harmonics mitigation, delivering measurable reductions in energy waste and improved uptime for proactive asset management and lower total cost of ownership.
Product Information
Extended Description

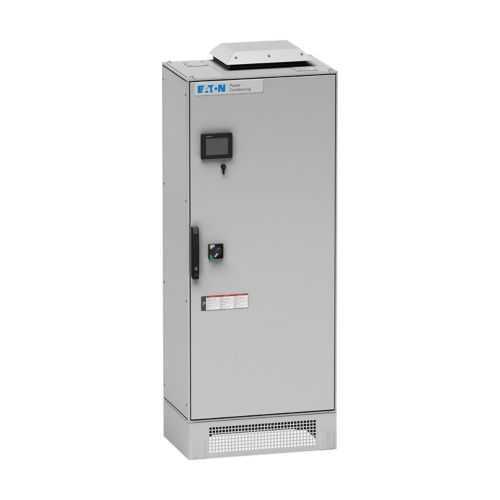

HCU2120D5N2 Eaton: Eaton Active Harmonic Correction unit, 120A, 2.8 kW watt loss, 380-480V rating, 50/60 Hz, Three-phase, Floor-mount, NEMA 2 enclosure
Product Name
Eaton HCU2 active harmonic correction unit
Catalog Number
HCU2120D5N2
UPC
743172081933
Product Length/Depth
26.85 in
Product Height
87.24 in
Product Width
36.5 in
Product Weight
831 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
IEC 61000 3-2 IEC 61000-3-4 IEEE Std. 519 UL 508C CSA Std. C22.2 No. 14
Product Category
Harmonic Correction Units
Special features
Integral disconnect
Amperage Rating
120A
Cable entry
Top or bottom
Enclosure
NEMA 2
Frequency rating
50/60 Hz
Mounting
Floor
Phase
Three-phase
Type
Active Harmonic Correction unit
Voltage rating
380-480 V
Watt losses
2.8 kW
Feature: 120A amperage rating with a 380-480V three-phase input. Business Impact: Handles typical motor drives and provides robust harmonic correction without oversizing, reducing the need for additional equipment and saving on upfront costs. Application: Suitable for medium-to-large manufacturing lines and automation systems with multiple VFDs. Feature: 50/60 Hz compatibility and active harmonic correction. Business Impact: Ensures stable power quality across international grid standards, minimizing voltage distortion and equipment stress. Application: Ideal for global facilities and multi-site deployments where grid variations are common. Feature: NEMA 2 floor-mount enclosure with integral disconnect. Business Impact: Easier installation and safer maintenance with a dedicated, protected footprint; reduces field wiring complexity. Application: Plant retrofit projects and new-builds requiring durable, serviceable power correction. Feature: Top or bottom cable entry with integral disconnect. Business Impact: Flexible routing simplifies panel integration and shortens commissioning time, improving project timelines. Application: Retrofit or new installations in constrained electrical rooms. Feature: Watt losses of 2.8 kW and three-phase, 380-480V operation. Business Impact: Clear cooling and ventilation requirements enable accurate thermal management planning, supporting reliability and uptime. Application: Applications with dense motor loads and high harmonic activity in production lines. Feature: Certifications and compliance alignment (IEEE 519, IEC 61000-3-x, UL 508C, CSA). Business Impact: Mitigates regulatory risk while enabling safer, compliant operation in mixed-component networks. Application: Environments with strict electrical standards and cross-border equipment procurement.
Get a Quick Quote for a Eaton HCU2120D5N2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HCU2120D5N2?
Enquire Now
FAQs
The HCU2120D5N2 is a floor-mounted unit with top or bottom cable entry and an integral disconnect, designed for straightforward installation in 380-480V three-phase systems. Plan for proper ventilation to accommodate the 2.8 kW watt losses, and place the enclosure in a protected, accessible location for maintenance and future servicing.
This unit aligns with IEEE Std. 519 and IEC 61000-3-2/3-4 harmonic limits, and carries UL 508C and CSA C22.2 No. 14 certifications. These standards support reliable performance in regulated environments and facilitate cross-border procurement and installation without additional risk.
Yes. The 120A, 380-480V, three-phase design targets systems with substantial harmonic activity from drives and motors. Its active harmonic correction reduces distortion, improves power quality, and helps maintain equipment uptime in data centers and manufacturing lines where clean power is critical.
Key specs include 120A amperage rating, 380-480V voltage range, 50/60 Hz compatibility, and three-phase operation. The unit is floor-mounted with a NEMA 2 enclosure and provides 2.8 kW watt losses. Footprint is substantial to accommodate cooling and service clearance; ensure adequate floor space in the installation area.
Eaton provides a standard warranty under policy 25-000: one year from installation or eighteen months from shipment, whichever occurs first. For maintainability, ensure routine inspections, confirm cabling integrity, and schedule preventive maintenance to preserve performance and extend asset life.
