Eaton HCU2157D6N2 Active Harmonic Correction Unit - UL 508C
Part Number: HCU2157D6N2
Quick Summary
Electricians and engineers rely on Eaton HCU2 active harmonic correction unit to mitigate harmonic distortion in three-phase 600 V systems. This solution targets the common pain point of distorted waveforms that cause efficiency losses and motor wear. It carries critical certifications such as IEEE Std. 519, IEC 61000-3-2, IEC 61000-3-4, UL 508C, and CSA for safe operation in harsh plant environments. By actively correcting harmonics, it supports energy efficiency, improves power factor, and helps facilities stay compliant, all while integrating with existing floor-mount, NEMA 2 enclosures and standard 50/60 Hz operation. This makes it a practical, business-ready choice for manufacturers, data centers, and heavy industries seeking reliable power quality improvements.
Product Information
Extended Description

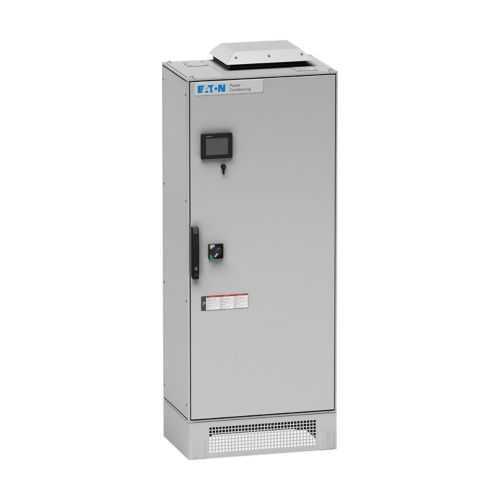

HCU2157D6N2 Eaton: Eaton Active Harmonic Correction unit, 157A, 7.2 kW watt loss, 600V rating, 50/60 Hz, Three-phase, Floor-mount, NEMA 2 enclosure
Product Name
Eaton HCU2 active harmonic correction unit
Catalog Number
HCU2157D6N2
UPC
743172081995
Product Length/Depth
30.71 in
Product Height
87.32 in
Product Width
60.12 in
Product Weight
1636.6 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
IEC 61000 3-2 IEC 61000-3-4 IEEE Std. 519 UL 508C CSA Std. C22.2 No. 14
Product Category
Harmonic Correction Units
Special features
Integral disconnect
Amperage Rating
157A
Cable entry
Top or bottom
Enclosure
NEMA 2
Frequency rating
50/60 Hz
Mounting
Floor
Phase
Three-phase
Type
Active Harmonic Correction unit
Voltage rating
600 V
Watt losses
7.2 kW
