Eaton HCU2200D5N1 Active Harmonic Correction Unit - IEEE 519 Certified
Part Number: HCU2200D5N1
Quick Summary
The Eaton HCU2200D5N1 active harmonic correction unit improves power quality for industrial plants and data centers. This solution mitigates harmonics on three-phase 380–480 V systems, helping to protect sensitive equipment and reduce energy waste. For engineers facing rising THD levels, the unit delivers targeted correction with compact wall-mount installation in a NEMA 1 enclosure. It also supports standard 50/60 Hz operation and a 200 A rating, aligning with common facility electrical designs. With IEC 61000-3-2, IEC 61000-3-4 and IEEE 519 compliance, plus UL 508C and CSA certifications, it meets demanding international standards while yielding measurable business value. The result is improved uptime, reduced losses, and a clearer path to regulatory compliance in automation and manufacturing environments.
Product Information
Extended Description

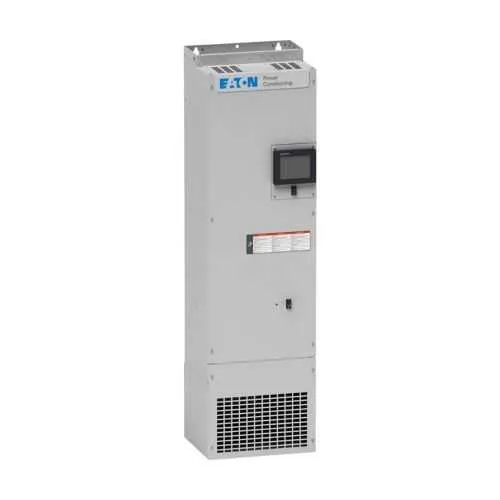

HCU2200D5N1 Eaton: Eaton Active Harmonic Correction unit, 200A, 5.4 kW watt loss, 380-480V rating, 50/60 Hz, Three-phase, Wall-mount, NEMA 1 enclosure
Product Name
Eaton HCU2 active harmonic correction unit
Catalog Number
HCU2200D5N1
UPC
743172081889
Product Length/Depth
22.2 in
Product Height
67.9 in
Product Width
21.8 in
Product Weight
609 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
IEC 61000 3-2 IEC 61000-3-4 IEEE Std. 519 UL 508C CSA Std. C22.2 No. 14
Product Category
Harmonic Correction Units
Amperage Rating
200A
Cable entry
Bottom
Enclosure
NEMA 1
Frequency rating
50/60 Hz
Mounting
Wall
Phase
Three-phase
Type
Active Harmonic Correction unit
Voltage rating
380-480 V
Watt losses
5.4 kW
Feature: 200 A amperage rating. Benefit: Supports heavy motor drives and high-demand cycles without sacrificing correction performance, reducing THD and protecting downstream equipment. Application: Suitable for large manufacturing lines and automated assembly cells where load diversity is common. Feature: 380-480 V voltage rating. Benefit: Provides broad regional compatibility, enabling a single solution across sites with different supply voltages, lowering procurement complexity. Application: Global manufacturing campuses and mixed-voltage facilities. Feature: 50/60 Hz frequency, three-phase input. Benefit: Ensures stable correction across standard industrial power systems, improving reliability in mixed production schedules. Application: Modern factories with diverse line frequencies. Feature: NEMA 1 wall-mount enclosure with bottom cable entry. Benefit: Simplified retrofits and space-efficient installations in control rooms or service areas, with easy maintenance access. Application: Tight plant footprints and retrofit projects. Feature: 5.4 kW watt losses. Benefit: Maintains overall system efficiency while delivering harmonic correction, contributing to lower energy costs over time. Application: Power-quality upgrades in energy-conscious facilities. Feature: Dimensions and weight (22.2 in L x 67.9 in H x 21.8 in W, 609 lb). Benefit: Clear space planning for retrofit projects and detailed enclosure planning during design. Application: Data centers and manufacturing floors with strict footprint constraints. Feature: Certifications (IEC 61000-3-2/3-4, IEEE Std. 519, UL 508C, CSA No. 14). Benefit: Demonstrates regulatory compliance and reliable performance in safety-critical environments. Application: Hospitals, laboratories, and industrial automation facilities seeking documented standards adherence. Feature: Warranty coverage and support. Benefit: Reduces life-cycle risk with a one-year policy from installation or 18 months from shipment, whichever comes first. Application: Procurement planning and service level agreements in capital projects.
Get a Quick Quote for a Eaton HCU2200D5N1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HCU2200D5N1?
Enquire Now
FAQs
The HCU2200D5N1 is designed for wall-mount installation in a NEMA 1 enclosure with bottom cable entry. Plan for adequate rear and side clearance for service access, and confirm a 380–480 V three-phase power supply. Ensure proper mounting surface and compatible conduit routing, and allow space for any required derating or future expansion. Labeling and safety interlocks should follow local electrical codes.
This unit provides active harmonic correction for a 200 A, 380–480 V three-phase system at 50/60 Hz, with a measured watt loss of 5.4 kW. Expect reduced total harmonic distortion (THD), improved power quality, and better protection for sensitive loads such as drives, switchgear, and PLCs, resulting in fewer nuisance trips and longer equipment life.
Yes. The HCU2200D5N1 is specifically rated for 380–480 V, three-phase supply and supports both 50 Hz and 60 Hz operation, making it suitable for global industrial installations that require consistent harmonic correction across varying electrical standards.
The unit carries IEC 61000-3-2, IEC 61000-3-4, IEEE Std. 519, UL 508C, and CSA Std. C22.2 No. 14 certifications. These indicate compliance with electromagnetic compatibility limits, electrical safety, and overall suitability for industrial automation environments, helping meet regulatory requirements and improving risk management for capital projects.
ROI derives from reduced energy losses, lower fault rates due to improved power quality, and extended equipment life. The unit offers a straightforward wall-mount installation with minimal ongoing maintenance; plan periodic inspections per Eaton’s guidance, with the included one-year warranty (18 months from shipment, depending on installation date) to minimize downtime risk.
