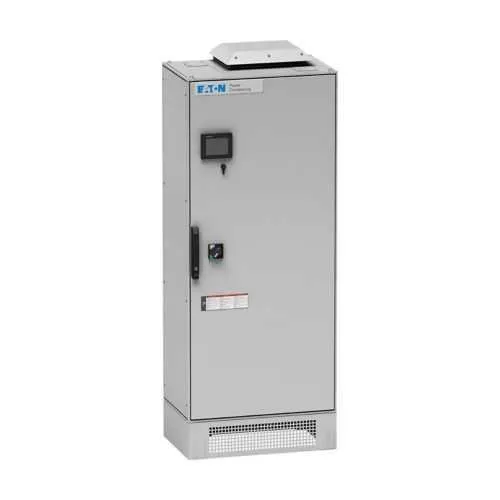

Eaton HCU2200D5N2 Harmonic Correction Unit - IEEE 519
Part Number: HCU2200D5N2
Quick Summary
Eaton HCU2200D5N2 active harmonic correction unit improves power quality for large industrial drives, helping maintain stable voltage, reduce voltage drop, and protect sensitive equipment across manufacturing floors. In practice, harmonic distortion can cause nuisance trips, overheating, and higher utility bills, complicating maintenance schedules and reducing line uptime. UL 508C, IEC 61000-3-2/3-4, and IEEE 519 compliance align with international safety, EMI/EMC performance, and utility requirements, helping you avoid penalties. The result is more predictable operations, easier compliance management, and a clear path to energy efficiency across HVAC, conveyors, and motors. This makes budgeting for power quality upgrades straightforward and reduces the risk of unexpected downtime.
Product Information
Extended Description
HCU2200D5N2 Eaton: Eaton active harmonic correction unit, 200A, 5.4 kW watt loss, 380-480V rating, 50/60 Hz, Three-phase, Floor-mount, NEMA 2 enclosure
Product Name
Eaton HCU2 active harmonic correction unit
Catalog Number
HCU2200D5N2
UPC
743172081971
Product Length/Depth
89 in
Product Height
34 in
Product Width
41 in
Product Weight
1075 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
IEC 61000 3-2 IEC 61000-3-4 IEEE Std. 519 UL 508C CSA Std. C22.2 No. 14
Product Category
Harmonic Correction Units
Special features
Integral disconnect
Amperage Rating
200A
Cable entry
Top or bottom
Enclosure
NEMA 2
Frequency rating
50/60 Hz
Mounting
Floor
Phase
Three-phase
Type
Active Harmonic Correction unit
Voltage rating
380-480 V
Watt losses
5.4 kW
Eaton Specification Sheet - HCU2200D5N2
Selling Policy 25-000 - Distribution and Control Products and Services
Feature: 200 A amperage rating enables robust harmonic correction for large installations. Business impact: actively reduces harmonic currents, lowers total harmonic distortion, and improves power factor, delivering measurable energy savings. Application: ideal for facilities with multiple VFDs, motors, and nonlinear loads in three-phase 380-480 V systems. Feature: Integral disconnect simplifies wiring and enhances safety during servicing. Business impact: reduces field wiring, speeds commissioning, and minimizes downtime. Application: floor-mounted units in mechanical rooms with easy top or bottom cable entry. Feature: 5.4 kW watt losses indicate efficient active correction relative to harmonic benefits. Business impact: predictable energy use, improved thermal performance, and consistent correction under load swings. Application: continuous processes, conveyors, and heavy motor loads. Feature: UL 508C, CSA, IEC 61000-3-2/3-4, IEEE 519 certifications. Business impact: regulatory compliance, EMI/EMC reliability, and utility compatibility. Application: industrial facilities with strict electrical standards and customer audits. Feature: Floor mounting, 50/60 Hz compatibility, and top/bottom cable entry. Business impact: installation flexibility, scalable integration with existing gear, and easy service access. Application: data centers, manufacturing lines, and packaging facilities requiring robust power correction.
Get a Quick Quote for a Eaton HCU2200D5N2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HCU2200D5N2?
Enquire Now
FAQs
When installing the HCU2200D5N2, plan for floor-mount placement in a clean electrical room with 100% service access. Choose a convenient location to allow top or bottom cable entry and ensure proper ventilation and clearance around the NEMA 2 enclosure. The integral disconnect simplifies wiring and safety procedures during commissioning and maintenance, reducing on-site complexity.
The unit provides active harmonic correction with a 200 A rating and 5.4 kW watt losses, delivering significant reductions in total harmonic distortion and improved power factor. This translates to lower transformer loading, reduced equipment wear, fewer nuisance trips, and better compliance with IEEE 519 and IEC 61000-3-2/3-4 in demanding industrial environments.
Yes. The HCU2200D5N2 is designed for three-phase 380-480 V systems with substantial nonlinear loading from VFDs, motors, pumps, and conveyors. It actively mitigates harmonics, stabilizes voltage, and enhances motor efficiency. Its compatibility with floor mounting and flexible cable entry supports seamless integration into existing power distribution without major facility upgrades.
This unit is UL 508C and CSA certified, and complies with IEC 61000-3-2/3-4 as well as IEEE Std. 519. These certifications cover safety, electromagnetic compatibility, and harmonic performance, helping you meet regulatory requirements, pass audits, and ensure reliable operation in regulated manufacturing environments.
Eaton offers a one-year warranty from installation or eighteen months from shipment, whichever comes first. Maintenance is minimal thanks to solid-state harmonic correction and a robust floor-mount design. The ROI comes from reduced energy losses due to harmonics, extended equipment life, and improved uptime, delivering lower total cost of ownership in long-running production lines.
