Eaton HCU2200D7N2 Active Harmonic Correction Unit - IEEE Std. 519
Part Number: HCU2200D7N2
Quick Summary
Eaton HCU2200D7N2 active harmonic correction unit optimizes power quality for large industrial loads in data centers and manufacturing plants. It addresses the pain point of rising harmonic penalties and equipment stress caused by non-linear loads. This solution carries critical certifications including IEC 61000-3-2, IEC 61000-3-4, and IEEE Std. 519, with UL 508C and CSA C22.2 No. 14 supporting safe electrical integration. Designed for 690V systems, 50/60 Hz, and three-phase service, it also provides a robust 200A rating in a floor-mounted, NEMA 2 enclosure. By reducing harmonic distortion, it helps facilities meet regulatory requirements while boosting overall efficiency and reliability.
Product Information
Extended Description

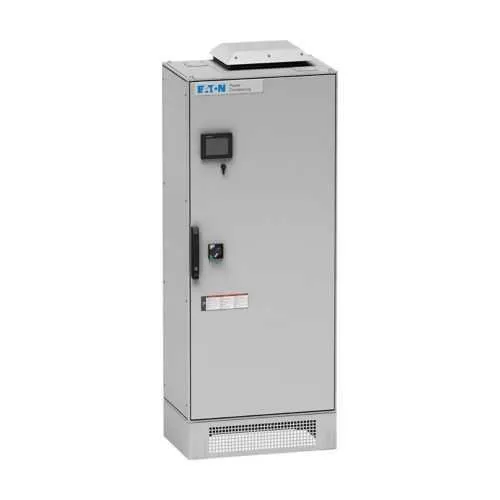

HCU2200D7N2 Eaton: Eaton Active Harmonic Correction unit, 200A, 11.4 kW watt loss, 690V rating, 50/60 Hz, Three-phase, Floor-mount, NEMA 2 enclosure
Product Name
Eaton HCU2 active harmonic correction unit
Catalog Number
HCU2200D7N2
UPC
786689641078
Product Length/Depth
61.12 in
Product Height
88.32 in
Product Width
29.62 in
Product Weight
2117 lb
Certifications
IEC 61000 3-2 IEC 61000-3-4 IEEE Std. 519 UL 508C CSA Std. C22.2 No. 14
Product Category
Harmonic Correction Units
Amperage Rating
200A
Enclosure
NEMA 2
Frequency rating
50/60 Hz
Mounting
Floor
Phase
Three-phase
Type
Active Harmonic Correction unit
Voltage rating
690 V
Watt losses
11.4 kW
