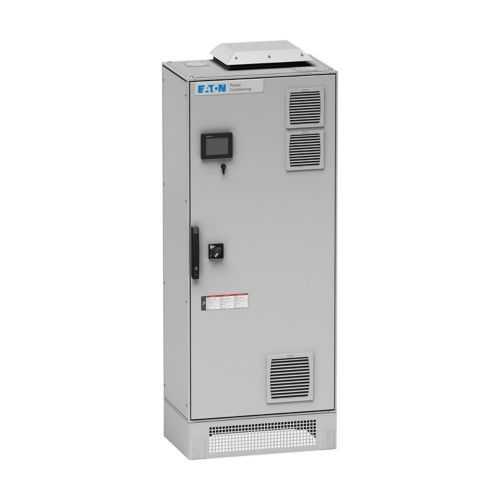

Eaton HCU2235D6N12 Active Harmonic Correction - IEEE 519
Part Number: HCU2235D6N12
Quick Summary
HCU2 active harmonic correction unit optimizes power quality for large three-phase industrial loads. It addresses the common pain point of energy waste, nuisance trips, and distorted voltage profiles caused by nonlinear loads. With IEEE Std. 519, IEC 61000-3-2/3-4 compliance and UL and CSA certifications, it helps you meet stringent electrical standards while maintaining reliability. This solution supports 235A current, a 600 V rating, and 50/60 Hz operation, delivering robust performance in demanding environments. The floor-mounted NEMA 12 enclosure simplifies installation on data centers, manufacturing floors, and processing facilities. The HCU2 also integrates an integral disconnect and flexible cable-entry options to fit varied plant layouts, delivering measurable business value through improved power quality and reduced penalties.
Product Information
Extended Description
HCU2235D6N12 Eaton: Eaton Active Harmonic Correction unit, 235A, 9.9 kW watt loss, 600V rating, 50/60 Hz, Three-phase, Floor-mount, NEMA 12 enclosure
Product Name
Eaton HCU2 active harmonic correction unit
Catalog Number
HCU2235D6N12
UPC
743172081872
Product Length/Depth
30.71 in
Product Height
87.32 in
Product Width
60.12 in
Product Weight
1894 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
IEC 61000 3-2 IEC 61000-3-4 IEEE Std. 519 UL 508C CSA Std. C22.2 No. 14
Product Category
Harmonic Correction Units
Special features
Integral disconnect
Amperage Rating
235A
Cable entry
Top or bottom
Enclosure
NEMA 12
Frequency rating
50/60 Hz
Mounting
Floor
Phase
Three-phase
Type
Active Harmonic Correction unit
Voltage rating
600 V
Watt losses
9.9 kW
Feature: Active harmonic correction with 235A rating. Business impact: Reduces harmonic distortion, improves power factor, and lowers energy waste, leading to reduced utility penalties and equipment stress. Application: Suitable for large three-phase industrial plants with nonlinear loads such as motors and drives. Feature: 600 V, 50/60 Hz, three-phase performance. Business impact: Ensures compatibility with common facility electrical systems, supporting reliable operation across shifts and loads. Application: Manufacturing lines and process facilities requiring robust power quality under varying loads. Feature: NEMA 12 floor-mount enclosure. Business impact: Provides rugged protection against dust and splashes, enabling safe operation in open plant environments and ease of service access. Application: Floor-mounted rooms, mechanical spaces, and data centers with strict cleanliness standards. Feature: Integral disconnect. Business impact: Simplifies compliance with lockout/tagout procedures, reducing maintenance downtime and improving worker safety. Application: Routine service and testing in busy plant environments. Feature: Top or bottom cable entry. Business impact: Installation flexibility reduces wiring conflicts and rework, speeding up commissioning. Application: Retrofit projects and new installations with existing conduit layouts. Feature: Certifications including IEC 61000-3-2, IEC 61000-3-4, IEEE 519, UL 508C, CSA C22.2 No. 14. Business impact: Demonstrates regulatory compliance and industry-standard performance, easing procurement and audit cycles. Application: Electrical design reviews, compliance documentation, and vendor qualification processes.
Get a Quick Quote for a Eaton HCU2235D6N12
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HCU2235D6N12?
Enquire Now
FAQs
The HCU2235D6N12 is designed for floor mounting in NEMA 12 environments, with top or bottom cable-entry options for flexible routing. It includes an integral disconnect for safe servicing and easy alignment with lockout/tagout procedures. Ensure sufficient floor space for access, clearance for cable connections, and compatibility with 600 V three-phase systems. This minimizes retrofit challenges and accelerates commissioning.
Key specs include a 235 A amperage rating, 600 V voltage rating, 50/60 Hz frequency, three-phase configuration, and a 30.71 in depth, 87.32 in height, and 60.12 in width footprint with a 1894 lb weight. Enclosure is NEMA 12, with floor mounting and top/bottom cable entry. The unit features integral disconnect and compliance with IEEE 519 and IEC 61000 standards.
Yes. The Eaton HCU2235D6N12 is designed to meet IEC 61000-3-2 and IEC 61000-3-4 requirements, and it complies with IEEE Std. 519. These standards address harmonic current limits and power quality performance, helping facilities avoid penalties and maintain reliable operation across industrial loads.
Industries with heavy nonlinear loads—such as steel, chemical processing, data centers, and large motor drives—benefit most. These units mitigate harmonics, reduce voltage distortion, and improve power factor. As a result, there are fewer nuisance trips, lower energy costs, and easier regulatory compliance in environments with stringent power quality requirements.
Warranty terms specify one year from installation or eighteen months from shipment, whichever occurs first. Eaton provides standard selling-policy support, and customers should expect access to documentation, spare parts, and technical assistance to support installation, commissioning, and ongoing operation for maintaining power quality over the unit’s life cycle.
