Eaton HCU2300D5N12 Active Harmonic Correction Unit - IEEE 519
Part Number: HCU2300D5N12
Quick Summary
Eaton HCU2300D5N12 Active Harmonic Correction Unit reduces electrical distortion in large three-phase facilities. Uncontrolled harmonics drive overheating, misoperation of sensitive drives, and higher utility charges, which you must avoid. Certified to IEC 61000-3-2/3-4 and IEEE Std. 519, with UL 508C and CSA compliance supports rapid approvals. Designed for 380-480 V systems and floor-mounted NEMA 12 enclosures, it delivers reliable harmonic remediation while simplifying installation, commissioning, and ongoing maintenance. This combination translates to measurable efficiency gains and lower total cost of ownership for industrial automation environments and power quality management programs.
Product Information
Extended Description

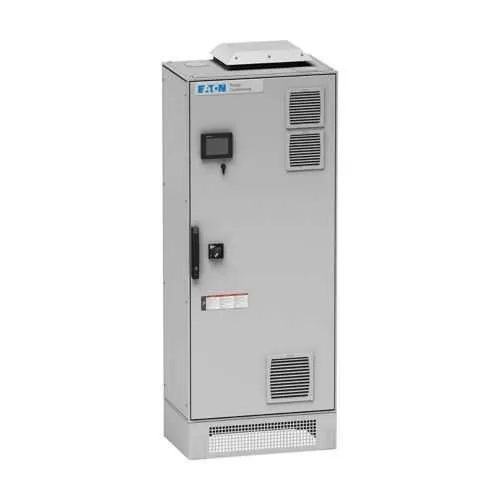

HCU2300D5N12 Eaton: Eaton Active harmonic correction unit, 300A, 7.1 kW watt loss, 380-480V rating, 50/60 Hz, Three-phase, Floor-mount, NEMA 12 enclosure
Product Name
Eaton HCU2 active harmonic correction unit
Catalog Number
HCU2300D5N12
UPC
743172082015
Product Length/Depth
47 in
Product Height
91 in
Product Width
42 in
Product Weight
1175 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
IEC 61000 3-2 IEC 61000-3-4 IEEE Std. 519 UL 508C CSA Std. C22.2 No. 14
Product Category
Harmonic Correction Units
Special features
Integral disconnect
Amperage Rating
300 A
Cable entry
Top or bottom
Enclosure
NEMA 12
Frequency rating
50/60 Hz
Mounting
Floor
Phase
Three-phase
Type
Active Harmonic Correction unit
Voltage rating
380-480 V
Watt losses
7.1 kW
Feature: 300 A amperage rating and active harmonic correction capability. Business Impact: Targets and mitigates harmonic currents in high-load, three-phase systems, reducing stress on transformers and motors while improving overall system efficiency. Application: Large manufacturing lines and process plants operating at 380-480 V with non-linear loads. Feature: 380-480 V, 50/60 Hz, three-phase operation with 7.1 kW watt loss specification. Business Impact: Delivers predictable performance within standard industrial power rails, enabling precise harmonic compensation and energy savings. Application: OEM panel builds and retrofit projects in industrial facilities seeking compliant power quality solutions.Feature: NEMA 12 floor-mount enclosure with integral disconnect and top or bottom cable entry. Business Impact: Simplifies installation, enhances safety, and reduces wiring labor during site commissioning. Application: New builds and retrofits on factory floors where rugged protection and flexible cabling are required.Feature: Compliance with IEC 61000-3-2/3-4, IEEE Std. 519, UL 508C, and CSA C22.2 No. 14. Business Impact: Streamlines regulatory approvals, reduces risk of non-conformance, and supports global deployments. Application: Plants pursuing rigorous electrical standards and supplier qualification programs.Feature: 300 A, floor-mounted, active harmonic correction with integral disconnect. Business Impact: Improves power quality management while maintaining easy serviceability and fast fault isolation. Application: Heavy automation lines, presses, and conveyors in manufacturing facilities.
