Eaton HCUN030Y4CH00 HCU2 Harmonic Correction - IEEE 519
Part Number: HCUN030Y4CH00
Quick Summary
Eaton HCUN030Y4CH00 is an active harmonic correction unit for improving power quality in industrial facilities. It reduces harmonic distortion, preventing equipment stress, nuisance trips, and energy waste from non-linear loads. Certified to IEC 61000-3-2, IEC 61000-3-4, and IEEE Std. 519, with UL 508C and CSA C22.2 No. 14 compliance. As a modular chassis solution rated for 30 A and 208-415 Vac, it fits common panel layouts and reduces overall cabinet footprint. This translates to faster deployment, lower total cost of ownership, and reliable support for critical automation and manufacturing processes. Designed for 208-415 Vac, 3ph+N operation, it supports modern industrial energy strategies without sacrificing safety or compliance.
Product Information
Extended Description

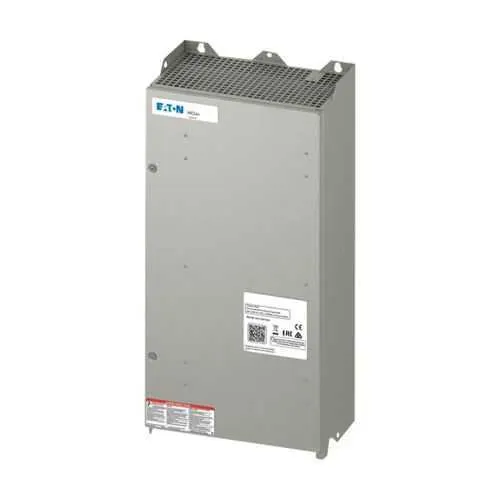

HCUN030Y4CH00 Eaton: Eaton HCU2 active harmonic correction unit, 30 A, 208-415 Vac, 3ph+N chassis IP00
Product Name
Eaton HCU2 active harmonic correction unit
Catalog Number
HCUN030Y4CH00
UPC
786689647711
Product Length/Depth
16.43 in
Product Height
43.01 in
Product Width
200 in
Product Weight
494 lb
Certifications
IEC 61000 3-2 IEC 61000-3-4 IEEE Std. 519 UL 508C CSA Std. C22.2 No. 14
Amperage Rating
30 A
Feature: 30 A amperage rating and 208-415 Vac 3ph+N compatibility. Business Impact: Enables direct integration with standard industrial drives, PLCs, and non-linear loads, reducing stray harmonics at the source and protecting switchgear from thermal stress. Application: Suitable for motor drives, presses, conveyors, and mixed-load industrial lines. Feature: Active harmonic correction (HCU2) technology. Business Impact: Actively compensates harmonic currents to improve power quality, lowers transformer and switchgear losses, and extends equipment life. Application: Data centers, packaging lines, and automation cells with high non-linear loading. Feature: Regulatory compliance and standards alignment. Business Impact: Facilitates grid interaction and utility coordination by meeting IEEE 519, IEC 61000-3-2/3-4, and related safety requirements, reducing commissioning risk. Application: Plant-level rollouts and contractor-driven installations with strict compliance needs. Feature: Modular chassis design with IP00 chassis protection. Business Impact: Simplifies installation and serviceability, allows flexible rack/stack configurations, and minimizes panel footprint. Application: Retrofit projects in existing cabinets and new-build panels where space is at a premium. Feature: Comprehensive datasheet-backed installation and support. Business Impact: Streamlines procurement, reduces ambiguity in specifications, and supports fast commissioning with clear maintenance guidance. Application: Engineering offices, procurement teams, and field service teams integrating harmonics mitigation into automation strategies.
Get a Quick Quote for a Eaton HCUN030Y4CH00
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HCUN030Y4CH00?
Enquire Now
FAQs
HCUN030Y4CH00 is designed for 208-415 Vac, 3ph+N service with a 30 A rating and IP0x chassis. It integrates with standard switchgear and electrical cabinets, enabling straightforward retrofit or new-install harmonics mitigation without extensive panel redesign. The unit supports common DIN rail or rack-based layouts typical in industrial facilities.
The unit actively corrects harmonic currents, reducing total harmonic distortion and limiting heat buildup in transformers and conductors. By meeting IEEE Std. 519 and IEC 61000-3-2/3-4 targets, it lowers energy losses, minimizes nuisance trips, and extends the life of motors, drives, and power conversion equipment in automation lines.
Yes. Its 30 A rating, 208-415 Vac, and 3ph+N compatibility suit data centers with power-intensive non-linear loads and manufacturing lines with multiple VFDs and drives. The solution provides consistent harmonic mitigation, improves reliability, and reduces cooling loads associated with stray harmonic heating in critical equipment.
HCUN030Y4CH00 carries IEC 61000-3-2 and IEC 61000-3-4 compliance, IEEE Std. 519 alignment, and UL 508C and CSA C22.2 No. 14 considerations. These certifications support safe operation in regulated environments, ease utility coordination, and simplify approvals during panel assembly and commissioning.
By reducing harmonic losses and preventing downstream equipment stress, the unit lowers energy costs and minimizes downtime, delivering a favorable ROI over typical asset lifetimes. Routine maintenance is straightforward due to modular chassis design and documented specifications, helping maintenance teams plan service windows with minimal disruption.
