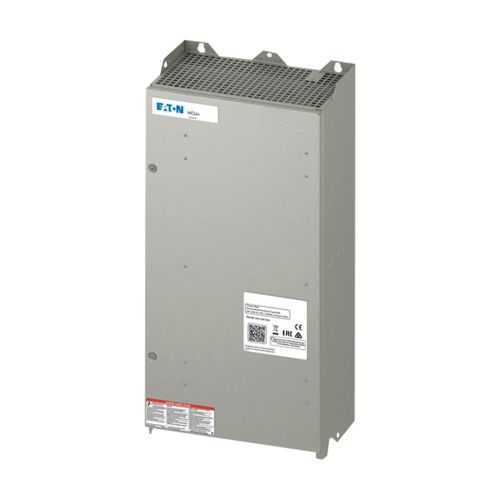

Eaton HCUN050Y4N1 HCU2 active harmonic correction unit - UL Type 1
Part Number: HCUN050Y4N1
Quick Summary
Eaton HCU2 active harmonic correction unit reduces harmonic distortion in three-phase industrial power systems. Many facilities struggle with efficiency losses and equipment wear caused by harmonics and voltage distortion. Key certifications include UL Type 1 for indoor wall-mount installations; CE marking and enclosure protection are common considerations for global deployments. This solution delivers power quality improvements and robust compatibility with standard industrial automation panels, helping engineering teams meet regulatory demands while optimizing energy use and equipment life.
Product Information
Extended Description
HCUN050Y4N1 Eaton: Eaton active harmonic correction unit, HCUn 50A 208-415Vac 3ph+N wall mount UL Type 1
Product Name
Eaton HCU2 active harmonic correction unit
Catalog Number
HCUN050Y4N1
UPC
786689646455
Product Length/Depth
10.43 in
Product Height
56.69 in
Product Width
17.52 in
Product Weight
163.14 lb
Product Category
Harmonic Correction Units
Amperage Rating
50A
Mounting
Wall
Phase
Three-phase
Type
Active Harmonic Correction unit
Voltage rating
208-415 Vac
Feature: Active harmonic correction technology targets and neutralizes harmonic currents at their source. Benefit: Improves overall power factor, reduces energy waste, and minimizes heat in downstream equipment. Application: Ideal for data centers, machine tooling, and motor drive-heavy automation lines seeking measurable efficiency gains. Feature: 50A amperage rating with a 208-415 Vac, three-phase input. Benefit: Supports heavy-load applications without overloading feeders, enabling reliable operation of large control panels and drives. Application: Factory floors with high motor counts and variable loads benefit from predictable current handling and reduced distortion. Feature: Wall-mount enclosure design (UL Type 1). Benefit: Simplifies installation, reduces control panel footprint, and eases service access for maintenance. Application: Replacements and retrofits in existing control rooms and instrument panels where space is at a premium. Feature: Durable industrial build with defined dimensions (10.43 in x 56.69 in x 17.52 in) and 163.14 lb weight. Benefit: Stable installation in fixed locations with predictable thermal and mechanical performance. Application: New builds and upgrades in manufacturing lines and data centers requiring rugged, stand-alone harmonic management. Feature: Clear product categorization as Harmonic Correction Units with documented specifications. Benefit: Accelerates procurement and ensures compatibility with power quality standards. Application: Engineering teams can specify HCUN050Y4N1 confidently in electrical design packages and material lists.
Get a Quick Quote for a Eaton HCUN050Y4N1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HCUN050Y4N1?
Enquire Now
FAQs
HCUN050Y4N1 is designed for wall-mount indoor use with UL Type 1 protection. When retrofitting, ensure adequate front clearance for service access, proper panel mounting surfaces, and compatibility with 208-415 Vac three-phase feeders. Verify feeder protection sizing and ensure panel space accommodates the device height and wiring routes to maintain safe installation clearances.
An active harmonic correction unit detects harmonic content in the supply current and injects counter-active harmonics to cancel distortion, improving power factor and reducing current peak demands. For HCUN050Y4N1, the 50A, 208-415 Vac, three-phase configuration enables effective correction in mid-to-large scale industrial loads while maintaining stable voltage regulation.
Yes. HCUN050Y4N1 targets three-phase power quality, making it well suited for data centers and motor-drive-intensive environments. By reducing harmonic currents, it lowers cooling requirements, enhances efficiency, and extends equipment life, which is particularly valuable where uptime and reliability are critical.
HCUN050Y4N1 is specified with UL Type 1 enclosure protection for indoor wall-mount installations. In global deployments, CE marking may be considered where required by regional regulations. Always verify site-specific electrical codes and enclosure requirements to ensure full compliance for your installation.
The unit delivers measurable ROI through improved power quality, lower energy waste, and reduced heat in downstream equipment, translating to energy savings and longer life for motors and drives. Maintenance primarily involves periodic inspections and wiring integrity checks; follow Eaton’s datasheet guidance to maintain performance and reliability.
