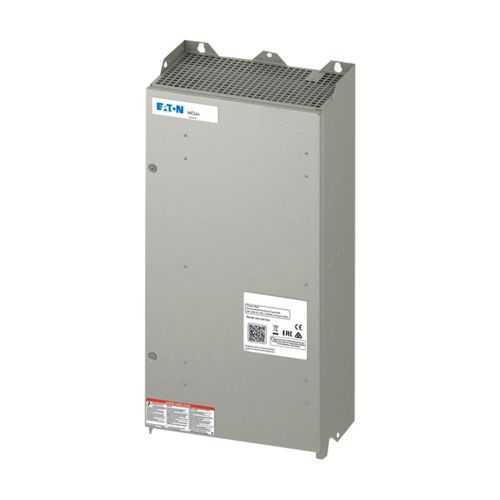

Eaton HCUN060Y4CH00E HCU2 Active Harmonic Correction - 60A
Part Number: HCUN060Y4CH00E
Quick Summary
HCUN060Y4CH00E HCU2 active harmonic correction unit reduces harmonics in 60 A, 208-415 Vac three‑phase systems. Many facilities struggle with motor overheating, nuisance trips, and energy waste caused by harmonic distortion. The device carries IEC 61000-3-2, IEC 61000-3-4, and IEEE Std. 519 certifications, with UL 508C and CSA C22.2 No. 14 for safety and reliability. Beyond compliance, it delivers measurable power quality improvements and smoother drive operation, helping to protect equipment and reduce maintenance costs. Its IP00 chassis expansion module enables scalable installation alongside existing switchgear, making deployment straightforward in new builds and retrofits.
Product Information
Extended Description
HCUN060Y4CH00E Eaton: Eaton HCU2 active harmonic correction unit, 60 A, 208-415 Vac, 3ph+N chassis IP00 expansion module
Product Name
Eaton HCU2 active harmonic correction unit
Catalog Number
HCUN060Y4CH00E
UPC
786689647742
Product Length/Depth
16.43 in
Product Height
43.01 in
Product Width
200 in
Product Weight
494 lb
Certifications
IEC 61000 3-2 IEC 61000-3-4 IEEE Std. 519 UL 508C CSA Std. C22.2 No. 14
Amperage Rating
60 A
Feature: Active harmonic correction technology targets dominant harmonic currents in the supply. Business Impact: Reducing distortion improves voltage waveform integrity, reduces heating, and enhances motor and drive efficiency. Application: Suited for facilities with multiple drives, conveyors, and pumps running on 208-415 Vac 3ph+N. Feature: 60 A nominal rating supports common industrial loads without oversizing. Business Impact: Avoids unnecessary equipment upgrades while delivering reliable harmonic mitigation. Application: Ideal for mid-size manufacturing lines and machine centers. Feature: 208-415 Vac 3ph+N compatibility. Business Impact: Enables seamless integration with standard industrial power architectures and existing Eaton controllers. Application: Panel installations, retrofit projects, and new builds in electrical rooms. Feature: IP00 expansion module design. Business Impact: Facilitates scalable expansion and straightforward field installation within standard enclosures. Application: Open panel environments, compatibility with typical DIN rail or cabinet layouts. Feature: Comprehensive safety and standards certifications. Business Impact: Compliance reduces regulatory risk and enables easier procurement in regulated sectors. Application: Data centers, food and beverage, and process industries that require IEEE, IEC, UL, and CSA approvals. Feature: Robust construction for industrial environments. Business Impact: Improves uptime and resilience against voltage fluctuations. Application: Plant floors with ambient dust, heat, or vibration.
Get a Quick Quote for a Eaton HCUN060Y4CH00E
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HCUN060Y4CH00E?
Enquire Now
FAQs
The HCUN060Y4CH00E is designed for panel integration in 208-415 Vac, 3ph+N configurations. It uses an IP00 expansion module to connect within standard electrical rooms, aligning with existing switchgear. Follow the Eaton wiring diagram for phase sequencing and neutral connections, observe proper clearance, and perform lockout-tagout procedures. A qualified electrical technician should verify all terminations to ensure proper harmonic correction operation.
The HCU2 actively corrects harmonic currents, resulting in reduced distortion on the supply and more stable voltage. This translates to lower heat generation in motors and drives, fewer nuisance trips, and better overall efficiency. Real-world results depend on load composition and existing harmonic levels, but the unit is designed to provide consistent power quality improvements across 208-415 Vac 3ph+N systems.
Yes. The 60 A, 208-415 Vac, 3ph+N configuration covers many data centers and manufacturing applications with multiple drives and non-linear loads. The IP00 expansion module supports scalable deployment in standard panel spaces, and the unit integrates with common Eaton control ecosystems, enabling straightforward retrofits or new installations without extensive system rewiring.
The HCUN060Y4CH00E meets IEC 61000-3-2, IEC 61000-3-4, and IEEE Std. 519 for harmonic integrity and grid compatibility, plus safety certifications UL 508C and CSA C22.2 No. 14. These approvals help regulatory compliance, supplier qualification, and procurement processes in regulated environments such as healthcare, data centers, and process industries.
Maintenance is typically minimal beyond periodic inspection of terminations and enclosure integrity. The primary business value comes from improved power quality, reduced drive faults, and lower energy waste due to harmonics, which can translate to increased equipment uptime and longer motor life. The device’s compatibility with existing Eaton systems and IP00 expansion support helps keep installation and future expansions cost-effective.
