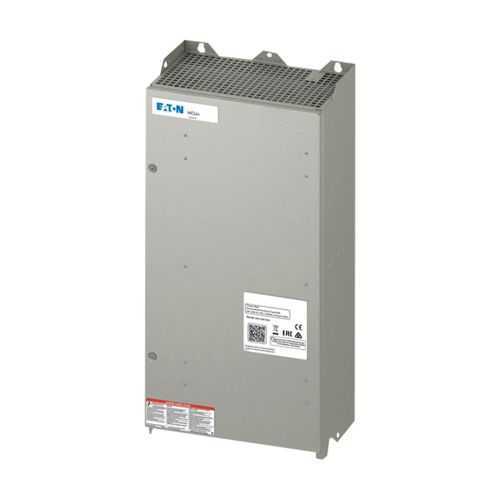

Eaton HCUN060Y4N1 Harmonic Correction Unit - UL Type 1
Part Number: HCUN060Y4N1
Quick Summary
Eaton HCUN060Y4N1 active harmonic correction unit improves power quality in three-phase industrial systems. It helps address harmonics that cause overheating, equipment stress, and higher energy costs in manufacturing and automation facilities. UL Type 1 enclosure listing supports safe wall-mount installation, and its broad 208–415 Vac three-phase rating ensures compatibility across many global sites. By actively reducing harmonic distortion and improving power factor, it lowers energy waste, extends motor life, and lowers maintenance costs. The compact wall-mounted form minimizes footprint in control rooms while delivering fast response to dynamic loads, making it a practical choice for OEMs, integrators, and maintenance teams seeking reliable, compliant power quality improvements.
Product Information
Extended Description
HCUN060Y4N1 Eaton: Eaton active harmonic correction unit, HCUn 60A 208-415Vac 3ph+N wall mount UL Type 1
Product Name
Eaton HCU2 active harmonic correction unit
Catalog Number
HCUN060Y4N1
UPC
786689646363
Product Length/Depth
10.43 in
Product Height
56.69 in
Product Width
17.52 in
Product Weight
163.14 lb
Product Category
Harmonic Correction Units
Amperage Rating
60 A
Mounting
Wall
Phase
Three-phase
Type
Active Harmonic Correction unit
Voltage rating
208-415 Vac
Feature → Business Impact → Application: Active Harmonic Correction technology reduces harmonic distortion in three-phase networks, improving power factor and reducing equipment stress, which translates to lower energy bills and longer motor life in manufacturing lines and data centers. Application: Great for facilities with mixed loads, drives, and PLCs that generate noticeable harmonic currents. Feature → Business Impact → Application: 60 A amperage rating provides robust correction for medium-sized electrical distributions, enabling tighter control of voltage and current without overprovisioning gear. Application: Suitable for mid-range production floors and automation cabinets where space and efficiency matter. Feature → Business Impact → Application: 208–415 Vac voltage tolerance supports global deployments without a different hardware footprint, simplifying buys and spare-part inventories. Application: Ideal for plants with varied supply voltages or multi-site rollouts. Feature → Business Impact → Application: Wall mounting saves control-room real estate and simplifies installation, reducing project lead times and wiring complexity. Application: OEMs can integrate quickly with existing Eaton ecosystems and service frameworks. Feature → Business Impact → Application: UL Type 1 enclosure ensures safe operation in typical industrial environments, addressing compliance and installation concerns for facility managers. Application: Maintenance teams appreciate predictable performance and easier upgrade paths. Feature → Business Impact → Application: Passive compatibility with standard electrical distributions minimizes downtime during retrofits, supporting retrofit projects and line expansions.
Get a Quick Quote for a Eaton HCUN060Y4N1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HCUN060Y4N1?
Enquire Now
FAQs
Yes. HCUN060Y4N1 is designed for 208-415 Vac three-phase systems and wall-mounted installations, aligning with common Eaton power quality architectures. It integrates with standard distribution panels and drivers, reducing harmonics without requiring extensive rewiring. Ensure electrical clearance and proper enclosure access for safe service and maintenance.
Active harmonic correction units target notable reductions in total harmonic distortion by actively regulating current waveforms. In practical terms, expect improved power factor, lower neutral currents, cooler equipment operation, and reduced overheating on sensitive loads like VFD-driven motors and drives, contributing to longer motor life and energy savings.
Absolutely. The 60 A rating and 208-415 Vac compatibility make it well-suited for data centers and manufacturing floors with diverse equipment loads. The wall-mount design saves space in crowded electrical rooms, while UL Type 1 safety ratings provide confidence in industrial deployments and routine maintenance activities.
HCUN060Y4N1 carries UL Type 1 enclosure labeling, enabling safe wall-mount installation in typical industrial environments. The device is engineered for three-phase operation within a wide voltage range, supporting compliance with common electrical safety expectations in global facilities.
Installation is streamlined by the compact wall-mount form and broad voltage compatibility, reducing space and wiring requirements. By lowering harmonic losses and improving power factor, facilities can realize energy savings, lower maintenance costs, and extended equipment life, leading to a favorable ROI during routine asset refresh cycles.
