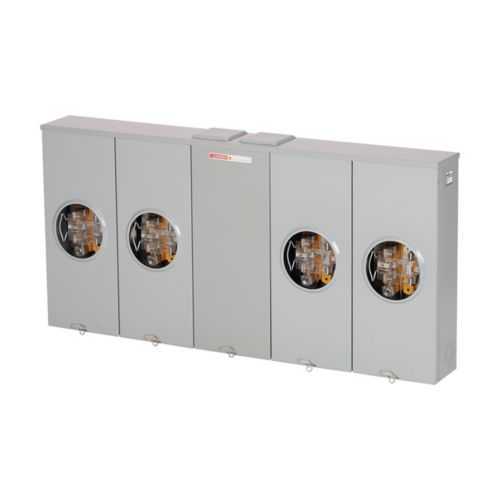

Eaton HEL20432CGR1N Meter Pack UL Listed
Part Number: HEL20432CGR1N
Quick Summary
The Eaton HEL20432CGR1N Meter Pack is a compact, side‑mount metering solution designed for commercial and light industrial panels. It addresses common installation headaches by offering a ringless, lever-bypass design that speeds wiring and service expedites. This unit carries UL listing and features galvanized steel construction with ANSI 61 paint for durability in demanding environments. With a focus on reliability and safety, it integrates seamlessly with Eaton’s B‑Line series and supports efficient load management in modern electrical distribution. For engineers and procurement teams, this meter pack delivers predictable performance, easier maintenance, and a strong total cost of ownership through robust materials and straightforward installation.
Product Information
Extended Description
HEL20432CGR1N Eaton: Eaton B-Line series horizontal meter pack, Ringless, 3, ANSI 61 paint, Galvanized steel, Both, 3/8”-16 UNC stud, #6 AWG-350 KCMIL, Side, 1, 3, 200A,Lever
Product Name
Eaton B-Line series horizontal meter pack
Catalog Number
HEL20432CGR1N
UPC
782051397727
Product Length/Depth
6.625 in
Product Height
25 in
Product Width
30.75 in
Product Weight
67.364 lb
Certifications
UL
Amperage Rating
200A
Material
Galvanized steel
Finish
ANSI 61 paint
Number of wires
3
Bypass
Lever
Feed type
Both
Mounting method
Side
Number of poles
1
Line lug size
3/8”-16 UNC stud
Load lug size
#6 AWG-350 KCMIL
Cover/door type
Ringless
Degree of protection
3
Feature → Business Impact → Application: The 200A amperage rating provides ample headroom for most commercial and light-industrial feeders, supporting scalable power distribution without frequent upgrades. This translates to lower unit costs per ampere and minimized future rewiring, ideal for retrofit projects in office buildings, data centers, and manufacturing lines. Feature → Business Impact → Application: Ringless, lever bypass allows quick service access and simplified maintenance, reducing downtime during metering changes and swapping. This is particularly valuable for facilities with strict uptime requirements, such as data hubs or process lines. Feature → Business Impact → Application: Side mounting and 3/8‑16 UNC line lugs paired with #6 AWG‑350 KCMIL load lugs streamline installation, enabling faster terminations and safer lug connections in crowded panel spaces. Feature → Business Impact → Application: Galvanized steel with ANSI 61 paint delivers corrosion resistance and long service life in exposed environments, reducing maintenance cycles and replacement costs for outdoor or semi‑indoor installations. Feature → Business Impact → Application: UL listing provides regulatory compliance and peace of mind for inspectors, while the B‑Line series integration ensures compatibility with existing Eaton infrastructure, supporting standardized procurement and simplified stocking. Feature → Business Impact → Application: 3 wires, 1 pole, and ringless enclosure balance compact footprint with reliable metering, enabling efficient panel design in commercial buildings, schools, and light industrial facilities.
Get a Quick Quote for a Eaton HEL20432CGR1N
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HEL20432CGR1N?
Enquire Now
FAQs
The HEL20432CGR1N is designed for side mounting, which simplifies installation in crowded panels and reduces terminal crowding. The ringless cover design provides easy access to lugs while maintaining a compact footprint.
It is rated for 200A with 3 wires and 1 pole. Line lug size is 3/8‑16 UNC, and load lug size accommodates #6 AWG to 350 KCMIL conductors, supporting flexible feeder configurations.
The unit uses galvanized steel with ANSI 61 paint and UL listing, offering robust corrosion resistance and safety compliance suitable for indoor or semi-exposed environments when installed within a proper enclosure.
The product is UL-listed, and the finish and construction (galvanized steel, ANSI 61 paint) support compliance with typical electrical safety standards in commercial and light-industrial applications.
Lever bypass and side-mount design reduce service time during metering changes, while durable galvanized steel and a UL listing lower long-term maintenance costs and inspection concerns, delivering faster installs and improved uptime.
