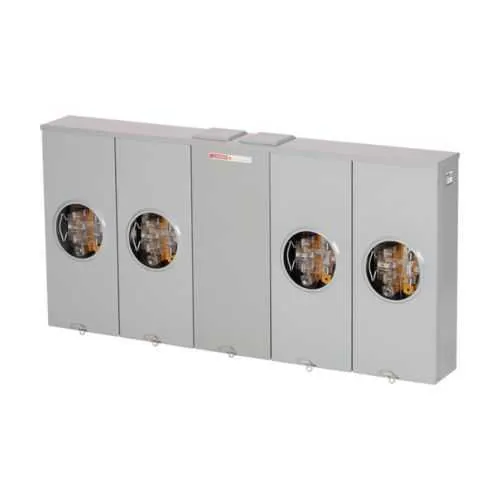

Eaton HEL20433CGR1N Meter Pack - UL Listed, 200A Ringless Aluminum
Part Number: HEL20433CGR1N
Quick Summary
The Eaton HEL20433CGR1N meter pack delivers compact, ringless meter mounting for commercial and industrial panels. In crowded enclosures, space constraints and wiring access can slow installation and increase risk. UL listed safety certification supports code compliance, while the ANSI 61 gray aluminum finish resists wear in demanding environments. With a 200A rating and versatile lug options, this unit scales from small service feeds to larger distribution needs, delivering reliable performance and lower total cost of ownership. As part of the B-Line series, it integrates smoothly with existing enclosures and mounting accessories, reducing engineering time and enabling faster panel upgrades. This combination of space efficiency and robust construction supports dependable meter protection in today’s power management environments.
Product Information
Extended Description
HEL20433CGR1N Eaton: Eaton B-Line series horizontal meter pack, Ringless, ANSI 61 gray paint, Aluminum, #6 AWG-350 KCMIL, 5, 3, 200A,Lever, 3,
Product Name
Eaton B-Line series horizontal meter pack
Catalog Number
HEL20433CGR1N
UPC
782051397741
Product Length/Depth
6.625 in
Product Height
25 in
Product Width
41 in
Product Weight
92.193 lb
Certifications
UL
Amperage Rating
200A
Material
Aluminum
Finish
ANSI 61 gray paint
Number of jaws
3
Number of wires
3
Bypass
Lever
Number of positions
5
Load lug size
#6 AWG-350 KCMIL
Cover/door type
Ringless
Ringless design and aluminum construction reduce enclosure depth and weight, easing field installation and retrofit projects. This combination lowers handling time, minimizes cabinet intrusion, and improves heat dissipation for longer service life. In compact control rooms and switchgear bays, it frees valuable space and simplifies conductor routing. Three jaws, three wires, and five positions provide flexible configuration and straightforward wiring. This enables quick sizing for different feeders and meter socket arrangements while preserving solid electrical integrity. In real-world installations, technicians appreciate predictable wiring paths and fast field setup, especially when upgrading aging meters or reconfiguring panels. Load lug size supports #6 AWG through 350 KCMIL conductors, enabling single-device service entry and large feeder connections without compromising terminations. This compatibility reduces the need for additional distribution hardware and simplifies procurement for industrial projects. Lever bypass provides a field-maintainable path for testing and maintenance without full disassembly. This reduces downtime during routine checks or when isolating sections for service work, which is especially valuable in manufacturing lines and critical infrastructure. ANSI 61 gray paint finish resists wear in harsh environments, while UL listing confirms compliance with electrical safety standards. Together, these features support safer operation, easier approval during audits, and smoother integration with existing Eaton B-Line components. This overall package supports durable, maintenance-friendly metering in today’s demanding facilities.
Get a Quick Quote for a Eaton HEL20433CGR1N
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HEL20433CGR1N?
Enquire Now
FAQs
The HEL20433CGR1N is designed for use in B-Line series horizontal meter mounting configurations and is compatible with indoor industrial panels requiring ringless metering. It accepts #6 AWG to 350 KCMIL conductors and supports three wires with three jaws. With five positions, technicians can adapt the lug arrangement for feeders, service entrances, or submetering applications.
Key electrical specs include a 200A amperage rating, three wires, three jaws, and a five-position arrangement. These specs simplify conductor termination and allow flexible feeder configurations. The unit uses aluminum construction and ANSI 61 gray finish, improving durability and ease of handling during installation while reducing weight and effort on site.
The ringless cover reduces enclosure intrusion and keeps front access clear for metering, while the lever bypass enables temporary isolation or testing without full disassembly. This design minimizes downtime, supports safe service work, and is particularly valuable on busy production lines or during planned maintenance windows.
This meter pack is UL listed, ensuring compliance with safety and electrical codes across installations. The UL listing, together with the ANSI 61 gray finish, assists with audit readiness and procurement accuracy, reducing risk during panel approvals and enabling smoother integration with other UL-listed Eaton B-Line components.
Investing in the HEL20433CGR1N yields measurable value through faster installations, lower labor costs, and reduced rework thanks to its flexible lug options and straightforward wiring. The durable aluminum body with corrosion-resistant finish minimizes maintenance needs, while UL compliance supports broader project acceptance and longer lifecycle in demanding industrial environments.
