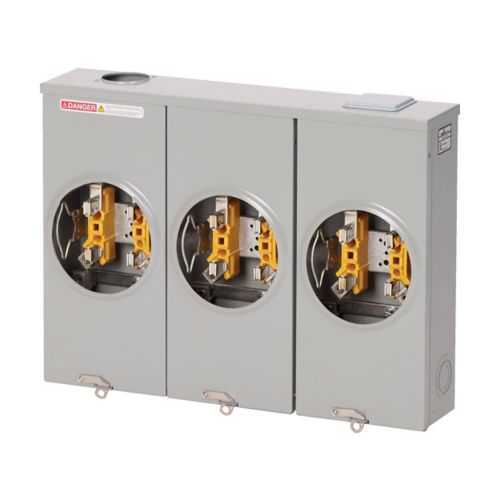

Eaton HEN10412LGRST Horizontal Meter Pack - UL
Part Number: HEN10412LGRST
Quick Summary
Eaton HEN10412LGRST Horizontal Meter Pack is a rugged, install-ready solution for feeder panels. Engineers rely on reliable meter mounting that fits tight spaces while simplifying wiring and maintenance. UL-listed safety certification ensures reliable performance, while the ANSI 61 gray finish and aluminum construction resist environmental wear in harsh service conditions. Built for quick installation and scale across 100 A systems, it integrates with B-Line series mounting accessories to streamline panel design and reduce field labor. Its two-position, ringless enclosure and 4-jaw design support common metering layouts in commercial and light-industrial applications, delivering long-term efficiency and cost savings. The design also facilitates safe, lockable access, reducing downtime during maintenance windows.
Product Information
Extended Description
HEN10412LGRST Eaton: Eaton B-Line series horizontal meter pack, Ringless, ANSI 61 gray paint, Aluminum, #6 AWG-350 KCMIL, #14 AWG-2/0 AWG, 2, 3, 100 A, None, 4
Product Name
Eaton B-Line series horizontal meter pack
Catalog Number
HEN10412LGRST
UPC
782051408768
Product Length/Depth
5.25 in
Product Height
18.125 in
Product Width
16.5 in
Product Weight
22.583 lb
Certifications
UL
Amperage Rating
100 A
Material
Aluminum
Finish
ANSI 61 gray paint
Number of jaws
4
Number of wires
3
Bypass
None
Number of positions
2
Line lug size
#6 AWG-350 KCMIL
Load lug size
#14 AWG-2/0 AWG
Cover/door type
Ringless
Feature 100 A amperage rating → Business Impact This rating supports common service feeder applications without oversized hardware, reducing part counts and inventory while ensuring reliable operation. Application Suitable for 100 A distribution panels in commercial or light-industrial environments, enabling compliant metering layouts. Feature Ringless cover → Business Impact Easier access for installation and maintenance reduces field labor and minimizes door-wrench wear, improving uptime. Application Suited to metering enclosures where quick cover removal is needed in tight switchgear spaces. Feature Line/load lug sizes (#6 AWG-350 KCMIL / #14 AWG-2/0 AWG) → Business Impact Flexible wiring options cut the need for adapters and simplify field terminations. Application Works with a broad range of meters and service conductors in both new builds and retrofits. Feature Aluminum material with ANSI 61 gray paint → Business Impact Durable, corrosion-resistant construction lowers maintenance costs and extends service life in demanding environments. Application Ideal for outdoor and indoor installations where exposure to moisture and pollutants is a concern. Feature 4 jaws, 2 positions, 5.25 in depth, 16.5 in width, 18.125 in height → Business Impact Compact yet scalable footprint supports diverse metering layouts without requiring enclosure redesign. Application Fits standard B-Line mounting geometry in commercial panels and small industrial cabinets. Feature UL certification → Business Impact Demonstrates compliance with essential safety standards, reducing risk and speeding procurement. Application Quick reference for regulatory audits and contractor qualifications with Eaton’s metering solutions.
Get a Quick Quote for a Eaton HEN10412LGRST
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HEN10412LGRST?
Enquire Now
FAQs
Yes. The HEN10412LGRST is designed as part of the B-Line series for meter mounting and aligns with standard B-Line mounting footprints. Its ringless cover, 4 jaws, and 2-position layout simplify integration with compatible meters and supports quick attachment to existing panels or new builds.
The pack is rated for 100 A with line lugs sized for #6 AWG-350 KCMIL and load lugs for #14 AWG-2/0. This combination supports typical service feeders while allowing flexible conductor selection. The 4-jaw arrangement enables secure, multi-wire terminations, contributing to reliable bus connections and reduced contact resistance.
The enclosure uses aluminum with an ANSI 61 gray finish, providing corrosion resistance suitable for many indoor and some outdoor environments. While it does not specify an IP rating, the finish and material choices are aligned with long-term durability in typical electrical rooms and protected outdoor zones.
The HEN10412LGRST is UL-listed, a widely recognized safety certification that supports compliance during procurement, installation, and audits. This certification helps ensure adherence to safety standards for meter mounting and service equipment within commercial and light-industrial installations.
Benefits include reduced installation time due to ringless access and 4-jaw design, fewer adapters thanks to flexible lug options, and compatibility with B-Line accessories that streamline panel layouts. This translates to lower field labor, fewer parts, and longer service intervals, delivering a favorable total cost of ownership over the equipment lifecycle.
