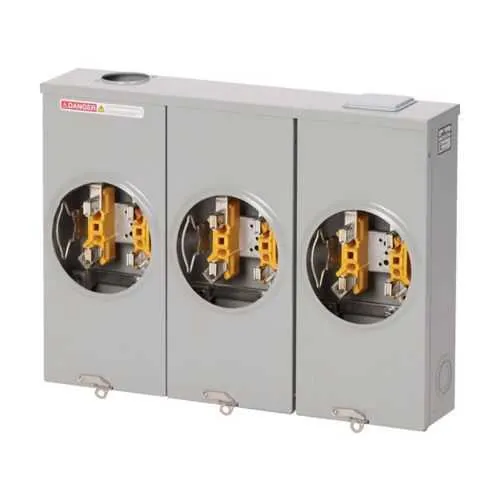

Eaton HEN10413LGRST Horizontal Meter Pack - UL Certified
Part Number: HEN10413LGRST
Quick Summary
Eaton HEN10413LGRST Horizontal Meter Pack is a compact, ringless metering solution for commercial and industrial service entrances. Installers often contend with cramped spaces, unwieldy wiring runs, and slow field assembly, which can delay projects and increase labor costs. The unit carries UL certification to help verify safety and code compliance in electrical distributions and enclosures. With a durable aluminum enclosure finished in ANSI 61 gray, this meter pack offers robust protection in demanding environments. Designed for B-Line series compatibility, it supports a wide wire range and straightforward installation, delivering measurable efficiency gains and reduced maintenance when deployed at scale in facilities.
Product Information
Extended Description
HEN10413LGRST Eaton: Eaton B-Line series horizontal meter pack, Ringless, ANSI 61 gray paint, Aluminum, #6 AWG-350 KCMIL, #14 AWG-2/0 AWG, 4, 2, 3, 100 A, None, 4
Product Name
Eaton B-Line series horizontal meter pack
Catalog Number
HEN10413LGRST
UPC
782051408775
Product Length/Depth
5.25 in
Product Height
18.125 in
Product Width
24.75 in
Product Weight
32.289 lb
Certifications
UL
Amperage Rating
100 A
Material
Aluminum
Finish
ANSI 61 gray paint
Number of jaws
4
Number of wires
3
Bypass
None
Number of positions
4
Number of poles
2
Line lug size
#6 AWG-350 KCMIL
Load lug size
#14 AWG-2/0 AWG
Cover/door type
Ringless
The ringless enclosure design reduces installation steps and improves wiring safety by avoiding the traditional meter socket ring, which can complicate early wiring and space planning. This shift translates to lower labor hours per meter pack installation and fewer field faults. The HEN10413LGRST is well suited to B-Line series metering deployments in crowded electrical rooms or outdoor-rated enclosures where space is at a premium and service reliability matters. With a 100 A amperage rating, the unit supports common service conductors used in commercial and light-industrial feeders without oversizing downstream gear. The robust 4-jaw, 2-pole, 4-position configuration provides reliable line and load terminations while maintaining a compact footprint. Installers appreciate compatibility with standard line lug sizes up to #6 AWG-350 KCMIL and load lug sizes up to #14 AWG-2/0 AWG, enabling flexible wiring schemes. Constructed from aluminum and finished in ANSI 61 gray paint, the meter pack delivers corrosion resistance and a lighter-weight alternative to steel enclosures. The durable finish stands up to harsh environments, reducing maintenance cycles and repainting costs. This combination supports longer service life while preserving a professional, code-compliant appearance across facilities. Line lug sizing supports large conductors up to #6 AWG-350 KCMIL, while load lug sizing accommodates smaller conductors from #14 AWG to 2/0 AWG. This broad range eliminates the need for multiple accessories and simplifies procurement for projects with mixed wiring. The result is faster assembly, fewer stocking headaches, and improved project scheduling. Overall dimensions of 5.25 in depth, 18.125 in height, and 24.75 in width, along with a weight of 32.289 lb, define a practical footprint for retrofit and new installs in standard electrical rooms. The ringless cover further accelerates access during maintenance and meter reconfigurations, reducing downtime and improving service continuity for critical facilities.
Get a Quick Quote for a Eaton HEN10413LGRST
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HEN10413LGRST?
Enquire Now
FAQs
The unit is designed for compatibility with Eaton's B-Line series and standard meter mounting footprints. Its 24.75 in width and 18.125 in height fit common enclosure bays, and the 5.25 in depth makes retrofit feasible in tight spaces. It supports ringless operation with 4 jaws and 2 poles, simplifying field wiring and maintenance.
It provides a 100 A amperage rating, 4 jaws, 2 poles, and 4 positions. Line lug size accommodates up to #6 AWG-350 KCMIL, while load lug size supports up to #14 AWG-2/0. The enclosure is aluminum with ANSI 61 gray paint and UL certified, ensuring safety and compliance for meter installations.
The ANSI 61 gray painted aluminum enclosure offers durability suitable for exposed environments when installed within appropriate exterior-rated enclosures. The ringless design simplifies access and wiring in constrained outdoor spaces. For extreme weather conditions, pair with suitable enclosure housings and follow best-practice installation guidelines to maximize longevity.
The HEN10413LGRST is UL-listed, providing recognized safety verification and compatibility with UL electrical standards for metering gear. This certification supports inspector acceptance and helps ensure compliance with electrical distribution code requirements across commercial and light-industrial facilities.
The ringless design and aluminum construction reduce installation time and maintenance complexity, while the ANSI 61 gray finish resists corrosion, extending service life. The combination minimizes replacement costs and downtime, enabling quicker meter reconfigurations and improved reliability for facilities with frequent metering changes or upgrades.
