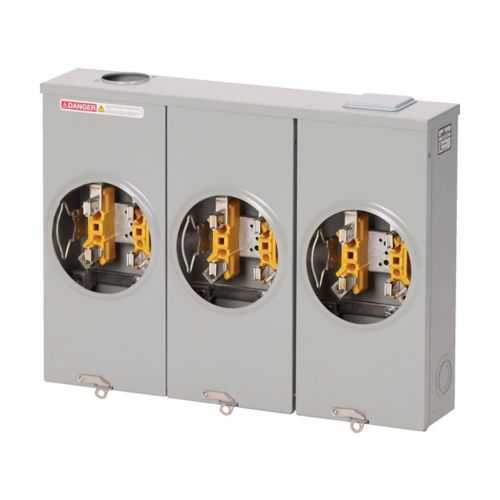

Eaton HEN10432LGRST Horizontal Meter Pack - UL
Part Number: HEN10432LGRST
Quick Summary
The Eaton HEN10432LGRST Horizontal Meter Pack is a compact, ringless mounting solution for meter sockets in commercial and industrial panels. It addresses common enclosure tightness, wiring complexity, and maintenance challenges by delivering a clean, accessible wiring path and a precise fit. UL-listed for safety, the unit uses ANSI 61 gray paint on durable aluminum, ensuring durability in harsh environments. With a 100 A amperage rating and ringless cover, it supports efficient meter mounting while reducing installation time and field adjustments. Designed for compatibility with Eaton B-Line series components, it delivers reliable performance and a scalable path for growing electrical infrastructure.
Product Information
Extended Description
HEN10432LGRST Eaton: Eaton B-Line series horizontal meter pack, Ringless, ANSI 61 gray paint, Aluminum, #6 AWG-350 KCMIL, #14 AWG-2/0 AWG, 4, 2, 3, 100 A, None, 2
Product Name
Eaton B-Line series horizontal meter pack
Catalog Number
HEN10432LGRST
UPC
782051408782
Product Length/Depth
5.25 in
Product Height
18.125 in
Product Width
20.5 in
Product Weight
23.985 lb
Certifications
UL
Amperage Rating
100 A
Material
Aluminum
Finish
ANSI 61 gray paint
Number of jaws
2
Number of wires
3
Bypass
None
Number of positions
4
Number of poles
2
Line lug size
#6 AWG-350 KCMIL
Load lug size
#14 AWG-2/0 AWG
Cover/door type
Ringless
Feature → Business Impact → Application: The horizontal meter pack uses a ringless cover to simplify installation, reducing time spent on cover removal and reassembly in retrofit projects, which translates to lower labor costs and faster job completion on site. This design improves wiring organization and reduces the risk of contact with live components, enhancing safety during maintenance and upgrades in industrial facilities; implementation is straightforward in retrofit or new-build panels seeking clean aesthetics and code-compliant enclosures. Feature → Business Impact → Application: Aluminum construction with ANSI 61 gray paint delivers durable corrosion resistance in harsh environments, extending service life in outdoor or damp installations while maintaining a professional, field-ready appearance. This supports long-term reliability for critical power distribution applications such as data centers, manufacturing lines, and utility service entrances. Feature → Business Impact → Application: The unit supports up to 100 A service with load lug sizes of #14 AWG-2/0 AWG and line lug sizes of #6 AWG-350 KCMIL, enabling flexible wire management for both feeder and device connections, reducing inventory complexity while accelerating commissioning in mixed-use electrical rooms. Feature → Business Impact → Application: Four-position, two-pole configuration with two jaws accommodates multiple circuits without overcrowding, enabling modular expansion in evolving power distribution schemes for commercial buildings and process plants. Feature → Business Impact → Application: UL safety certification and compatibility with the Eaton B-Line series streamline procurement and interoperability, helping procurement teams meet standards without redesigning enclosures, while installers benefit from proven mounting footprints and fewer field modifications. Feature → Business Impact → Application: The horizontal meter pack is designed for field metering and main distribution applications, delivering measurable efficiency gains through standardized mounting, reduced mis-wiring risk, and faster compliance checks during inspections in industrial facilities.
Get a Quick Quote for a Eaton HEN10432LGRST
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HEN10432LGRST?
Enquire Now
FAQs
The HEN10432LGRST supports a ringless cover configuration with a four-position, two-pole layout and two jaws. It accommodates line lugs sized #6 AWG-350 KCMIL and load lugs sized #14 AWG-2/0 AWG, enabling efficient wiring and compact installation in standard Eaton B-Line series enclosures.
Yes. The meter pack is UL-listed for safety and carries an amperage rating of 100 A, making it appropriate for services up to 100 A in commercial and industrial panel applications while maintaining adherence to recognized safety standards.
Line lugs accept #6 AWG-350 KCMIL conductors, while load lugs accommodate #14 AWG-2/0 AWG conductors. This range supports both primary feeder connections and smaller branch circuits within a single meter socket assembly.
The ringless cover simplifies field installation by reducing hardware requirements and clearance constraints. It also streamlines maintenance and inspections, lowers labor time, and minimizes the risk of damaging the meter socket during servicing, which is particularly advantageous in retrofit projects and tight electrical rooms.
This meter pack is ideal for commercial and industrial panel metering applications, data centers, manufacturing facilities, and other environments requiring robust, space-efficient meter mounting. Its aluminum construction with ANSI 61 gray finish withstands demanding conditions while delivering a reliable, scalable solution for growing electrical infrastructure.
