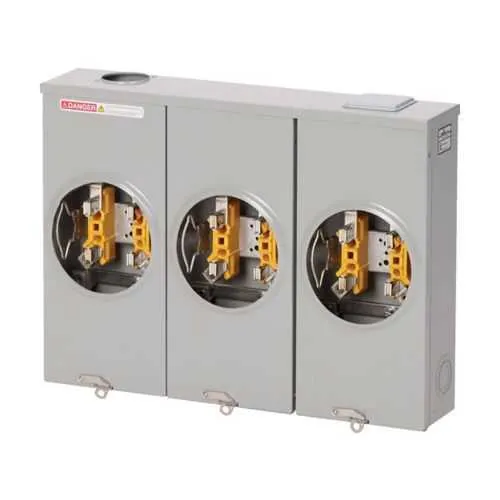

Eaton HEN10434LGRST Meter Pack - Ringless, 100 A, ANSI-61 UL Listed
Part Number: HEN10434LGRST
Quick Summary
Eaton HEN10434LGRST Meter Pack is a ringless meter mounting solution for 100 A service in commercial and light industrial panels. Engineers often struggle with limited space and wiring complexity during metering installs, which can extend project timelines and raise error risk. UL-listed protection, ANSI-61 paint finish, and galvanized steel construction support durable, code-compliant performance in challenging environments. Designed for compatibility with Eaton B-Line systems, it streamlines procurement and installation while driving consistency, safety, and long-term maintenance efficiency for power distribution applications.
Product Information
Extended Description
HEN10434LGRST Eaton: Eaton B-Line series horizontal meter pack, Ringless, 3, ANSI 61 paint, Galvanized steel, Both, #6 AWG-350 KCMIL, #14 AWG-2/0 AWG, Side, 1, 3, 100 A, None,
Product Name
Eaton B-Line series horizontal meter pack
Catalog Number
HEN10434LGRST
UPC
782051408812
Product Length/Depth
5.25 in
Product Height
18.125 in
Product Width
37 in
Product Weight
42.059 lb
Certifications
UL
Amperage Rating
100 A
Material
Galvanized steel
Finish
ANSI 61 paint
Number of wires
3
Bypass
None
Feed type
Both
Mounting method
Side
Number of poles
1
Line lug size
#6 AWG-350 KCMIL
Load lug size
#14 AWG-2/0 AWG
Cover/door type
Ringless
Degree of protection
3
Feature Ringless cover design reduces physical clearance and eliminates ring-through installation steps. Business Impact Faster, neater meter mounting with fewer field adjustments translates to shorter project schedules and lower labor cost. Application Metering in compact panels and retrofit installations across industrial facilities. Feature Side mounting enables flexible orientation and easier wiring access. Business Impact Improved setup speed and simplified cable management, reducing risk of wiring errors. Application Suitable for both new builds and upgrades in commercial and light industrial spaces. Feature 3-wire, 1-pole configuration supports straightforward feeder connections. Business Impact Clearer fault isolation and easier maintenance, improving uptime and serviceability. Application Ideal for B-Line series metering deployments and other power distribution assemblies. Feature Line lug range #6 AWG-350 KCMIL and load lug range #14 AWG-2/0 AWG provide wide conductor compatibility. Business Impact Supports diverse utility and equipment wiring practices, reducing inventory needs. Application Flexible field wiring for varied service entrances and panel designs. Feature Galvanized steel with ANSI 61 paint delivers corrosion resistance in harsh environments. Business Impact Extends service life and lowers replacement frequency in outdoor or damp locations. Application Durable enclosures for meter sockets in outdoor or semi-enclosed installations. Feature UL-listed certification reinforces compliance with safety standards. Business Impact Eases regulatory approvals and facility audits, streamlining procurement and commissioning. Application Suitable for regulated environments and multi-site deployments.
Get a Quick Quote for a Eaton HEN10434LGRST
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HEN10434LGRST?
Enquire Now
FAQs
Yes. The HEN10434LGRST is designed to integrate with Eaton B-Line series metering solutions and compatible meter mounting setups. Its side-mount configuration and 3-wire design accommodate common distribution panels, enabling straightforward retrofits and consistent mounting practices across multiple enclosures while maintaining proper clearance and alignment for lugs.
Key specs include a 100 A amperage rating, 3 wires, 1 pole, and feed-type listed as Both. Line lug sizes range from #6 AWG to 350 KCMIL, while load lugs accommodate #14 AWG to 2/0 AWG. The unit uses galvanised steel with ANSI 61 paint and is UL-listed, ensuring reliable performance within standard electrical distribution schemes.
Yes, the combination of galvanized steel construction and ANSI 61 paint finish provides corrosion resistance suitable for outdoor or damp environments. The UL listing further supports safe operation under typical site conditions, while the ringless cover helps protect exposed components from incidental contact, supporting safer outdoor installations.
The ringless cover design minimizes assembly steps, while side mounting offers easier access for wiring and maintenance. The wide line/load lug compatibility reduces the need for multiple spare parts, and the 100 A rating covers common service scenarios, enabling faster commissioning and lower total installed cost across new builds and retrofits.
The HEN10434LGRST carries UL-listed certification, reinforcing safety and regulatory compliance. While Eaton provides standard documentation such as catalogs and specification sheets, ongoing maintenance considerations include verifying lug torque, inspecting coating integrity on ANSI-61 painted galvanized steel, and following Eaton’s installation guidelines for long-term reliability.
