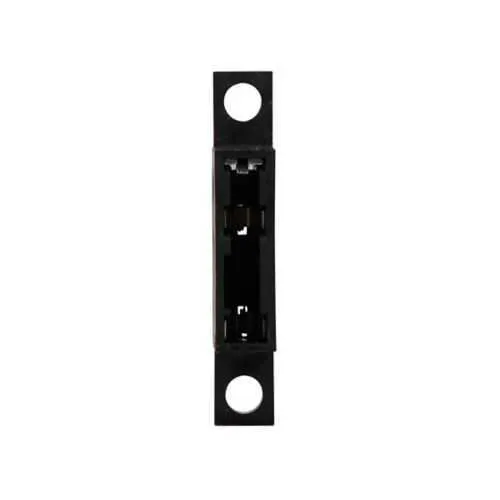

Eaton HLS Fuse Holder - CE Marked RoHS Compliant
Part Number: HLS
Quick Summary
Eaton HLS fuse holder is a compact protection device designed to safeguard control panels and industrial equipment. Its flange-free design minimizes panel intrusion and simplifies installation, helping reduce field labor costs and the risk of misalignment. The product is CE marked and RoHS compliant, supporting European regulatory compliance and safer material usage. In addition to regulatory alignment, the HLS integrates smoothly with GMT Type Indicating Series for straightforward status visibility, delivering reliable protection while enabling streamlined maintenance and serviceability. This combination of compliance, compact form, and compatibility translates to lower total cost of ownership and faster, safer panel upgrades.
Product Information
Extended Description
HLS Eaton: Eaton Bussmann series HLS fuse holder, No flanges, 125 Vac, 60 Vdc, 15 A, Tin-plated bifrucated copper terminal
Product Name
Eaton Bussmann series HLS fuse holder
Catalog Number
HLS
UPC
051712741057
EAN
5027590171892
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.8 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
15 A
Voltage rating
125 Vac, 60 Vdc
Material
Tin-plated bifurcated copper terminal
Special features
No flanges
Used with
Used with GMT Type Indicating Series
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - HLS
HLS~FUSEHOLDER
HLS~FUSEHOLDER
Datasheet - FNQ-30
Feature → Business Impact → Application: The HLS fuse holder carries a 15 A rating at 125 Vac and 60 Vdc, enabling dependable protection for common control circuits in industrial equipment; the result is improved circuit safety and reduced nuisance trips in automated lines. Application: Ideal for control panels and machine protection in manufacturing lines where reliable fuse protection is critical. Feature → Business Impact → Application: No flanges design simplifies installation in tight panel spaces, reducing assembly time and potential mounting misalignment; installation is faster and more robust in compact enclosures. Application: Suitable for retrofit projects and new builds in compact electrical cabinets. Feature → Business Impact → Application: Tin-plated bifurcated copper terminals provide durable, low-resistance connections with corrosion resistance, improving long-term reliability and reducing maintenance outages. Application: Best for environments with exposure to humidity and debris where secure terminations are essential. Feature → Business Impact → Application: CE Marking and RoHS compliance ensure regulatory clearance and safer material composition, lowering compliance risk and streamlining European subsystem approvals. Application: Required for European installations and regulated markets. Feature → Business Impact → Application: Compatibility with GMT Type Indicating Series enables integrated status indication without extra wiring, improving diagnostic speed and reducing wiring complexity. Application: Control panels requiring quick fault identification and streamline maintenance workflows.
Get a Quick Quote for a Eaton HLS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HLS?
Enquire Now
FAQs
The HLS is a no-flanges fuse holder designed for compact panel installations. It uses tin-plated bifurcated copper terminals for robust, corrosion-resistant terminations, simplifying wiring and reducing mounting depth requirements. When planning installation, verify panel clearance and ensure the GMT Type Indicating Series connection aligns with your status indication strategy for optimal diagnostics.
The HLS is rated for 15 A with a voltage rating of 125 Vac and 60 Vdc, suitable for common control circuits and protection schemes in industrial equipment. It supports standard fuse types used in low-voltage protection, delivering reliable interruption performance while maintaining safe operating margins in mixed AC/DC environments.
Yes. The HLS is CE Marked and RoHS compliant, ensuring European regulatory adherence and reduced hazardous material exposure. This makes it a suitable choice for European installations and industries prioritizing compliant electrical protection components within shielded control panels.
The HLS is designed to be used with the GMT Type Indicating Series, enabling straightforward integration of status indication. This compatibility simplifies wiring, improves fault-tracing efficiency, and supports quicker maintenance cycles in automation and process control applications.
The HLS offers compact form factor, no-flange mounting, and robust terminations, reducing panel space needs and installation time. Combined with CE RoHS compliance and GMT compatibility, it lowers compliance risk and maintenance downtime while delivering reliable fuse protection for expanding or upgrading control panels in manufacturing and processing environments.
