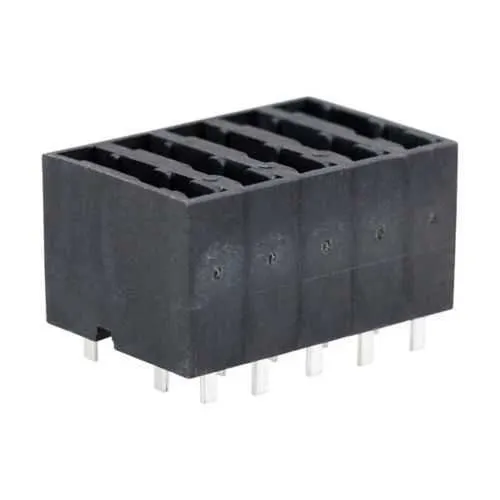

Eaton HLS-05-SL Fuse Holder - 5-Pole, CE RoHS
Part Number: HLS-05-SL
Quick Summary
Eaton HLS-05-SL fuse holder provides reliable protection for panel-mounted control circuits. Engineers often struggle with tight panel spaces, short leads, and consistent termination in fuse assemblies. This design is CE Marked and RoHS Compliant, ensuring regulatory compliance and safer materials for your operation. It also supports GMT Type Indicating Series for straightforward status monitoring, delivering a compact, reliable protection solution that helps reduce downtime and simplify panel wiring for industrial automation projects.
Product Information
Extended Description
HLS-05-SL Eaton: Eaton Bussmann series HLS fuse holder, 0.135 inches short leads, No flanges, 125 Vac, 60 Vdc, 15 A, Five-pole, Tin-plated bifrucated copper terminal
Product Name
Eaton Bussmann series HLS fuse holder
Catalog Number
HLS-05-SL
UPC
051712555210
EAN
5027590115254
Product Length/Depth
1.25 in
Product Height
0.875 in
Product Width
0.875 in
Product Weight
0.03 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
15 A
Voltage rating
125 Vac, 60 Vdc
Material
Tin-plated bifurcated copper terminal
Number of Poles
Five-pole
Special features
0.135 in short leads, No flanges
Used with
Used with GMT Type Indicating Series
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - HLS-05-SL
Five-pole design supports multi-fuse protection in a single compact unit, delivering a clear path to consolidated protection in control panels and reducing wiring complexity. Business impact: improved wiring density and faster panel assembly, lowering labor costs while maintaining safe, compliant protection for 15 A circuits at 125 Vac or 60 Vdc. Application: ideal for industrial automation panels requiring robust multi-fuse protection in GMT Type Indicating Series environments. The 0.135 in short leads and no flanges enable tighter installations and simpler mounting, translating into space savings and easier retrofits in constrained enclosures. In addition, tin-plated bifurcated copper terminals offer corrosion resistance and durable termination, minimizing maintenance and replacement costs in harsh factory settings. This fuse holder is RoHS and CE marked, supporting regulatory compliance and safer materials for high-volume production. Compatibility with GMT Series indicators ensures quick fuse status visibility, reducing maintenance cycles and accelerating diagnostic workflows.
Get a Quick Quote for a Eaton HLS-05-SL
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HLS-05-SL?
Enquire Now
FAQs
The HLS-05-SL is designed for use with the GMT Type Indicating Series, enabling clear fuse status indication within panel installations. This compatibility streamlines diagnostics, reduces downtime, and improves maintenance planning in industrial control environments.
HLS-05-SL provides a 15 A amperage rating with a voltage range of 125 Vac and 60 Vdc. The five-pole configuration supports multiple fuses, delivering reliable protection for critical control circuits in automation panels.
Yes. The fuse holder features 0.135 in short leads and no flanges, enabling tighter installations and easier integration into compact enclosures while maintaining robust electrical connections.
The HLS-05-SL is CE Marked and RoHS compliant, meeting core safety and environmental requirements for modern electrical equipment used in industrial settings.
By reducing wiring complexity, enabling denser panel layouts, and lowering maintenance costs through durable tin-plated copper terminations, the HLS-05-SL contributes to faster assembly, fewer field faults, and improved long-term reliability in control systems.
