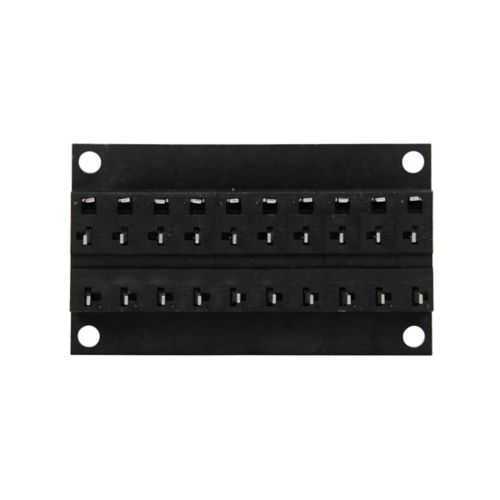

Eaton HLT-10 Fuse Holder - RoHS Compliant CE Marked
Part Number: HLT-10
Quick Summary
Eaton HLT-10 fuse holder enables reliable multi-pole protection in industrial control panels. This design addresses the common challenge of compact, dependable fuse mounting in tight enclosures, where space constraints and maintenance downtime can threaten uptime. RoHS compliant and CE marked ensure global regulatory readiness for international deployments, while meeting modern environmental and safety standards. The ten-pole configuration, tin-plated bifurcated copper terminals, and compatibility with GMT Type Indicating Series deliver scalable protection for complex motor, power distribution, and control circuits. By standardizing on the HLT-10, you can reduce wiring complexity, improve fault isolation, and speed service in both new installations and retrofits, driving overall equipment efficiency.
Product Information
Extended Description
HLT-10 Eaton: Eaton Bussmann series HLT fuse holder, 125 Vac, 60 Vdc, 15 A, Ten-pole, Tin-plated bifrucated copper terminal
Product Name
Eaton Bussmann series HLT fuse holder
Catalog Number
HLT-10
UPC
051712170192
Product Length/Depth
2.5 in
Product Height
1 in
Product Width
1.5 in
Product Weight
0.7 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Amperage Rating
15 A
Voltage rating
125 Vac, 60 Vdc
Material
Tin-plated bifurcated copper terminal
Number of Poles
Ten-pole
Used with
Used with GMT Type Indicating Series
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - HLT-10
HLT-10~BUSS MULTIPOLE FUSEHLDR
HLT-10~BUSS MULTIPOLE FUSEHLDR
Datasheet - FNQ-30
Feature: Ten-pole design distributes protection across multiple circuits, enabling higher protection density without increasing panel footprint. Business impact: reduces the number of separate fuse holders and simplifies wiring diagrams, cutting assembly time and maintenance costs. Application: ideal for GMT Type Indicating Series installations where space is at a premium and reliability is critical. Feature: 125 Vac, 60 Vdc, 15 A rating supports diverse control and power circuits with a single housing. Business impact: enables standardization across AC and DC portions of a control system, lowering parts variety and inventory costs. Application: suitable for manufacturing lines, packaging equipment, and process controls needing swift fault isolation. Feature: Tin-plated bifurcated copper terminals provide corrosion-resistant, high-integrity connections. Business impact: reduces contact resistance and thermal stress, extending service life and reducing reboot times after maintenance. Application: ideal for harsh industrial environments where vibration and exposure threaten connections. Feature: Compact dimensions (2.5 in L × 1 in H × 1.5 in W) save panel space and simplify retrofits. Business impact: enables denser panel layouts and faster field upgrades without chassis redesign. Application: retrofit projects and new builds in space-constrained electrical cabinets. Feature: RoHS compliance and CE marking address global regulatory requirements. Business impact: minimizes compliance risk while accelerating international deployment. Application: worldwide installations across manufacturing, energy, and infrastructure sectors.
Get a Quick Quote for a Eaton HLT-10
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HLT-10?
Enquire Now
FAQs
Yes. The HLT-10 is designed for use with the GMT Type Indicating Series and mounts in standard control panels. It utilizes tin-plated bifurcated copper terminals for reliable connections, with a compact 2.5 in length and a ten-pole footprint that simplifies wiring harness layouts. Follow Eaton’s datasheet guidance for edge-clip style mounting and terminal torque specs to ensure proper fault isolation.
The HLT-10 is rated for 15 A, with voltage ratings of 125 Vac and 60 Vdc. This makes it suitable for mixed AC/DC control circuits in industrial environments. Its ten-pole design supports distributing protection across multiple circuits, aiding in coordinated protection strategies and streamlined panel wiring.
The HLT-10 is intended for panel-mounted fuse protection in industrial control cabinets and similar enclosures. Its compact dimensions (2.5 in L, 1 in H, 1.5 in W) enable installation in space-constrained panels or retrofit projects. Always verify enclosure clearance and compatibility with GMT Type Indicating Series assemblies before mounting.
HLT-10 carries RoHS compliance and CE marking, indicating adherence to European environmental and safety requirements and global regulatory readiness. These certifications help ensure regulatory acceptance across multiple regions, reduce compliance-related project risks, and support faster approval during global deployments.
The HLT-10’s robust tin-plated terminals and standardized Bussmann series design reduce wiring faults and contact resistance, lowering maintenance downtime. Its compatibility with GMT Type Indicating Series simplifies part stocking and spares management, delivering faster replacements, improved uptime, and a lower total cost of ownership for mission-critical protection networks.
