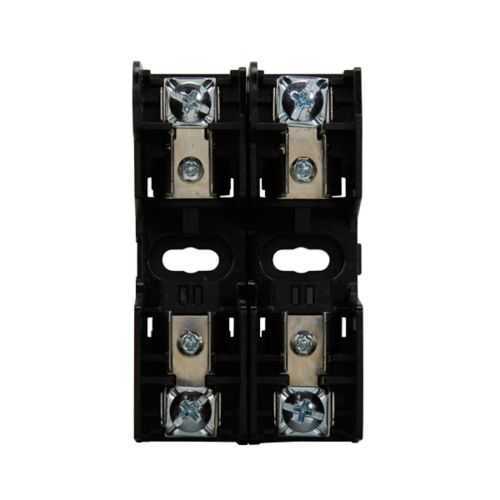

Eaton HM25030-2PR Modular Fuse Block - UL Listed
Part Number: HM25030-2PR
Quick Summary
Eaton HM25030-2PR modular fuse block provides compact overcurrent protection for electrical panels and machine builds. Engineers often face space constraints and wiring complexity when adding protection blocks, which drives up installation time and costs. This device carries RoHS compliance, UL Listed, and CSA Certified, with a 10 kAIC short-circuit rating and a 250 V rating for robust industrial use. The two-pole PR design and HM Bussmann series compatibility deliver a practical, scalable solution for panel builders and integrators, enabling faster sourcing of spare parts and streamlined maintenance. Benefit from a footprint of just 3.17 in by 1.97 in by 1.98 in and straightforward field replacement.
Product Information
Extended Description
HM25030-2PR Eaton: Eaton Bussmann series HM modular fuse block, PR, 0-30 A, Two-pole, Class H, Class K, 10 kAIC, 250 V
Product Name
Eaton Bussmann series HM modular fuse block
Catalog Number
HM25030-2PR
UPC
051712512756
Product Length/Depth
3.17 in
Product Height
1.98 in
Product Width
1.97 in
Product Weight
0.17 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
0-30A
Short-circuit rating
10 kA
Voltage rating
250 V
Number of Poles
Two-pole
Class
Class K Class H
Special features
PR
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Bussmann series Fuseology
Eaton Specification Sheet - HM25030-2PR
Feature → Business Impact → Application: The 0-30 A amperage rating provides scalable protection for a wide range of loads, reducing nuisance trips and enabling standardization across panels; this translates to lower spare parts inventory and predictable performance. Application: electrical control panels and machine enclosures where uniform protection reduces engineering time. Feature → Two-pole design enables space-efficient protection in tight panels; impact → reduces panel depth and wiring complexity, easing installation. Application → compact controls and motor starters in machine builds. Feature → 10 kAIC short-circuit rating enhances fault tolerance in higher-energy installations; application → drives and power distribution blocks in manufacturing lines. Feature → RoHS compliant, UL Listed, and CSA Certified; impact → regulatory compliance and safer supply chains. Application → compliant control panels and systems requiring standard approvals. Feature → Compact footprint (3.17 in x 1.97 in x 1.98 in) with weight 0.17 lb; impact → easier handling and panel layout. Application → retrofit projects and space-constrained cabinets. Feature → Class H and Class K compatibility in a PR format; impact → flexible fuse-type pairing and procurement; Application → diverse protection schemes in industrial racks.
Get a Quick Quote for a Eaton HM25030-2PR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HM25030-2PR?
Enquire Now
FAQs
HM25030-2PR is designed for use within the Eaton Bussmann HM modular fuse block family and is compatible with standard HM style housings and mounting hardware. Its two-pole PR configuration simplifies wiring, and its dimensions align with common HM module footprints for easy panel integration.
The fuse block supports 0-30 A, 250 V operation with a 10 kAIC short-circuit rating. It carries RoHS compliance and is UL Listed plus CSA Certified, ensuring regulatory adherence and safety for industrial control environments.
Ideal for compact control panels, machine enclosures and motor control centers where space is limited. The two-pole design and 0-30 A range support centralized protection of multiple circuits while preserving panel real estate.
The HM25030-2PR measures 3.17 in in length, 1.97 in in width, and 1.98 in in height, with an approximate weight of 0.17 lb. These compact dimensions help streamline panel layouts and reduce enclosure depth.
Warranty is listed as Not Applicable by the manufacturer. For technical support, access Eaton’s specification sheets and product resources, including UL/CSA certification details and the Bussmann catalog references.
