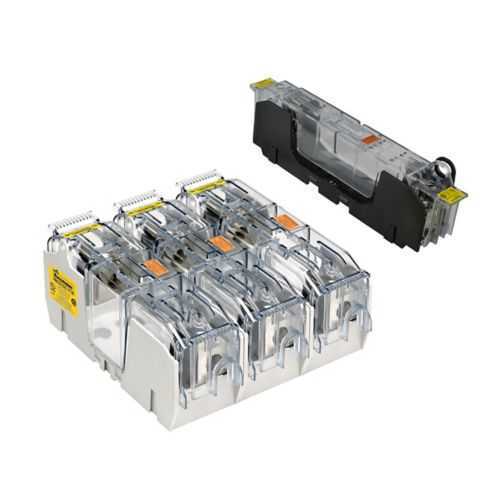

Eaton HM25030-3CHR HM modular fuse block - 10 kA
Part Number: HM25030-3CHR
Quick Summary
The Eaton HM modular fuse block provides reliable circuit protection for control panels and industrial equipment. The challenge is selecting a unit that fits DIN rail or panel mounting, accepts #2-14 AWG wire, and delivers 60 A without complex wiring. The device carries RoHS compliance and PED 97/23 EC regulatory support, helping meet global standards. For procurement and maintenance teams, this HM block enables quick installation, robust protection, and compatibility with CVR(I)-RH-25030 accessories, reducing downtime and lifecycle costs.
Product Information
Extended Description
HM25030-3CHR Eaton: Eaton Bussmann series HM modular fuse block, Box lugs with hex screws, 60 A, 3P, 120°C, Class H, Class K, CVR(I)-RH-25030, Black, 10 kA, 75 °C, Stranded, DIN rail, Panel, 250 V, #2-14 AWG
Product Name
Eaton Bussmann series HM modular fuse block
Catalog Number
HM25030-3CHR
UPC
051712682886
Product Length/Depth
3.2 in
Product Height
2 in
Product Width
2.9 in
Product Weight
0.3384375 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
ARO European Pressure Equipment Directive (PED) 97 /23 EC
Amperage Rating
60 A
Impulse withstand voltage
10 kA RMS symmetrical
Interrupt rating
10 kAIC
Short-circuit rating
10 kA RMS symmetrical
Torque rating
50 lb-in maximum
Voltage rating
250 V
Color
Black
Conductor material rated for
Both
Conductor type
Stranded
Fuse type
Class K Class H
Number of Poles
Three-pole
Operating temperature - max
120 °C
Operating temperature - min
120 °C
Wire size
#2-14 AWG
Accessories
CVR(I)-RH-25030
Connection
Box lug
Mounting method
DIN rail Panel
Special features
Box Lugs with Hex Screws
HM25030-3CHR~FUSE BLK H250V 30A 3P HX
HM25030-3CHR~FUSE BLK H250V 30A 3P HX
Class H(K), J and R Power distribution fuse block overview
Class H(K), J and R Power distribution fuse block overview
Eaton Specification Sheet - HM25030-3CHR
Feature: Modular three-pole design with box lugs and hex screws. Business impact: Delivers secure, vibration-resistant connections that stay tight in harsh environments, decreasing rework. Application: Ideal for control panels and industrial equipment in both DIN rail and panel installations. Feature: High current and voltage ratings with 10 kA interrupt capability. Business impact: Protects downstream wiring and components, minimizes nuisance trips, and reduces downtime in demanding machinery. Application: Power distribution in industrial automation and packaging lines. Feature: RoHS compliance and PED 97/23 EC certification. Business impact: Supports regulatory approval and environmental safety programs, simplifying procurement audits. Application: Global manufacturing environments requiring traceable compliance. Feature: Wire compatibility and mounting versatility. Business impact: Accepts #2-14 AWG conductors and supports DIN rail or panel mounting for flexible installations and faster deployment. Application: Control panels and machine assemblies with compact footprints. Feature: Mechanical robustness and diagnostics readiness. Business impact: 50 lb-in torque rating and CVR(I)-RH-25030 accessory compatibility improve reliability and serviceability in fielded systems. Application: Harsh industrial environments with vibration and periodic maintenance needs.
