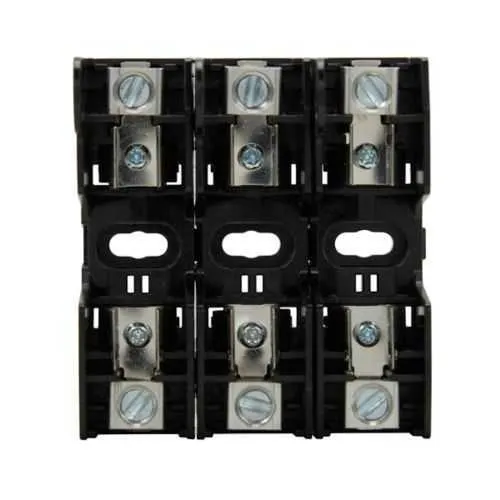

Eaton HM25030-3CR Modular Fuse Block - 10 kAIC
Part Number: HM25030-3CR
Quick Summary
The Eaton HM25030-3CR modular fuse block provides reliable overcurrent protection for three-pole control panels and machinery. Engineers often struggle to find compact, code-compliant solutions that fit tight spaces and simplify maintenance. This unit carries UL Listed and CSA Certified listings, and is RoHS compliant, with a short-circuit rating up to 10 kA and a 250 V rating. Designed for industrial power distribution and motor control applications, it supports standard Bussmann HM components and offers easy field replacement and standardized procurement within the HM family.
Product Information
Extended Description
HM25030-3CR Eaton: Eaton Bussmann series HM modular fuse block, CR, 0-30 A, Three-pole, Class K, Class H, 10 kAIC, 250 V
Product Name
Eaton Bussmann series HM modular fuse block
Catalog Number
HM25030-3CR
UPC
051712511179
Product Length/Depth
3.16 in
Product Height
1.3 in
Product Width
2.88 in
Product Weight
0.27 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
0-30A
Short-circuit rating
10 kA
Voltage rating
250 V
Number of Poles
Three-pole
Class
Class H Class K
Special features
CR
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Class H(K), J and R Power distribution fuse block overview
Class H(K), J and R Power distribution fuse block overview
Eaton Specification Sheet - HM25030-3CR
Feature: Three-pole modular fuse block rated 0-30 A at 250 V. Business Impact: Enables dense, standardized protection in compact panels, reducing enclosure footprint and wiring complexity. Application: Ideal for control cabinets and machine bays where space is at a premium. Feature: Short-circuit rating of 10 kAIC. Business Impact: Improves fault tolerance and upstream protection coordination, lowering the risk of cascading failures. Application: Critical for power distribution blocks in automated lines and motor control centers. Feature: Class H and Class K compatibility. Business Impact: Provides selective protection options and fast fault clearing with compatible fuse types, reducing nuisance tripping. Application: Suitable for servo drives and variable frequency drives in industrial equipment. Feature: UL Listed, CSA Certified, and RoHS Compliant. Business Impact: Ensures regulatory compliance and easier supplier qualification, streamlining procurement. Application: Fits global manufacturing standards and simplifies import/export for panel assemblies. Feature: 3.16 in depth, 1.3 in height, 2.88 in width with a 0.27 lb weight. Business Impact: Lightweight, easy to install and relocate during panel upgrades, accelerating commissioning. Application: Useful for retrofit projects and new builds requiring a compact, compatible HM fuse block.
Get a Quick Quote for a Eaton HM25030-3CR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HM25030-3CR?
Enquire Now
FAQs
Install the HM25030-3CR by aligning it with the three-pole protection region in your control panel, secure mounting to the chassis, and connect conductors to the HM series fuse block terminals. Verify 250 V rating and ensure compatible Bussmann HM fuses are used. Confirm UL Listed and CSA Certified components are in place for regulatory compliance.
The unit is rated 0-30 A, 250 V with a 10 kA short-circuit rating (10 kAIC). This means it can safely interrupt fault currents up to 10,000 amps in a 250 V system, helping to protect downstream equipment and improve system reliability in industrial environments.
Best suited for industrial control panels, motor protection, servo drives, and power distribution blocks in automated lines. Its three-pole design and 0-30 A range support compact protection schemes in machine cabinets, drive interfaces, and cabinet power rails, enabling standardized protection across similar equipment.
The HM25030-3CR carries UL Listed and CSA Certified listings and RoHS compliance, ensuring regulatory alignment for many markets. These certifications support safe integration in commercial and industrial installations and help streamline supplier qualification and audits.
Because the fuse block is part of a modular HM family, you can standardize spares and simplify replacement during maintenance. Its compact footprint reduces panel space, while the 0-30 A rating and 10 kAIC protection minimize downtime and facilitate quicker commissioning, contributing to lower total cost of ownership over the system’s lifecycle.
