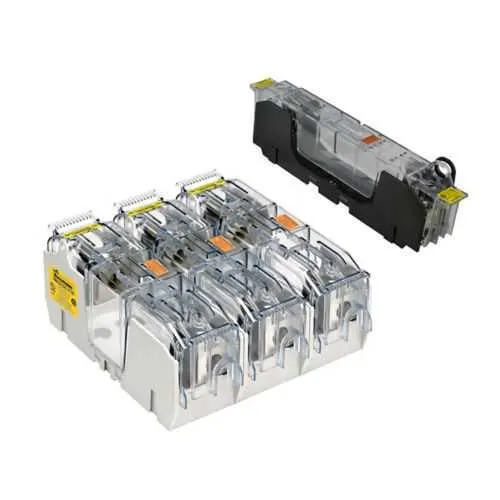

Eaton HM25060-1CHR HM modular fuse block - 10 kA RMS
Part Number: HM25060-1CHR
Quick Summary
Eaton Bussmann HM modular fuse block is a compact protection device designed for 60 A, 250 V control panels and DIN rail installations. This solution addresses design delays and wiring confusion by combining box lugs with hex screws for a secure, fast install. It carries RoHS compliance and PED certification, ensuring regulatory alignment for European equipment and global deployments. Ideal for automation cabinets and safety-critical panels, it supports reliable panel protection with DIN rail and panel mounting, while delivering ease of maintenance and scalable protection for growing systems.
Product Information
Extended Description
HM25060-1CHR Eaton: Eaton Bussmann series HM modular fuse block, Box Lugs with Hex Screws, 60 A, 1P, 120°C, Class K, Class H, CVR(I)-RH-25060, Black, 10 kA, 75 °C, Stranded, DIN rail, Panel, 250 V, #2-14 AWG
Product Name
Eaton Bussmann series HM modular fuse block
Catalog Number
HM25060-1CHR
UPC
051712620277
Product Length/Depth
4.2 in
Product Height
2.3 in
Product Width
1.4 in
Product Weight
0.19 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
ARO European Pressure Equipment Directive (PED) 97 /23 EC
Amperage Rating
60 A
Impulse withstand voltage
10 kA RMS symmetrical
Interrupt rating
10 kAIC
Short-circuit rating
10 kA RMS symmetrical
Torque rating
50 lb-in maximum
Voltage rating
250 V
Color
Black
Conductor material rated for
Both
Conductor type
Stranded
Fuse type
Class K Class H
Number of Poles
Single-pole
Operating temperature - max
120 °C
Operating temperature - min
120 °C
Wire size
#2-14 AWG
Accessories
CVR(I)-RH-25060
Connection
Box lug
Mounting method
DIN rail Panel
Special features
Box Lugs with Hex Screws
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Bussmann series Fuseology
Eaton Specification Sheet - HM25060-1CHR
Feature → Business Impact → Application: The HM25060-1CHR uses Box Lugs with Hex Screws for secure terminations, reducing the risk of loose connections and new-software reworks in high-vibration environments, which translates to higher uptime on automated lines and safer panel enclosures. Application: Control panels in manufacturing automation benefit from quicker wiring and robust torque reliability, enabling faster commissioning and reduced field service time. Feature → Business Impact → Application: The device supports 60 A at 250 V with a 10 kA RMS impulse rating and 10 kAIC interrupt rating, delivering strong fault tolerance and protection for motor starters and drives, improving machine safety and compliance. Application: Drive and motor control panels in packaging and material handling benefit from dependable short-circuit protection with predictable trip behavior. Feature → Business Impact → Application: Stranded conductors up to #2-14 AWG and 120 °C operating conditions enable versatile wiring in harsh environments, reducing rework and expanding compatibility with mixed conductor types. Application: Industrial automation cabinets requiring mixed wiring for sensors and power feeds can rely on consistent performance without compromising reliability. Feature → Business Impact → Application: DIN rail and panel mounting offer flexible installation and retrofit options, lowering installation time and enabling modular protection strategies across large control architectures. Application: Large control rooms and process panels can scale protection blocks alongside expanding I/O and power distribution networks. Feature → Business Impact → Application: RoHS compliance and PED certification provide regulatory assurance for global deployments, helping prevent compliance delays and enabling cross-border sales. Application: Machinery and equipment used in automotive, packaging, and process industries can meet stringent European directives with minimal extra documentation.
Get a Quick Quote for a Eaton HM25060-1CHR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HM25060-1CHR?
Enquire Now
FAQs
The HM25060-1CHR mounts on standard DIN rails and can also be panel-mounted as needed. It uses box lugs with hex screws for secure terminations, accepting #2-14 AWG stranded conductors. Verify rail width compatibility and torque requirements (50 lb-in maximum) to ensure a reliable, vibration-resistant connection and quick, repeatable installations.
This unit is rated for 60 A at 250 V and provides a 10 kA RMS impulse withstand with a 10 kAIC interrupt rating. It supports Class K and Class H fuses, enabling precise protection for varying fault conditions. These specs translate to strong fault tolerance in automation panels and motor control circuits while maintaining selectivity and safety margins.
Yes. Its single-pole, 60 A protection with Box Lugs and DIN/panel mounting makes it ideal for automation panels, control cabinets, and motor control centers. Its rugged construction and 120 °C operating capability (temperature rating) support reliability in factory floors, with RoHS compliance helping meet environmental requirements.
The unit carries RoHS compliance and PED certification (European Pressure Equipment Directive 97/23/EC), signaling compliance with hazardous substances limits and European safety standards. These certifications are important for global deployments, ensuring regulatory alignment, reduced testing overhead, and smoother market access for machinery and equipment.
The mix of robust connections (box lugs with hex screws) and compatible wire ranges (#2-14 AWG) minimizes recurring maintenance due to loose connections and field wiring issues. Its compact DIN rail footprint supports scalable protection across multi-panel installations, contributing to lower lifecycle costs through reduced fault events, easier upgrades, and faster commissioning.
