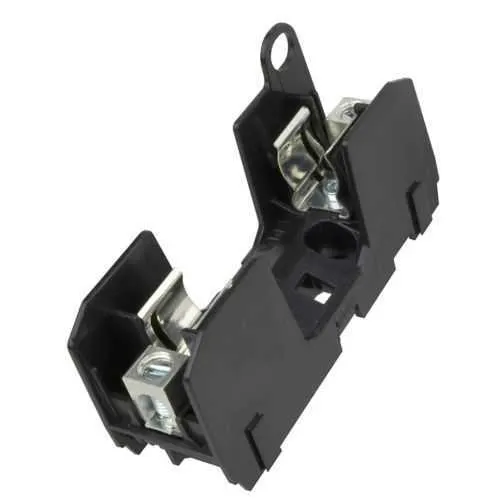

Eaton HM25060-1SCR HM modular fuse block - UL Listed
Part Number: HM25060-1SCR
Quick Summary
Eaton HM25060-1SCR HM modular fuse block is a 60 A, 250 V protection device designed for industrial control panels and electrical distribution. This compact, single-pole fuse block helps engineers simplify circuit protection without sacrificing reliability. Common challenges such as space constraints, corrosion risk, and inconsistent termination are mitigated by tin-plated aluminum terminals and a thermoplastic base. The design carries UL Listed and CSA Certified markings and RoHS compliance, providing confidence in regulatory compliance and material safety. For reliability-driven projects, this solution supports fast installation, improved maintainability, and long-term operational efficiency in harsh environments.
Product Information
Extended Description
HM25060-1SCR Eaton: Eaton Bussmann series HM modular fuse block, CR, 60 A, Single-pole, Screw, 75 °C, Tin-plated aluminum terminals, Thermoplastic base, 250 V
Product Name
Eaton Bussmann series HM modular fuse block
Catalog Number
HM25060-1SCR
UPC
051712697682
Product Length/Depth
4.2 in
Product Height
2.25 in
Product Width
4.24 in
Product Weight
0.15 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
UL Listed CSA Certified
Amperage Rating
60 A
Voltage rating
250 V
Conductor material rated for
Both
Material
Thermoplastic base Tin-plated aluminum terminals
Number of Poles
Single-pole
Operating temperature - max
120 °C
Operating temperature - min
-40 °C
Connection
Screw
Special features
CR
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Bussmann series Fuseology
Eaton Specification Sheet - HM25060-1SCR
Feature → Business Impact → Application: 60 A amperage rating enables robust protection for high-current control circuits, reducing the risk of nuisance trips and minimizing downtime in manufacturing lines. This translates to improved line uptime and safer electrical protection for critical loads in industrial automation environments. Feature → Application → The 250 V voltage rating supports common control panel combinations and motor circuits, enabling a compact fuse block solution in compact control cabinets. Feature → Application → Screw termination provides a secure, vibration-resistant connection ideal for panel installations in harsh facilities, lowering maintenance frequency and improving reliability. Feature → Business Impact → Tin-plated aluminum terminals offer corrosion resistance in damp or coastal environments, extending service life and reducing replacement costs over the equipment lifecycle. Feature → Application → Thermoplastic base provides chemical resistance and electrical insulation, supporting safer installations in mixed-use environments where exposure to oils and solvents is possible. Feature → Application → CR (special feature) enhances compatibility with Bussmann HM series and modular configurations, enabling scalable protection architectures for growing control systems. This orientation supports integration with existing Bussmann catalogs and reduces engineering time when upgrading protection blocks in legacy panels.
Get a Quick Quote for a Eaton HM25060-1SCR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HM25060-1SCR?
Enquire Now
FAQs
The HM25060-1SCR is a single-pole modular fuse block with screw terminals designed for standard electrical panels and control cabinets. It integrates with Bussmann HM series configurations, enabling straightforward replacement in existing installations. Its thermoplastic base and tin-plated aluminum terminals offer reliable vibration resistance and corrosion protection in typical industrial environments.
Key specs include a 60 A amperage rating and a 250 V voltage rating, with conductor material suitable for both solid and stranded conductors. The device operates from -40 °C to 120 °C, making it suitable for harsh industrial environments while maintaining reliable protection against overcurrent scenarios.
Yes. The HM25060-1SCR carries RoHS compliance for restricted substances, UL Listed and CSA Certified for safety and performance in industrial settings. The combination of robust materials (thermoplastic base, tin-plated aluminum terminals) and these certifications supports compliance-driven projects and reduces regulatory risk.
Best suited for electrical protection in control panels, power distribution, and automation cabinets where 60 A protection and 250 V operation are required. Its compact footprint and secure screw connections enable reliable protection of motors, drives, and centralized control circuits while facilitating scalable protection schemes in mid- to large-scale systems.
The fuse block’s rugged construction and secure screw termination reduce maintenance intervals by minimizing loose connections and overheating risks. RoHS compliance and quality certifications support long-term reliability, lowering replacement costs and downtime in production environments. The CR feature also aids in compatible upgrades without wholesale panel redesigns.
