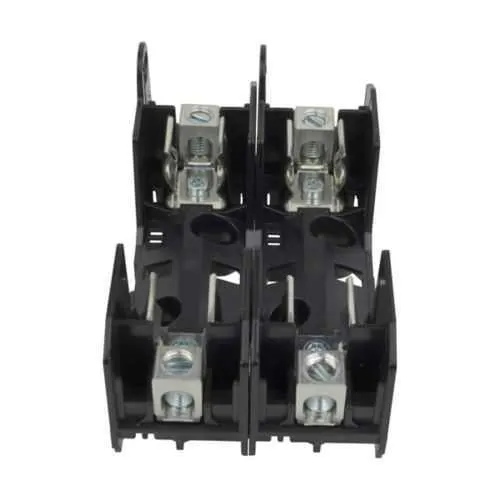

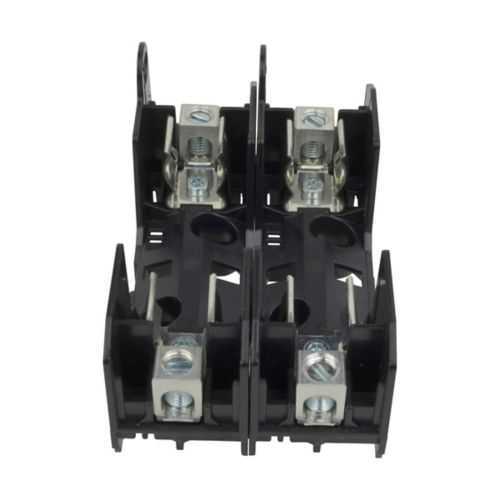

Eaton HM25060-2CR Modular Fuse Block - UL Listed
Part Number: HM25060-2CR
Quick Summary
HM25060-2CR is a modular fuse block designed to protect electrical circuits in control panels and automation equipment. Engineers often contend with nuisance trips, slow fuse replacement, and crowded panel spaces during maintenance. UL Listed, CSA Certified, and RoHS Compliant certifications help ensure regulatory alignment and safer procurement. Its compact 4.2 in length, 2.66 in width, and 2.24 in height footprint supports dense panel layouts, while the 35–60 A rating and 10 kAIC short-circuit capability deliver reliable protection without over- or under-selecting fuses. This combination reduces downtime and simplifies lifecycle cost management for industrial installations.
Product Information
Extended Description
HM25060-2CR Eaton: Eaton Bussmann series HM modular fuse block, CR, 35-60 A, Two-pole, Class H, Class K, 10 kAIC, 250 V
Product Name
Eaton Bussmann series HM modular fuse block
Catalog Number
HM25060-2CR
UPC
051712511346
Product Length/Depth
4.2 in
Product Height
2.24 in
Product Width
2.66 in
Product Weight
0.3 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
35-60A
Short-circuit rating
10 kA
Voltage rating
250 V
Number of Poles
Two-pole
Class
Class H Class K
Special features
CR
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Bussmann series Fuseology
Eaton Specification Sheet - HM25060-2CR
Feature: 35-60 A amperage range with 250 V rating and two poles. Business impact: Flexible protection for multiple loads without needing different blocks, enabling standardized panel design. Application: Control panels and motor drive configurations where consistent protection is required. Feature: Class H and Class K protection with CR special features. Business impact: Enhanced selectivity and compatibility with a broad set of Bussmann HM fuses, reducing nuisance trips and inventory variety. Application: Industrial automation cabinets requiring reliable fault protection across diverse loads. Feature: 10 kAIC short-circuit rating at 250 V. Business impact: Higher fault withstand improves system safety and protects feeders and downstream components. Application: High-energy industrial environments with potential large fault currents. Feature: RoHS compliant, UL Listed, CSA Certified. Business impact: Regulatory compliance and safer procurement streamline supplier qualification and reduce compliance risk. Application: Worldwide panel assembly for OEMs and end-users seeking certified protection. Feature: Compact footprint with 0.3 lb weight. Business impact: Easier panel densification and weight management, lowering installation time and shipping costs. Application: Space-constrained enclosures in machine building and process automation.
Get a Quick Quote for a Eaton HM25060-2CR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HM25060-2CR?
Enquire Now
FAQs
The HM25060-2CR accepts fuses from Eaton's Bussmann HM series designed for 35–60 A, 250 V applications. It provides a two-pole, high-current protection platform with a 10 kAIC short-circuit rating. Always confirm compatibility with HM-series cartridges and ensure the device rating matches the protected circuit requirements.
Install the HM25060-2CR as a two-pole modular block within the control panel, ensuring the circuit is de-energized before mounting. Verify the amperage rating (35–60 A) matches the protected load and connect conductors to the appropriate terminals. Follow the Eaton specification sheet HM25060-2CR for mounting dimensions and wiring guidelines.
The HM25060-2CR is UL Listed, CSA Certified, and RoHS Compliant. These certifications indicate compliance with safety, performance, and environmental standards, supporting regulatory approval, safer procurement, and easier supplier qualification for industrial installations.
The HM25060-2CR provides a 10 kAIC short-circuit rating at 250 V. This means it can withstand high fault currents without immediate catastrophic damage, protecting upstream devices and enabling safer, more reliable panel operation in high-energy environments.
Typical applications include control panels, motor drives, PLC cabinets, and other industrial automation equipment requiring reliable, compact protection. Its 2-pole design and CR feature support standardized protection schemes in automation cells, machine controls, and process equipment across manufacturing and facilities automation.
