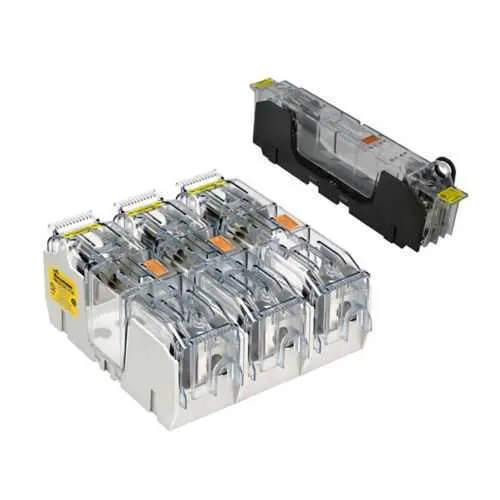

Eaton HM25060-3CHR Modular Fuse Block - PED 97/23 EC
Part Number: HM25060-3CHR
Quick Summary
Eaton HM25060-3CHR modular fuse block protects electrical panels and machines by housing Class K and Class H fuses. If you struggle with reliable box-lug connections or mounting on DIN rails, this unit offers a robust, easy-install solution. It carries RoHS compliance and PED 97/23 EC certifications, supporting global safety and regulatory requirements. Designed for control panels and industrial equipment, it integrates with #2-14 AWG stranded conductors and offers panel or DIN rail mounting to streamline installation and reduce wiring errors.
Product Information
Extended Description
HM25060-3CHR Eaton: Eaton Bussmann series HM modular fuse block, Box lugs with hex screws, 60 A, 3P, 120°C, Class K, Class H, CVR(I)-RH-25060, Black, 10 kA, 75 °C, Stranded, DIN rail, Panel, 250 V, #2-14 AWG
Product Name
Eaton Bussmann series HM modular fuse block
Catalog Number
HM25060-3CHR
UPC
051712620291
Product Length/Depth
4.2 in
Product Height
2.3 in
Product Width
4.1 in
Product Weight
0.57 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
ARO European Pressure Equipment Directive (PED) 97 /23 EC
Amperage Rating
60 A
Impulse withstand voltage
10 kA RMS symmetrical
Interrupt rating
10 kAIC
Short-circuit rating
10 kA RMS symmetrical
Torque rating
50 lb-in maximum
Voltage rating
250 V
Color
Black
Conductor material rated for
Both
Conductor type
Stranded
Fuse type
Class K Class H
Number of Poles
Three-pole
Operating temperature - max
120 °C
Operating temperature - min
120 °C
Wire size
#2-14 AWG
Accessories
CVR(I)-RH-25060
Connection
Box lug
Mounting method
Panel DIN rail
Special features
Box Lugs with Hex Screws
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Bussmann series Fuseology
Eaton Specification Sheet - HM25060-3CHR
Feature: 60 A, 3-pole protection supports heavier control circuits with minimal voltage drop. Business Impact: Improves uptime and safety margins in demanding machine environments. Application: Industrial PLC panels, motor control centers, and packaging lines. Feature: Box lugs with hex screws provide secure, vibration-resistant connections. Business Impact: Reduces maintenance downtime from loose terminations and arcing. Application: Panel-mounted or DIN rail assemblies in harsh environments. Feature: 250 V rating with 10 kA RMS interrupt and 10 kAIC capabilities deliver robust short-circuit protection. Business Impact: Limits fault energy and protects downstream devices, lowering downtime costs. Application: High-current control circuits and safety interlocks in automation skids. Feature: Three-pole configuration with Class K and Class H fuse compatibility enables modular protection for multi-phase systems. Business Impact: Simplifies replacement strategy and reduces spare part variety. Application: 3-phase industrial controls across conveyors, presses, and robotics cells. Feature: DIN rail and panel mounting compatibility plus 4.2 in L, 4.1 in W, 2.3 in H footprint. Business Impact: Flexible installation, faster retrofit, and compact footprint in crowded panels. Application: Control cabinets with limited space and mixed mounting needs. Feature: Conductor material rated for Both and stranded wire compatibility with #2-14 AWG. Business Impact: Broad wiring compatibility reduces rewiring cost and errors. Application: Control wiring for automation circuits and field connections. Feature: Accessory CVR(I)-RH-25060 enhances cover protection and safety. Business Impact: Improves personnel safety and reduces risk of accidental contact. Application: OEM equipment housings and panel builders seeking enhanced enclosure integrity.
