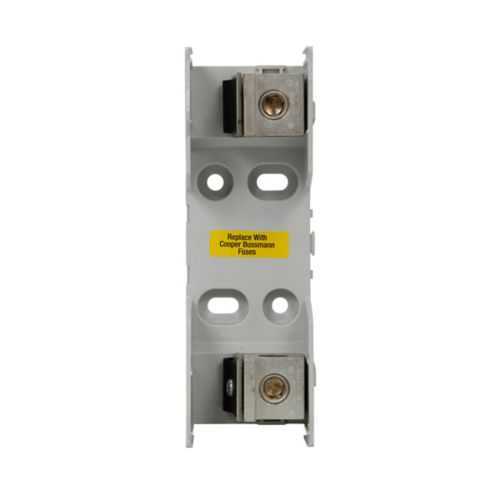

Eaton HM25200-1CR Modular Fuse Block - 10 kAIC
Part Number: HM25200-1CR
Quick Summary
The Eaton HM25200-1CR modular fuse block is a robust overcurrent protection device designed for industrial power circuits in control panels and switchgear. Engineers often wrestle with compact enclosures that require fast fuse replacement without compromising safety or traceability. This unit carries UL Listed, CSA Certified, and RoHS compliance marks, with Class H and Class K protection to cover diverse protection schemes. Its compact 8 in length and 2.61 in width support space-constrained panels, while the 10 kAIC rating delivers dependable fault-clearing performance at 250 V. Using this fuse block reduces panel footprint, simplifies maintenance, and aligns with common electrical standards, making it a practical choice for OEMs and maintenance teams.
Product Information
Extended Description
HM25200-1CR Eaton: Eaton Bussmann series HM modular fuse block, CR, 110-200 A, Single-pole, Class H, Class K, 10 kAIC, 250 V
Product Name
Eaton Bussmann series HM modular fuse block
Catalog Number
HM25200-1CR
UPC
051712387064
Product Length/Depth
8 in
Product Height
3.7 in
Product Width
2.61 in
Product Weight
0.86 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
110-200A
Short-circuit rating
10 kA
Voltage rating
250 V
Number of Poles
Single-pole
Class
Class H Class K
Special features
CR
HM25200-1CR~200 amp class H fuse holder 250V - 1 pol
HM25200-1CR~200 amp class H fuse holder 250V - 1 pol
Bussmann series Fuseology
Bussmann series Fuseology
Eaton Specification Sheet - HM25200-1CR
Feature: Amperage rating of 110-200A provides broad load protection. Business impact: supports high-current applications without frequent block changes, reducing downtime. Application: main power feeds and machine drives in control panels. Feature: Short-circuit rating of 10 kA ensures rapid fault isolation under high fault currents. Business impact: improves safety margins and reduces arc energy exposure. Application: industrial switchgear and distribution panels. Feature: Voltage rating of 250 V and single-pole design simplifies integration into standard 120/240 V control circuits. Business impact: streamlined installation and reduced wiring complexity. Application: industrial automation enclosures and panel boards. Feature: Class H and Class K compatibility offers flexible fuse selection for diverse protection curves. Business impact: enables precise coordination and cost-effective spare parts management. Application: OEM panel builds and retrofits. Feature: RoHS compliance, UL Listed, and CSA Certified provide regulatory assurance and supplier confidence. Business impact: lowers compliance risk and speeds procurement. Application: regulated industrial environments and global deployments. Feature: Compact footprint of 8 in x 2.61 in x 3.7 in and weight of 0.86 lb supports dense panel layouts. Business impact: increases usable enclosure space and reduces cabinet costs. Application: space-constrained control panels and machine assemblies.
Get a Quick Quote for a Eaton HM25200-1CR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HM25200-1CR?
Enquire Now
FAQs
The HM25200-1CR is a single-pole modular fuse block with a 110-200A rating and 250V capability, designed for compatibility within standard Eaton Bussmann HM family assemblies. It carries UL Listed and CSA Certified marks and RoHS compliance, and measures 8 in by 2.61 in by 3.7 in with a weight of 0.86 lb, making it suitable for space-constrained control panels.
Key specs include an amperage rating of 110-200A, a short-circuit rating of 10 kA, and a voltage rating of 250 V. It is a single-pole device with Class H and Class K compatibility, RoHS compliant, UL Listed, and CSA Certified, suitable for industrial protection schemes and diverse panel designs.
This fuse block excels in control panels, machine builds, and switchgear where space is at a premium and high-current protection is required. Its 110-200A range and 10 kAIC fault capability support main power feeds and protection of critical control circuits in harsh industrial environments.
The HM25200-1CR carries UL Listed and CSA Certified marks and RoHS compliance. These certifications support regulatory compliance in global markets, reduce supplier risk, and streamline procurement for compliant electrical protection components in industrial settings.
With a 10 kAIC short-circuit rating and RoHS/UL/CSA compliance, the HM25200-1CR reduces fault-related downtime and compliance risk. Its modular, single-pole design simplifies fuse replacement and stocking of spare parts, contributing to lower total cost of ownership in panel builds and ongoing maintenance.
