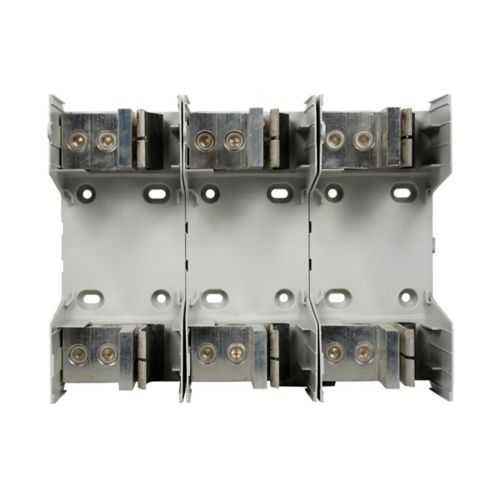

Eaton HM25600-3CR Modular Fuse Block - UL Listed
Part Number: HM25600-3CR
Quick Summary
Eaton HM25600-3CR modular fuse block provides reliable power protection for three-pole distribution in industrial panels. The design helps keep critical equipment safe from overcurrents while reducing fuse maintenance in harsh environments. Design teams often contend with limited panel space, frequent fuse changes, and inconsistent protection schemes; this unit delivers a compact footprint and standardized mounting for straightforward integration. It carries UL Listed and CSA Certified marks, along with RoHS compliance, ensuring regulatory alignment across global facilities. Rated for 450–600 A with a 10 kAIC short‑circuit capacity at 250 V, it supports demanding feeder protection without compromising accessibility. For procurement and maintenance, its Bussmann HM compatibility and clear labeling simplify replacement and service intervals, supporting uptime and cost reduction.
Product Information
Extended Description
HM25600-3CR Eaton: Eaton Bussmann series HM modular fuse block, CR, 450-600 A, Three-pole, Class H, Class K, 10 kAIC, 250 V
Product Name
Eaton Bussmann series HM modular fuse block
Catalog Number
HM25600-3CR
UPC
051712390972
Product Length/Depth
11.25 in
Product Height
6 in
Product Width
14.75 in
Product Weight
12.2 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
450-600A
Short-circuit rating
10 kA
Voltage rating
250 V
Number of Poles
Three-pole
Class
Class K Class H
Special features
CR
HM25600-3CR~600 amp class H fuse holder 250V - 3pole
HM25600-3CR~600 amp class H fuse holder 250V - 3pole
Class H(K), J and R Power distribution fuse block overview
Class H(K), J and R Power distribution fuse block overview
Eaton Specification Sheet - HM25600-3CR
Feature → Business Impact → Application: The three-pole HM modular fuse block provides multi-line protection in a single assembly, reducing wiring complexity and panel footprint while enabling fast deployment in switchgear and control cabinets. This translates to lower installation time and improved reliability for main distribution feeders in manufacturing lines. Feature → Business Impact → Application: With a 450–600 A amperage rating and a 10 kAIC short-circuit capacity, it tolerates fault events without sacrificial downtime, improving system availability in critical power circuits such as machine controls and feeder branches. Feature → Business Impact → Application: A 250 V rating and RoHS compliance simplify regulatory approvals and compatibility with standard industrial controls, reducing procurement risk and enabling smoother integration into existing control panels. Feature → Business Impact → Application: UL Listed and CSA Certified markings streamline vendor qualification and customer audits, while the CR designation supports quick fuse replacement using standard HM series components in Class H and Class K configurations. Feature → Business Impact → Application: The physical footprint of 11.25 in length, 14.75 in width and 6 in height, with a 12.2 lb weight, enables robust panel mounting in switchgear and compact control enclosures, supporting retrofits and new builds with predictable accommodation.
Get a Quick Quote for a Eaton HM25600-3CR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HM25600-3CR?
Enquire Now
FAQs
The HM25600-3CR is designed for three-pole mounting in standard electrical panels and switchgear. Begin by verifying panel clearance and mounting space, then secure the unit to a rigid backplane or DIN rail as appropriate. Connect three load conductors to the fuse holders, align with the HM series bus connections, and ensure fuse links are correctly seated for quick replacement during maintenance.
Key specs include a 450–600 A amperage rating, 10 kAIC short-circuit rating, and a 250 V operating voltage. The unit is RoHS compliant and UL Listed with CSA certification, making it suitable for heavy-duty power distribution and compliant panel assemblies in industrial environments.
Yes. The HM25600-3CR features CR designations and is compatible with Class H and Class K fuses, enabling flexible protection schemes across three poles. This compatibility reduces spare fuse variety, simplifies procurement, and supports straightforward replacement in field service.
Document UL Listed and CSA Certified marks, along with RoHS compliance, to satisfy most North American and international panel approvals. Maintain the product catalog entry, certification PDFs, and RoHS declarations from Eaton to streamline audits, supplier qualifications, and regulatory reviews.
The modular three-pole design with standard HM components enables rapid fuse replacements, reducing downtime during maintenance. The high short-circuit rating lowers risk of cascading failures, while RoHS and multi-certification support faster procurement and commissioning, contributing to lower lifecycle costs and improved equipment uptime in manufacturing or process environments.
